Komatsu PC210-10M0
Komatsu PC210-10M0

Komatsu PC210-10M0

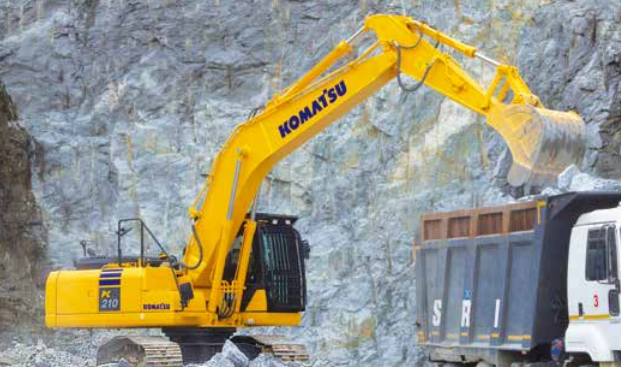

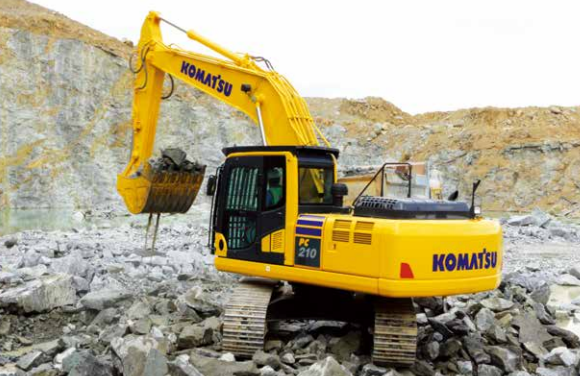

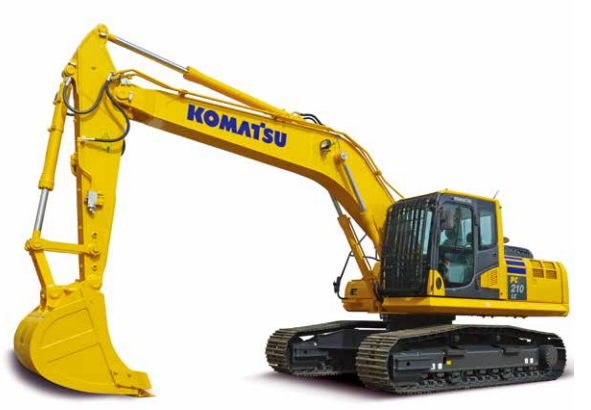

Komatsu PC210-10M0 Hydraulic Excavator is a versatile machine designed for a variety of applications in the heavy-duty sector. In road construction, it excels at excavating and grading, facilitating the development of durable roadways and infrastructure projects. Its power and precision make PC210-10M0 Hydraulic Excavator an excellent choice for utilities and pipeline installation, allowing for effective trench digging. The excavator also shines in dredging operations, where its impressive digging depth capabilities ensure efficient material removal. Additionally, Komatsu PC210-10M0 is well-suited for agricultural tasks, assisting in land preparation, irrigation installation, and various other farming applications.


Komatsu PC210-10M0 boasts key specifications that enhance its performance across various applications. PC210-10M0 Hydraulic Excavator features a 123 kW engine gross power, providing ample strength for demanding tasks. With an operating weight of 20,900 kg, this excavator offers stability and control during operation. Its bucket digging force ranges from 14,100 to 15,200 kg, ensuring effective material handling and excavation capabilities. Additionally, the excavator achieves a maximum digging depth of 6000 to 6620 mm, making Komatsu PC210-10M0 Hydraulic Excavator suitable for deep excavation tasks, whether in construction, utilities installation, or agricultural applications.


Komatsu PC210-10M0 Hydraulic Excavator is distinguished by several unique selling points that enhance its operational effectiveness. PC210-10M0 Hydraulic Excavator is powered by the Komatsu SAA6D107E-1 engine, a turbocharged, water-cooled, 6-cylinder powerhouse designed with direct injection technology for robust performance and fuel efficiency, ensuring reliability on any job site. The excavator features an innovative hydraulic mechanical intelligence system that optimizes hydraulic flow and enhances overall performance, contributing to improved operational efficiency. Additionally, its advanced hydraulic system, which includes two axial piston motors with parking brake-type travel motors and swing holding brake-type swing motors, offers exceptional maneuverability and control, allowing for precise movements across various applications, from construction to agriculture and utilities installation.

Komatsu PC210-10M0 Key Specifications

Komatsu PC210-10M0 Features

Engine

Model Komatsu SAA6D107E-1
Type Water-cooled, 4-cycle, direct injection, Turbocharged, aftercooled
Engine Gross Power 165 hp(123 kw) @ 2000 rpm
Displacement 6.69 L

Undercarriage

No. of Shoes 45
No. of Upper Rollers 2
No. of Bottom Rollers 7
Track Show Width 600 mm

Swing System

Max. Swing Speed 12.4 rpm
Min. Swing Radius 3040-3080 mm

Drive and Brake

Max. Travel Speed 5.5 km/h
Gradeability 70%(35°)

Hydraulic System

Main Pump Type Variable displacement piston type
Main Pump max. Oil flow 475 lpm
Swing Circuit 28.9 MPa
Travel Circuit 37.3 MPa

Refill Capacity

Fuel Tank Capacity 400 L
Engine Oil and Filter 23.1 L
Hydraulic Tank Capacity 135 L

Weight and Ground Pressure

Operating Weight 20900-23100 kg
Ground Pressure 51.9 kPa

Dimensions

Overall Length 9530-9600 mm
Overall Height 2970-3190 mm
Bucket Capacity 0.85-1.70 m³
Track Gauge 2200-2380 mm
Ground Clearance 440 mm

Working Ranges

Max. Dumping Height 6960-7110 mm
Max. Digging Depth 6000-6620 mm
Max. Vertical Wall Digging Depth 5080-5980 mm
Max. Digging Reach 9390-9875 mm
Max. Digging Reach at Ground 9195-9700 mm
Arm Length 2410-2925 mm
Bucket Digging Force 138 kN
Arm Crowding Force 127 kN
