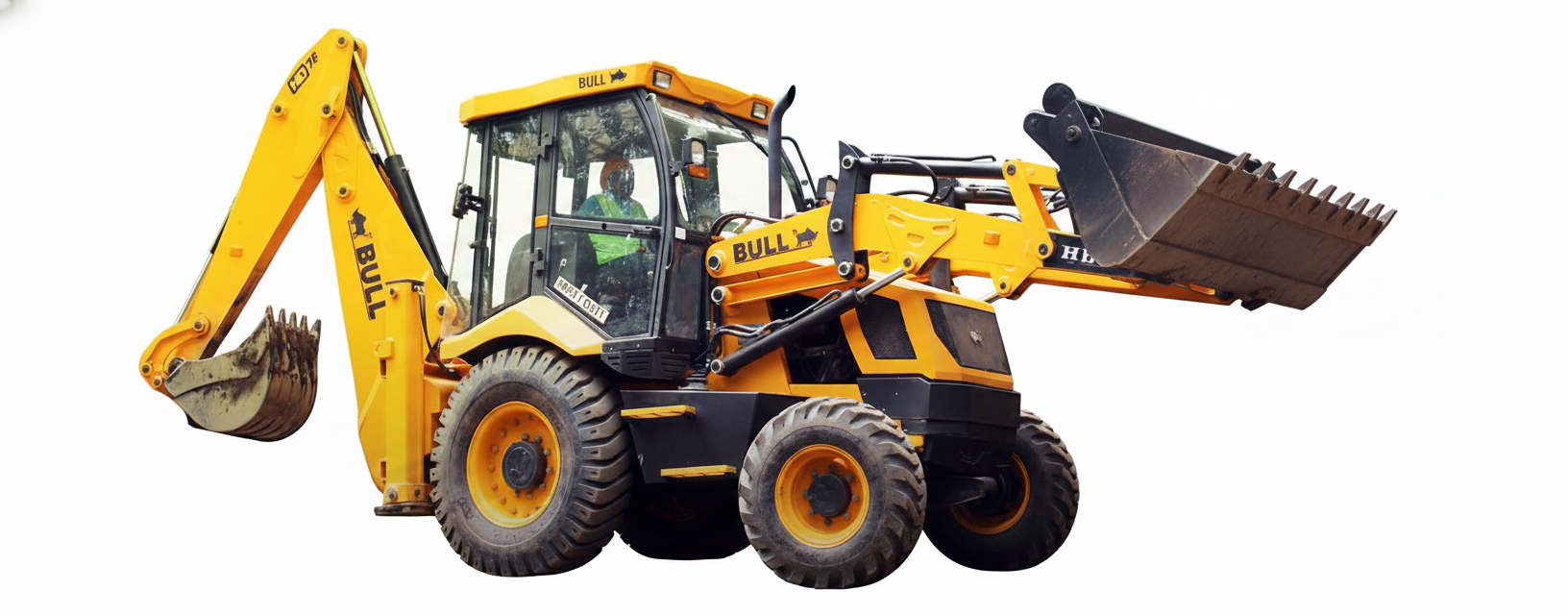

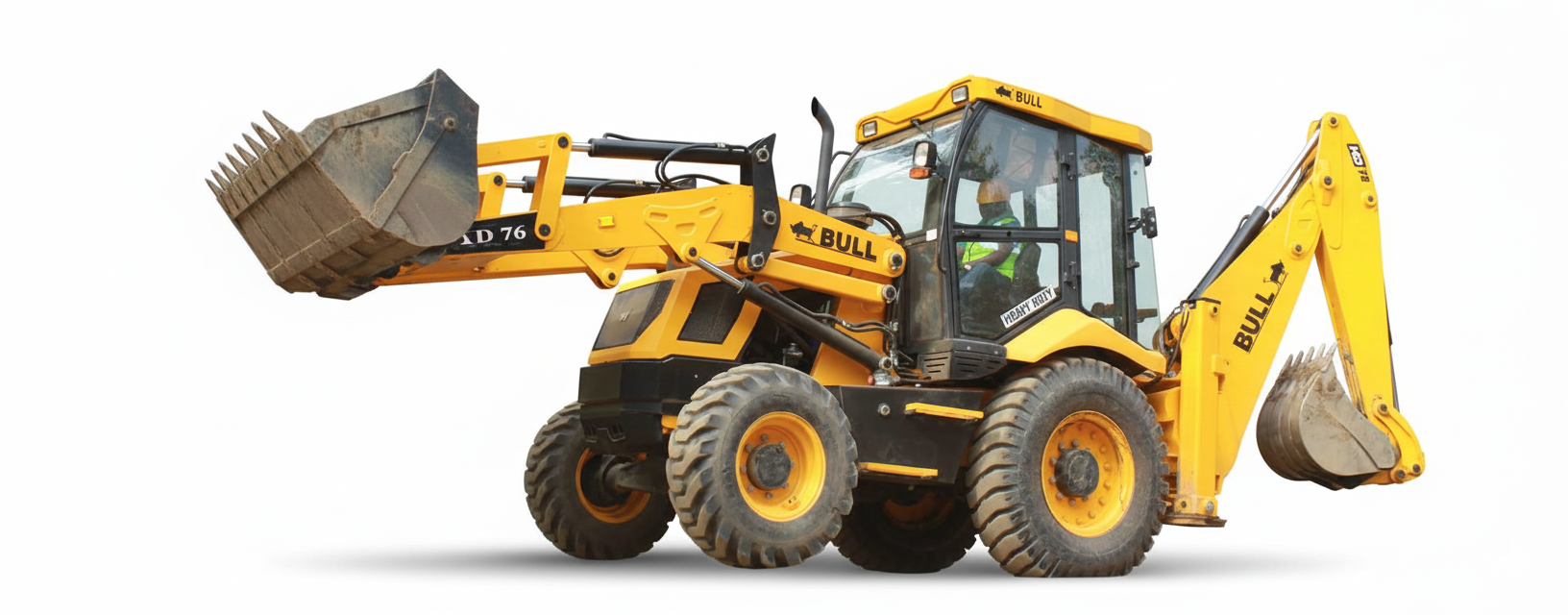

Bull HD 76 4WD

Bull HD 76 4WD Backhoe Loader is highly versatile and effective across multiple demanding applications. It plays a key role in road maintenance, performing tasks like pothole repairs, asphalt removal, and grading for highway upkeep. In demolition, its strong arm loader breakout force and attachments make it efficient in tearing down structures and clearing debris. Its rugged 4WD system makes HD 76 4WD Backhoe Loader ideal for snow removal, allowing it to clear heavy snow in challenging winter conditions. Additionally, in mining and quarrying, its superior breakout force and reliable transmission ensure smooth rock and mineral extraction, loading, and transportation. Bull HD 76 4WD is equipped with a 76 HP engine, providing the necessary power for various tasks. Its loader bucket capacity of 0.27 m³ ensures efficient material handling, while the arm loader breakout force of 5,251 kgf delivers strong performance in tough conditions. Additionally, the HD 76 4WD Backhoe Loader's dump height of 2.96 meters allows for effective unloading at elevated levels, enhancing its versatility and operational efficiency. Bull HD 76 4WD Backhoe Loader is a robust and versatile machine designed for a variety of demanding applications. HD 76 4WD Backhoe Loader is equipped with a Kirloskar 4R 1040, TC BS-BS-III Diesel Engine, which delivers high torque and enhanced fuel efficiency while meeting BS-III standards for reduced emissions and optimal performance. This backhoe loader features a Carraro Synchro Shuttle Transmission with an integral torque converter, ensuring smooth and reliable gear shifts that provide excellent traction and control on challenging terrains. The Bull HD 76 4WD also boasts a multipurpose 6-in-1 bucket, enabling the operator to perform various tasks, including digging, leveling, grabbing, and loading, thereby increasing operational efficiency. Additionally, the power steering system enhances ease of handling, reduces operator fatigue, and ensures smooth, precise control during extended hours of operation.

Bull HD 76 4WD Features

Engine
Make	Kirloskar	Model	4R 1040
Engine Gross Power	76 HP(56.7 KW) @ 2200 rpm	Max. Torque	300 Nm @ 1500 rpm

Electrical System
Battery	12 V Battery system (130 Ah)

Transmission
Max. Forward Speed	40 km/h	Max. Reverse Speed	9.3 km/h
Transmission Type	Carraro synchro-shuttle transmission with integral torque converter

Steering System
Steering Type	Power steering

Tyres
Front Tyre Size	9.00x16-16 PR(2WD), 12.5/80x18-12 PR (4WD)	Rear Tyre Size	16.9x28-12 PR, 14x25-20 PR

Hydraulic System
Main Pump Flow	113 lpm @ 2200 rpm

Dimensions
Dump Height	2.93-2.96 m	Load over Height	3.39 m
Reach at Ground	1.47 m	Max. Reach at Full Height	1.28-1.42 m
Arm Loader Break-out Force	5251 kgf	Loader Bucket Capacity	1.1 m³
Max. Digging Depth	None	Bucket Pin Height	3.61 m
Reach at Full Height (Bucket Dumped)	0.89-1.1 m	Below Ground Level Dig Depth	0.08-0.1 m
Rollback at Ground	49°-50°	Bucket Loader Break-out Force	8183 kgf
Max. Working Height	5.92-6.77 m	Max. Load over Height	4.14-5.02 mm
Bucket Rotation Power	188°	Side Reach to Center Line of Machine	6.81-7.91 m
Dipper Tearout Force (Arm Crowding Force)	3150 kgf

Engine
Make	Kirloskar
Model	4R 1040
Engine Gross Power	76 HP(56.7 KW) @ 2200 rpm
Max. Torque	300 Nm @ 1500 rpm

Electrical System
Battery	12 V Battery system (130 Ah)

Transmission
Max. Forward Speed	40 km/h
Max. Reverse Speed	9.3 km/h
Transmission Type	Carraro synchro-shuttle transmission with integral torque converter

Steering System
Steering Type	Power steering

Tyres
Front Tyre Size	9.00x16-16 PR(2WD), 12.5/80x18-12 PR (4WD)
Rear Tyre Size	16.9x28-12 PR, 14x25-20 PR

Hydraulic System
Main Pump Flow	113 lpm @ 2200 rpm

Dimensions
Dump Height	2.93-2.96 m
Load over Height	3.39 m
Reach at Ground	1.47 m
Max. Reach at Full Height	1.28-1.42 m
Arm Loader Break-out Force	5251 kgf
Loader Bucket Capacity	1.1 m³
Max. Digging Depth	None
Bucket Pin Height	3.61 m
Reach at Full Height (Bucket Dumped)	0.89-1.1 m
Below Ground Level Dig Depth	0.08-0.1 m
Rollback at Ground	49°-50°
Bucket Loader Break-out Force	8183 kgf
Max. Working Height	5.92-6.77 m
Max. Load over Height	4.14-5.02 mm
Bucket Rotation Power	188°
Side Reach to Center Line of Machine	6.81-7.91 m
Dipper Tearout Force (Arm Crowding Force)	3150 kgf
