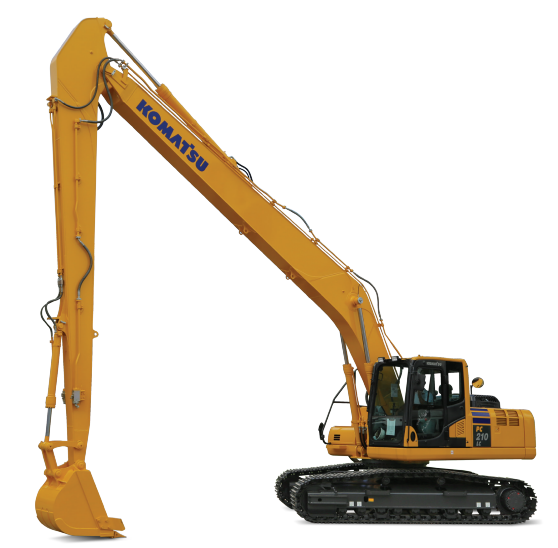

Komatsu PC210LC-10M0SLF
Komatsu PC210LC-10M0SLF

Komatsu PC210LC-10M0SLF

Komatsu PC210LC-10M0 SLF Hydraulic Excavator is designed for versatility and durability across a range of demanding applications. In waste management, its deep digging capabilities and precise handling make PC210LC-10M0 SLF Hydraulic Excavator well-suited for managing waste and recycling operations. For forestry tasks, this excavator efficiently performs land preparation, brush clearing, and log handling. It also excels in marine construction, as its robust build supports coastal projects, shoreline protection, and dredging in rugged marine environments. Additionally, Komatsu PC210LC-10M0 SLF is effective for snow removal, leveraging its powerful engine and efficient hydraulic system to clear large volumes of snow and maintain clear pathways during winter.


Komatsu PC210LC-10M0 boasts a 123 kW engine and an operating weight between 24,500 to 25,100 kg, making PC210LC-10M0 SLF Hydraulic Excavator powerful and versatile for a range of heavy-duty applications. With a bucket capacity of 0.50 m³ and a maximum digging depth of 11,620 mm, it’s well-suited for tasks like waste management, forestry, marine construction, and even snow removal. Its impressive digging depth and robust build allow Komatsu PC210LC-10M0 SLF Hydraulic Excavator to efficiently handle demanding conditions, providing reliability and performance across various industries.


Komatsu PC210LC-10M0 Hydraulic Excavator stands out for its powerful Komatsu SAA6D107E-1 engine—a 6-cylinder, water-cooled, turbocharged diesel with direct injection that combines high fuel efficiency with reliable power. Its advanced hydraulic system utilizes a variable displacement piston-type main pump, optimizing hydraulic flow for precise digging and lifting, essential for efficient job performance. The enhanced swing system with a hydrostatic drive and planetary gear-type swing reduction delivers smooth, controlled swings, providing exceptional maneuverability, especially in tight or difficult spaces.

Komatsu PC210LC-10M0SLF Key Specifications

Komatsu PC210LC-10M0SLF Features

Engine

Model Komatsu SAA6D107E-1
Type Water-cooled, 4-cycle, direct injection, Turbocharged, aftercooled
Engine Gross Power 165 hp(123 kw) @ 2000 rpm
Displacement 6.69 L

Undercarriage

No. of Shoes 49
No. of Upper Rollers 2
No. of Bottom Rollers 9
Track Shoe Width 600 mm

Swing System

Max. Swing Speed 12.4 rpm
Min. Swing Radius 4040 mm

Drive and Brake

Max. Travel Speed 5.5 km/h
Gradeability 70%(35°)

Hydraulic System

Main Pump Type Variable displacement piston type
Main Pump max. Oil Flow 475 lpm
Swing Circuit 28.9 MPa
Travel Circuit 37.3 MPa

Refill Capacity

Fuel Tank Capacity 400 L
Engine Oil and Filter 23.1 L
Hydraulic Tank Capacity 135 L

Weight and Ground Pressure

Operating Weight 24500 kg
Ground Pressure 0.52 kg/cm²

Dimensions

Overall Length 12540 mm
Overall Height 3090 mm
Bucket Capacity 0.50 m³

Working Ranges

Max. Dumping Height 11055 mm
Max. Digging Depth 11620 mm
Max. Digging Reach 15160 mm
Max. Digging Reach at Ground 15030 mm
Boom Length 8.6 m
Arm Length 6.4 m
