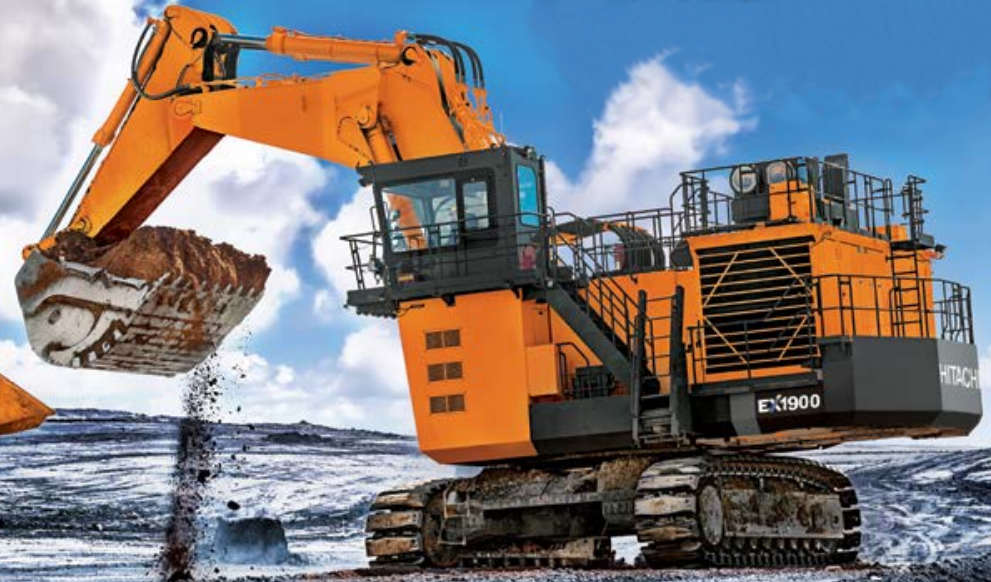

Tata Hitachi EX 1900-6 Mining Excavator is a powerhouse designed for the toughest mining applications. This excavator excels in heavy-duty tasks, including coal overburden, limestone mining, iron ore operations, and granite and marble quarries. With a blend of power, efficiency, and advanced features, the EX 1900-6 Mining Excavator is essential for modern mining and excavation projects. Its superior engineering ensures outstanding performance and reliability, making the Tata Hitachi EX 1900-6 an invaluable asset in the heavy machinery sector, designed to maximize productivity and minimize operational costs. Tata Hitachi EX 1900-6 is engineered for demanding mining applications, boasting an impressive engine gross power of 1,086 HP for robust performance. Weighing 191,000 KG, EX 1900 - 6 Mining Excavator ensures excellent stability and operational efficiency. With a bucket capacity of 8.8 to 12.0 m³ and a bucket digging force of 76,890 kgf, Tata Hitachi Ex 1900-6 excels in material handling, making it perfect for tough tasks. Its maximum digging depth of 5,920 mm enhances versatility, ensuring efficient operations in heavy-duty environments. Tata Hitachi EX 1900 - 6 Mining Excavator stands out with its powerful performance, featuring an advanced engine pump control system that optimizes hydraulic flow for enhanced productivity. This system increases uptime and reduces operating costs, delivering exceptional value. The electric joystick control lever ensures precise, effortless operation, allowing for easy navigation of challenging tasks and minimizing fatigue during extended hours. Additionally, the strategically positioned oil cooler enhances the overall reliability of Tata Hitachi EX 1900 - 6 by improving the cooling system, making the EX 1900 - 6 Mining Excavator a reliable choice for heavy-duty operation.
Engine | |||
---|---|---|---|
Model | Cummins QSKTA38-CE | Type | 4 cycle |
Engine Gross Power | 1086 HP @ 1800 rpm | Max. Torque | 4725 Nm @ 1300 rpm |
|
Undercarriage | |||
---|---|---|---|
No. of Shoes | 49 | No. of Upper Rollers | 3 |
No. of Bottom Rollers | 8 | Track Shoe Width | 800 mm |
Swing System | |||
---|---|---|---|
Max. Swing Speed | 4.7 rpm | Min. Swing Radius | 7140 mm |
Drive and Brake | |||
---|---|---|---|
Max. Travel Speed | 2.8 km/h | Gradeability | 30°(58%) |
Hydraulic System | |||
---|---|---|---|
Main Pump Type | 6 variable-displacement, axial piston pumps for front attachment, travel and swing | Main Pump max. Oil Flow | 6x335 lpm |
Swing Circuit | 300 kgf/cm² | Travel Circuit | 300 kgf/cm² |
Refill Capacity | |||
---|---|---|---|
Fuel Tank Capacity | 4140 L | Engine Oil and Filter | 166 L |
Hydraulic System | 2200 L | Hydraulic Tank Capacity | 1050 L |
Weight and Ground Pressure | |||
---|---|---|---|
Operating Weight | 190000-192000 kg | Ground Pressure | 1.86-1.88 kgf/cm² |
Dimensions | |||
---|---|---|---|
Bucket Capacity | 12.0 m³ |
Working Ranges | |||
---|---|---|---|
Max. Dumping Height | 9060 mm | Max. Digging Depth | 8180 mm |
Max. Vertical Wall Digging Depth | 5520 mm | Max. Digging Reach | 15250 mm |
|
Engine | |
---|---|
Model | Cummins QSKTA38-CE |
Type | 4 cycle |
Engine Gross Power | 1086 HP @ 1800 rpm |
Max. Torque | 4725 Nm @ 1300 rpm |
Displacement | 37.8 L |
|
Undercarriage | |
---|---|
No. of Shoes | 49 |
No. of Upper Rollers | 3 |
No. of Bottom Rollers | 8 |
Track Shoe Width | 800 mm |
Swing System | |
---|---|
Max. Swing Speed | 4.7 rpm |
Min. Swing Radius | 7140 mm |
Drive and Brake | |
---|---|
Max. Travel Speed | 2.8 km/h |
Gradeability | 30°(58%) |
Hydraulic System | |
---|---|
Main Pump Type | 6 variable-displacement, axial piston pumps for front attachment, travel and swing |
Main Pump max. Oil Flow | 6x335 lpm |
Swing Circuit | 300 kgf/cm² |
Travel Circuit | 300 kgf/cm² |
Refill Capacity | |
---|---|
Fuel Tank Capacity | 4140 L |
Engine Oil and Filter | 166 L |
Hydraulic System | 2200 L |
Hydraulic Tank Capacity | 1050 L |
Weight and Ground Pressure | |
---|---|
Operating Weight | 190000-192000 kg |
Ground Pressure | 1.86-1.88 kgf/cm² |
Dimensions | |
---|---|
Bucket Capacity | 12.0 m³ |
Working Ranges | |
---|---|
Max. Dumping Height | 9060 mm |
Max. Digging Depth | 8180 mm |
Max. Vertical Wall Digging Depth | 5520 mm |
Max. Digging Reach | 15250 mm |
Max. Digging Reach at Ground Level | 14770 mm |
Boom Length | 8.3 m |
Arm Length | 3.6 m |
Bucket Digging Force | 68 400 kgf |
Arm Crowding Force | 63200 kgf |
|
