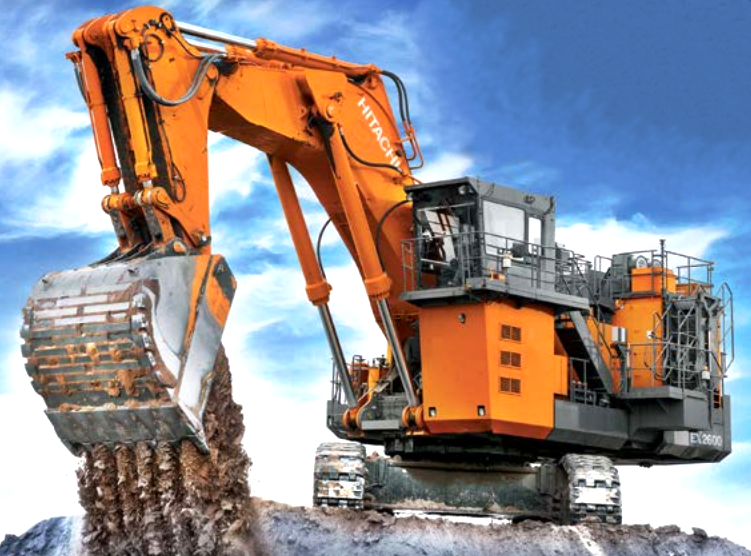

Tata Hitachi EX 2600 - 7 Mining Excavator is a pinnacle of engineering excellence in heavy machinery, perfectly suited for coal overburden, limestone mining, iron ore operations, and granite and marble quarries. This robust and efficient machine delivers exceptional power, advanced features, and superior performance in demanding environments, making it an essential tool for large-scale mining and excavation projects. Trust the Tata Hitachi EX 2600 - 7 to elevate your operational efficiency and productivity while minimizing costs. Tata Hitachi EX 2600 - 7 boasts a remarkable engine gross power of 1500 HP, designed to tackle the most demanding tasks with unparalleled efficiency. With an operating weight of 258,000 to 260,000 KG, it ensures robust stability, making it the ideal choice for heavy-duty applications. EX 2600 - 7 Mining Excavator features a substantial bucket capacity of 17.0 m³ for efficient material handling, complemented by a powerful bucket digging force of 89,000 to 96,200 kgf, enabling easy penetration of tough materials. Its maximum digging depth of 3,720 to 3,960 mm enhances its versatility, ensuring optimal performance in various mining and excavation tasks. Tata Hitachi EX 2600 - 7 Mining Excavator features a large and efficient bucket designed for optimal material handling and productivity. The one-lever leveling control enhances operational efficiency, enabling smoother and quicker adjustments that boost overall productivity during excavation tasks. Maintenance is streamlined with a centralized filter system, simplifying inspections and reducing downtime. This innovative feature allows for quicker upkeep, enabling teams to focus more on productivity and less on maintenance, ensuring the excavator operates at peak performance in demanding environments.
Engine | |||
---|---|---|---|
Model | Cummins QSKTA50-CE | Type | 4 cycle |
Engine Gross Power | 1500 HP @ 1800 rpm | Max. Torque | 6570 Nm @ 1400 rpm |
|
Undercarriage | |||
---|---|---|---|
No. of Shoes | 39 | No. of Upper Rollers | 3 |
No. of Bottom Rollers | 8 | Track Shoe Width | 1000 mm |
Swing System | |||
---|---|---|---|
Max. Swing Speed | 3.8 rpm |
Drive and Brake | |||
---|---|---|---|
Max. Travel Speed | 2.3 km/h | Gradeability | 30°(58%) |
Hydraulic System | |||
---|---|---|---|
Main Pump Type | 6 variable-displacement, axial piston pumps for front attachment, travel and swing | Main Pump max. Oil Flow | 4x375 lpm, 2x425 lpm |
Swing Circuit | 280 kgf/cm² | Travel Circuit | 300 kgf/cm² |
Refill Capacity | |||
---|---|---|---|
Fuel Tank Capacity | 5300 L | Engine Oil and Filter | 150 L |
Hydraulic System | 3170 L | Hydraulic Tank Capacity | 1320 L |
Weight and Ground Pressure | |||
---|---|---|---|
Operating Weight | 248000-254000 kg | Ground Pressure | 1.84-1.89 kgf/cm² |
Dimensions | |||
---|---|---|---|
Bucket Capacity | 17 m³ |
Working Ranges | |||
---|---|---|---|
Max. Dumping Height | 10100 mm | Max. Digging Depth | 8250 mm |
Max. Vertical Wall Digging Depth | 4110 mm | Max. Digging Reach | 16600 mm |
|
Engine | |
---|---|
Model | Cummins QSKTA50-CE |
Type | 4 cycle |
Engine Gross Power | 1500 HP @ 1800 rpm |
Max. Torque | 6570 Nm @ 1400 rpm |
Displacement | 50 L |
|
Undercarriage | |
---|---|
No. of Shoes | 39 |
No. of Upper Rollers | 3 |
No. of Bottom Rollers | 8 |
Track Shoe Width | 1000 mm |
Swing System | |
---|---|
Max. Swing Speed | 3.8 rpm |
Drive and Brake | |
---|---|
Max. Travel Speed | 2.3 km/h |
Gradeability | 30°(58%) |
Hydraulic System | |
---|---|
Main Pump Type | 6 variable-displacement, axial piston pumps for front attachment, travel and swing |
Main Pump max. Oil Flow | 4x375 lpm, 2x425 lpm |
Swing Circuit | 280 kgf/cm² |
Travel Circuit | 300 kgf/cm² |
Refill Capacity | |
---|---|
Fuel Tank Capacity | 5300 L |
Engine Oil and Filter | 150 L |
Hydraulic System | 3170 L |
Hydraulic Tank Capacity | 1320 L |
Weight and Ground Pressure | |
---|---|
Operating Weight | 248000-254000 kg |
Ground Pressure | 1.84-1.89 kgf/cm² |
Dimensions | |
---|---|
Bucket Capacity | 17 m³ |
Working Ranges | |
---|---|
Max. Dumping Height | 10100 mm |
Max. Digging Depth | 8250 mm |
Max. Vertical Wall Digging Depth | 4110 mm |
Max. Digging Reach | 16600 mm |
Max. Digging Reach at Ground Level | 16050 mm |
Boom Length | 8.7 m |
Arm Length | 3.9 m |
Bucket digging Force | 77500 kgf |
Arm Crowding Force | 78000 kgf |
|
