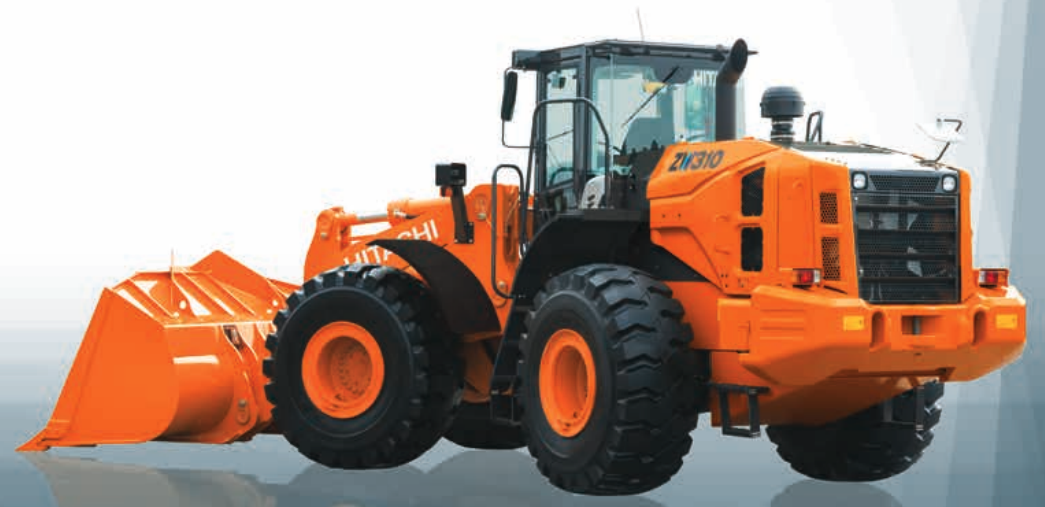

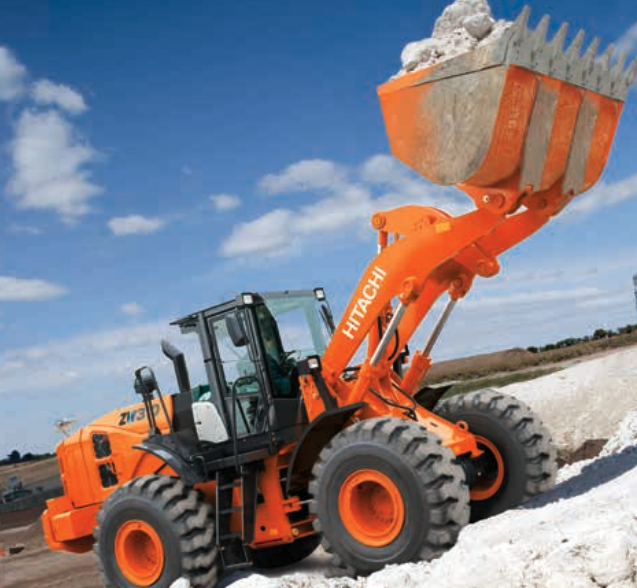

Tata Hitachi ZW 310-5A

The Tata Hitachi ZW 310-5A Wheel Loader is built for increased productivity in many applications like construction, waste management, agriculture, landscaping, and road construction. For businesses, this wheel loader offers strong performance with high fuel efficiency, making the ZW 310-5A Wheel Loader the perfect choice. Its powerful specifications, including an impressive engine, smooth hydraulic operation, and maximum lifting height, ensure unmatched durability and powerful performance in challenging environments. The Tata Hitachi ZW 310-5A excels with a strong and superior 320 HP engine and an operating weight range of 22,410 KG to 22,860 KG. This wheel loader offers an impressive bucket capacity ranging from 3.4 m³ to 4.5 m³, assuring strong and reliable performance. With a maximum operating height range of 5,775 mm to 6,555 mm, it delivers robust performance across various tasks. The Tata Hitachi ZW 310-5A Wheel Loader is designed with innovative features like the active engine control system, which helps achieve economical operation. The speed-responding clutch cut-off system allows for smooth and efficient operation, with adjustable clutch cut-off timing enhancing performance. Additionally, the Shift Change Delay Mode prevents an excessive rise in travel speed, contributing to the overall efficiency and safety of the machine.

Tata Hitachi ZW 310-5A Features

Engine
Model	CUMMINS QSM11	Engine Gross Power	320 HP(239 KW) @ 1800 rpm
Max. Torque	1478 Nm @ 1000-1400 rpm	Displacement	10.82 L

Electrical System
Battery	2x12 V

Transmission
Max. Forward Speed	34.7 km/h	Max. Reverse Speed	34.7 km/h
Transmission Type	Torque converter, countershaft type powershift with computer-controlled automatic shift and manual shift features included	Torque Converter	Three element, single stage, single phase

Steering System
Steering Type	Articulated frame steering	Turning Radius Outside of Wheels	6270 mm

Drive and Brake
Service Brake	Inbound mounted fully hydraulic 4 wheel wet disc brake.	Parking Brake	spring applied, hydraulically released, located in transmission

Tyres
Tyre Size	26.5-25-16PR

Hydraulic System
Main Pump Type	Variable displacement axial piston pump	Main Pump Flow Rate	323 lpm @ 2000 rpm
Raise Time	5.8 Sec.	Dump Time	1.4 Sec.
Lower Time	3.0 Sec.	Total Hydraulic Cycle Time	10.2 Sec.

Axles
Front Axle Type	Fixed to the front frame	Rear Axle Type	Trunnion support

Refill Capacity
Fuel Tank Capacity	370 L	Engine Oil Capacity	34 L
Transmission Oil Capacity	52 L	Axle Oil Capacity	96 L
Hydraulic Oil Capacity	123 L

Operating Weight
Operating Weight	22410 - 22860 kg

Dimensions
Static Tipping Load	14100 - 17280 kg	Overall Length	8790 - 9240 mm
Bucket Capacity	3.4 - 4.5 m³	Loader Bucket Break-out Force	17240 - 20600 kgf
Max. Digging Depth	95 - 125 mm	Wheelbase	3450 mm
Ground Clearance	505 mm

Engine
Model	CUMMINS QSM11
Engine Gross Power	320 HP(239 KW) @ 1800 rpm
Max. Torque	1478 Nm @ 1000-1400 rpm
Displacement	10.82 L

Electrical System
Battery	2x12 V

Transmission
Max. Forward Speed	34.7 km/h
Max. Reverse Speed	34.7 km/h
Transmission Type	Torque converter, countershaft type powershift with computer-controlled automatic shift and manual shift features included
Torque Converter	Three element, single stage, single phase

Steering System
Steering Type	Articulated frame steering
Turning Radius Outside of Wheels	6270 mm

Drive and Brake
Service Brake	Inbound mounted fully hydraulic 4 wheel wet disc brake.
Parking Brake	spring applied, hydraulically released, located in transmission

Tyres
Tyre Size	26.5-25-16PR

Hydraulic System
Main Pump Type	Variable displacement axial piston pump
Main Pump Flow Rate	323 lpm @ 2000 rpm
Raise Time	5.8 Sec.
Dump Time	1.4 Sec.
Lower Time	3.0 Sec.
Total Hydraulic Cycle Time	10.2 Sec.

Axles
Front Axle Type	Fixed to the front frame
Rear Axle Type	Trunnion support

Refill Capacity
Fuel Tank Capacity	370 L
Engine Oil Capacity	34 L
Transmission Oil Capacity	52 L
Axle Oil Capacity	96 L
Hydraulic Oil Capacity	123 L

Operating Weight
Operating Weight	22410 - 22860 kg

Dimensions
Static Tipping Load	14100 - 17280 kg
Overall Length	8790 - 9240 mm
Bucket Capacity	3.4 - 4.5 m³
Loader Bucket Break-out Force	17240 - 20600 kgf
Max. Digging Depth	95 - 125 mm
Wheelbase	3450 mm
Ground Clearance	505 mm
