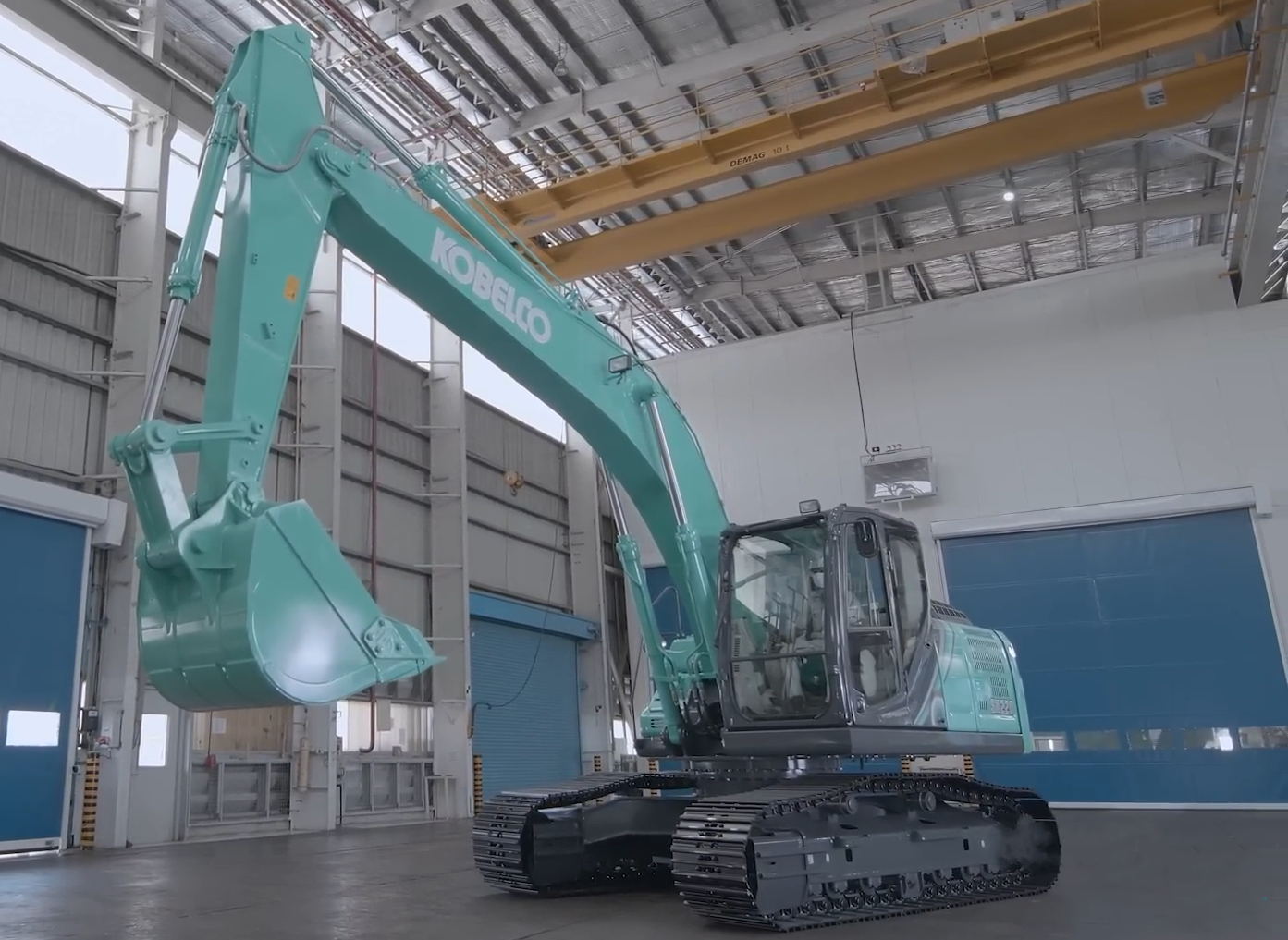

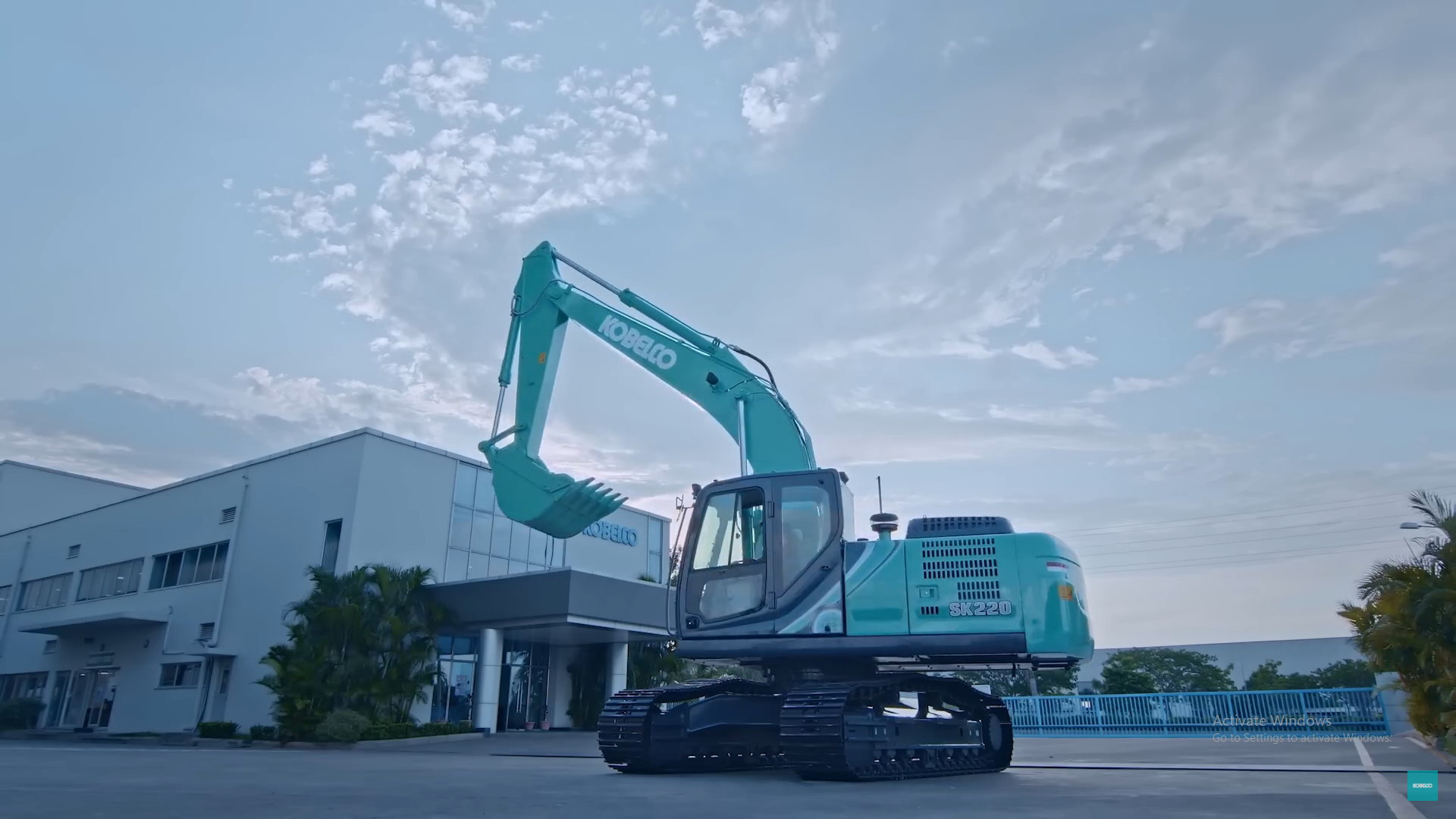

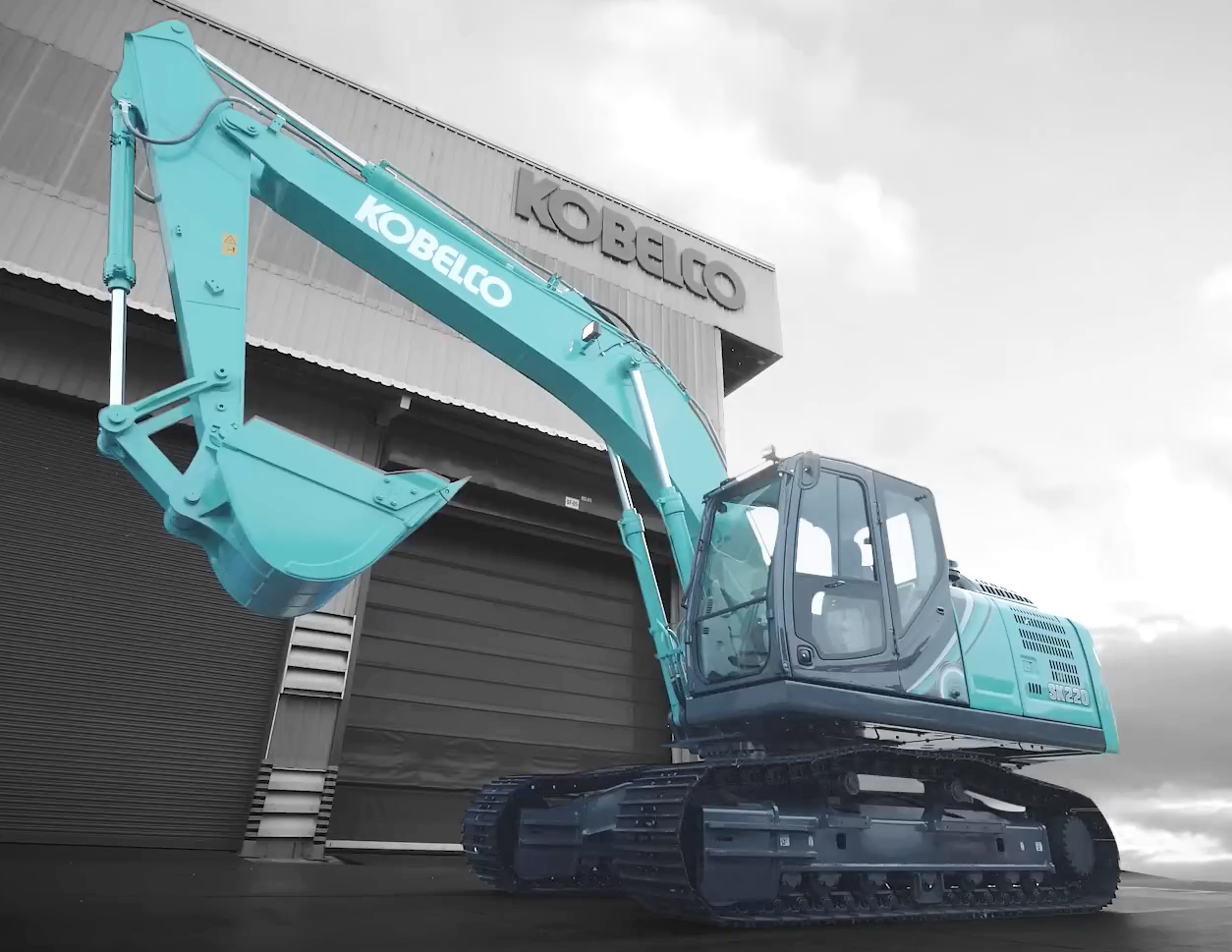

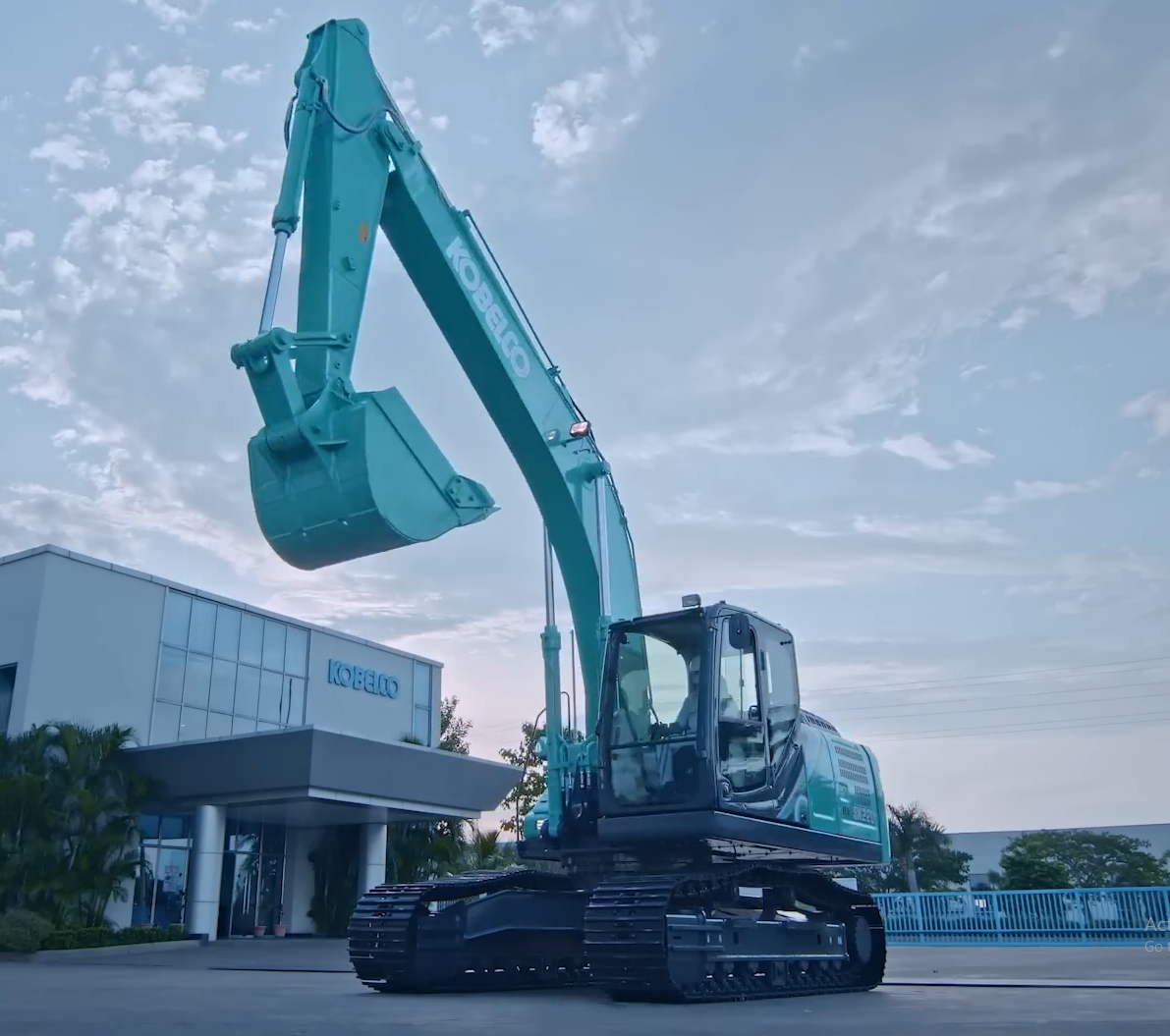

Kobelco SK220 Excavator

The Kobelco SK220 excavator is commonly used in applications such as construction, agriculture, infrastructure development, waste management, and more. It also performs various tasks like digging, trenching, excavation, and dredging.

The Kobelco SK220 comes with a J05ETA/J05ETG engine, and its fuel-efficient technologies provide higher performance.

The Kobelco SK220 excavator's 21,100 kg operating weight and 6.7 m maximum digging depth capacity offer higher productivity with lower operational costs.

*Ex-Showroom Price

Coming Soon

Kobelco SK220 Key Specifications

Kobelco SK220 Features

Engine

Model J05ETA/J05ETG

Type Direct injection, water-cooled, 4-cycle diesel engine with turbocharger, intercooler

Engine Gross Power 158 hp(118 kw) @ 2000 rpm

Max. Torque 592 Nm @ 1600 rpm

Displacement 5.1 L

Swing System

Max. Swing Speed 13.3 rpm

Min. Swing Radius 3.56 m

Drive and Brake

Max. Travel Speed 6 km/h

Gradeability 70%(35°)

Hydraulic System

Main Pump Type Two variable displacement pumps + one gear pump

Main Pump max. Oil Flow 2 x 220 lpm, 1 x 20 lpm

Swing Circuit 29 MPa

Travel Circuit 34.3 MPa

Refill Capacity

Fuel Tank Capacity 320 L

Engine Oil and Filter 20.5 L

Hydraulic System 244 L

Hydraulic Tank Capacity 140 L

Weight and Ground Pressure

Operating Weight 20600-21100 kg

Ground Pressure 35-46 kPa

Dimensions

Overall Length 9600-9680 mm

Overall Height 2980-3220 mm

Bucket Capacity 0.93 m³

Track Gauge 2200 mm

Ground Clearance 435 mm

Working Ranges

Max. Dumping Height 6.68-6.91 m

Max. Digging Depth 6.16-6.7 m

Max. Vertical Wall Digging Depth 5.57-6.1 m

Max. Digging Reach 9.42-9.9 m

Max. Digging Reach at Ground 9.24-9.73 m

Boom Length 5.65 m

Arm Length 2.4-2.94 m

Bucket Digging Force 143 kN

Arm Crowding Force 121 kN

Top Applications of KObelco SK220

1. Infrastructure Development

The Kobelco SK220 excavator's high-performance engine offers consistent productivity and reduced downtime in infrastructure development.

2. Agriculture

The Kobelco SK220's 13.3 rpm swing speed offers better control while operating them in tight agricultural land.

3. Forest Work

The Kobelco SK220's 320 L fuel tank capacity provides continuous performance and improves work efficiency in the forest.

4. Quarrying Operations

The Kobelco SK220 excavator's 21,100 kg operating weight capacity improves safety during the operations and provides higher work efficiency.

5. Mining Sites

The Kobelco SK220 excavator's bucket capacity improves loading efficiency and saves time on the mining operations.
