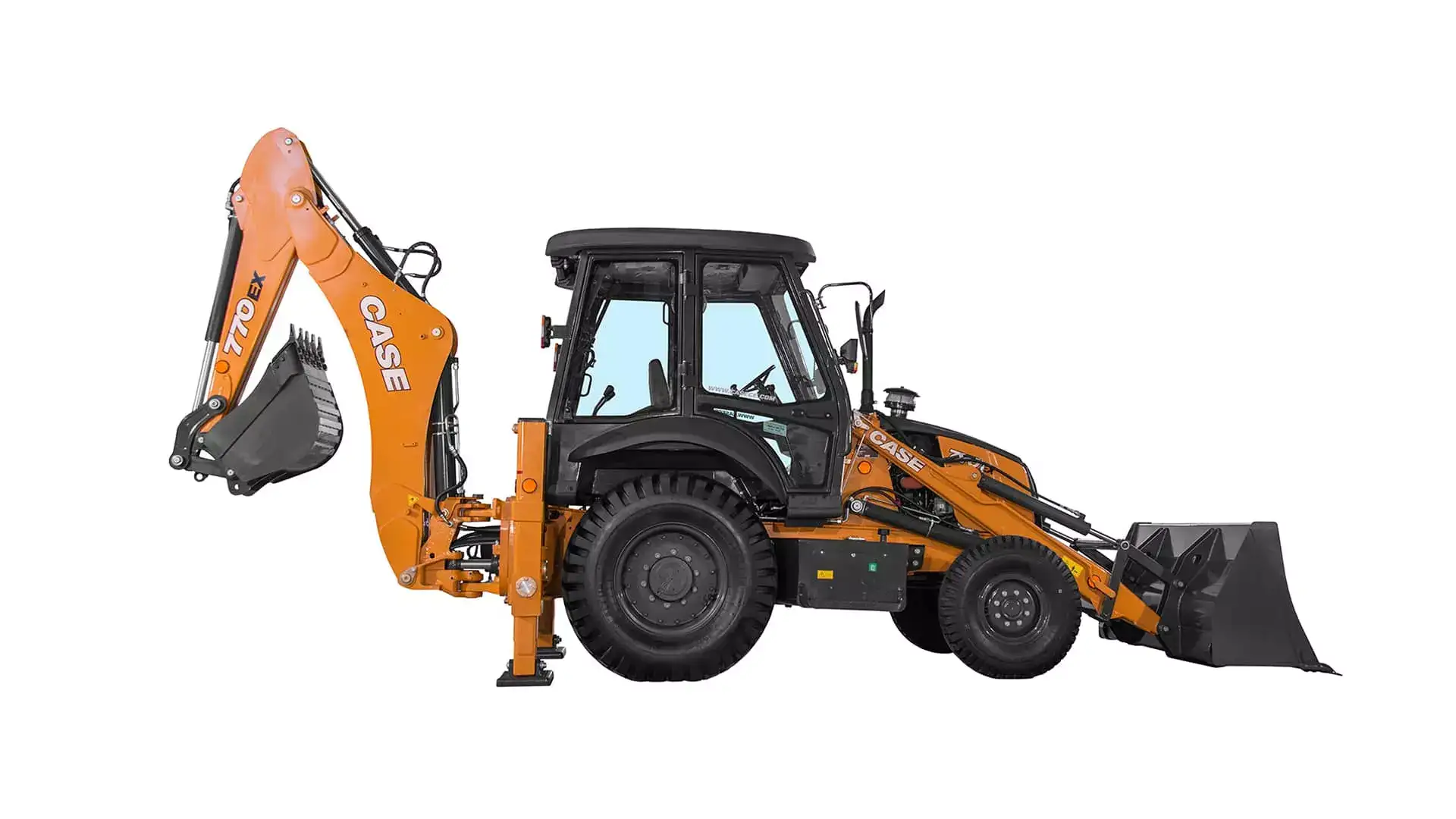

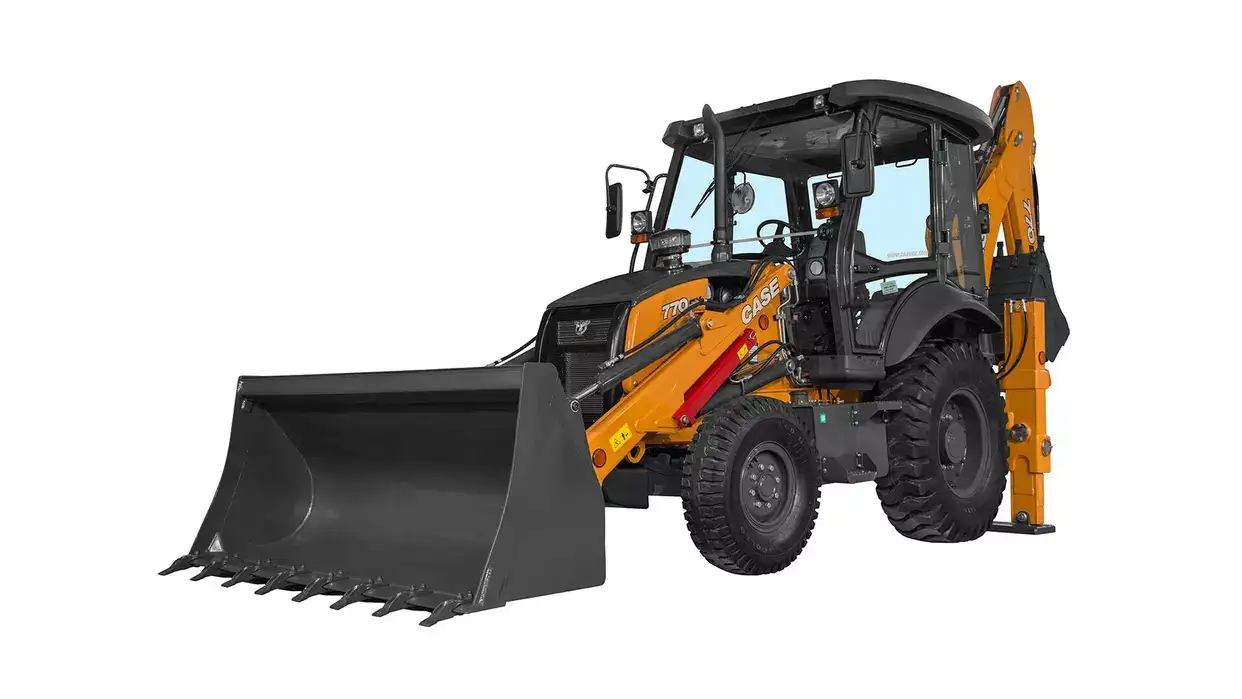

CASE 770EX
CASE 770EX

CASE 770EX

The Case 770EX backhoe loader is a multi-purpose machine used in different industries, capable of handling multiple tasks independently.


The Case 770EX comes with features such as an RPM control system, reinforced robotically welded structures, a comfortable operator station, and more features. The Case 770EX provides more power and better stability to tackle challenging tasks easily.


The Case 770EX features a 340 Nm high-torque engine with a turbocharged intercooled air tank. It delivers a maximum speed of 34 km/h, providing faster work output, while its 7780 kg operating weight capacity enhances material handling.

CASE 770EX Key Specifications

CASE 770EX Features

Engine

Make Ashok Leyland
Model H4C4E7422*W
Engine Gross Power 74 HP(54.4 KW) @ 2200 rpm
Max. Torque 340 Nm @ 1400-1500 rpm

Electrical System

Battery 12 V, 110 Ah

Transmission

Max. Forward Speed 35 km/h
Max. Reverse Speed 22.1 km/h
Transmission Type 4F-4R Power shuttle synchromesh transmission

Steering System

Steering Type Power steering

Drive and Brake

Service Brake Hydraulic foot operated 2 disc per side
Parking Brake Mechanically actuated caliper type brake pack on rear axle input shaft

Tyres

Front Tyre Size 9x16-16 PR
Rear Tyre Size 16.9x28-12 PR

Hydraulic System

Main Pump Flow 126 lpm
Hydraulic System Relief Pressure 195 bar

Axles

Front Axle Type CNH PS1300 (2WD), Carraro/NH 26.17M (4WD)
Rear Axle Type Carraro 28.32M

Refill Capacity

Fuel Tank Capacity 129 L
Engine Oil Capacity 9.1 L
Transmission Oil Capacity 18 L (2WD), 20 L (4WD)
Rear Axle Oil Capacity 17.1 L

Dimensions

Dump Height 2.73 m
Load over Height 3.3 m
Reach at Ground 1.98 m
Max. reach at Full Height 1.19 (2WD), 1.15 (4WD)
Arm Loader Break-out Force 4750 kgf
Loader Bucket Capacity 1.1 m³
Max. Digging Depth 4.40 m
Reach at Full Height (Bucket Dumped) 0.76 m
Below Ground Level Dig Depth 0.11 m
Rollback at Ground 33°
Bucket Loader Break-out Force 5805 kgf
Max. Working Height 5.5 m
Max. Load over Height 3.8 m
Bucket Rotation Power 204°
Side Reach to Center Line of Machine 5.62 m
Dipper Tearout Force (Arm Crowding Force) 3031 kgf
