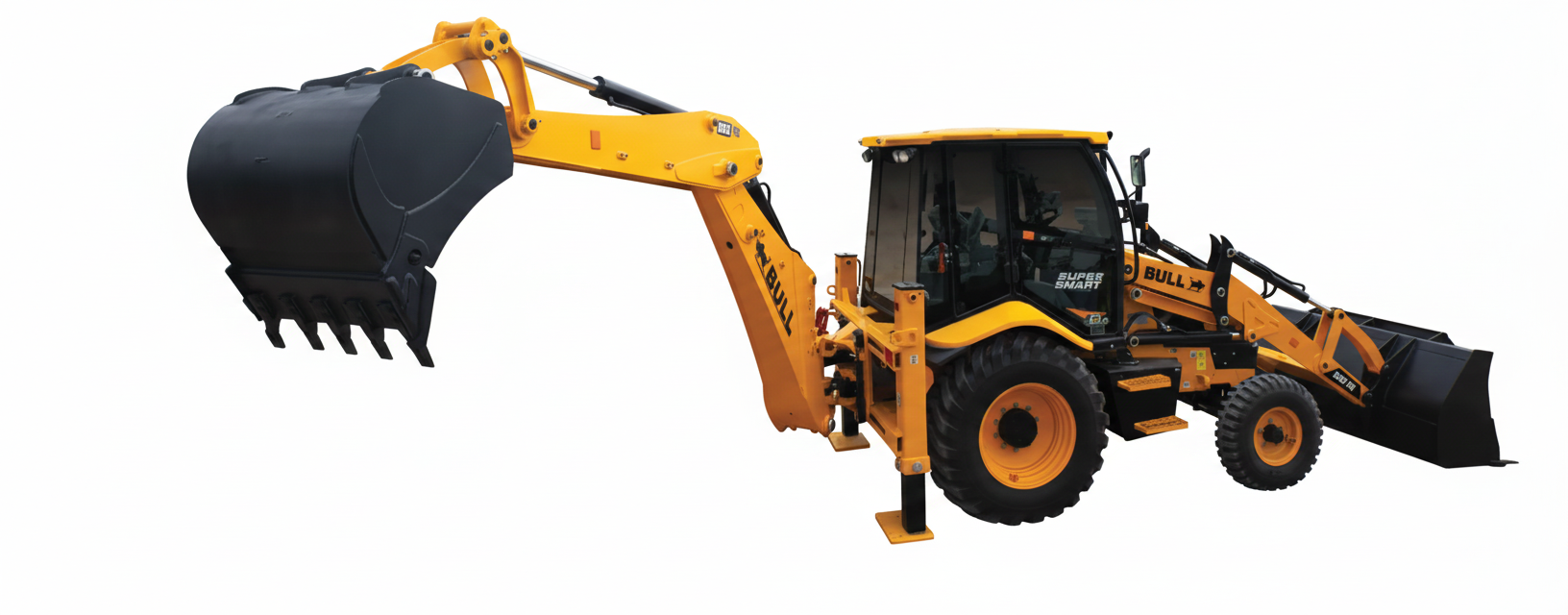

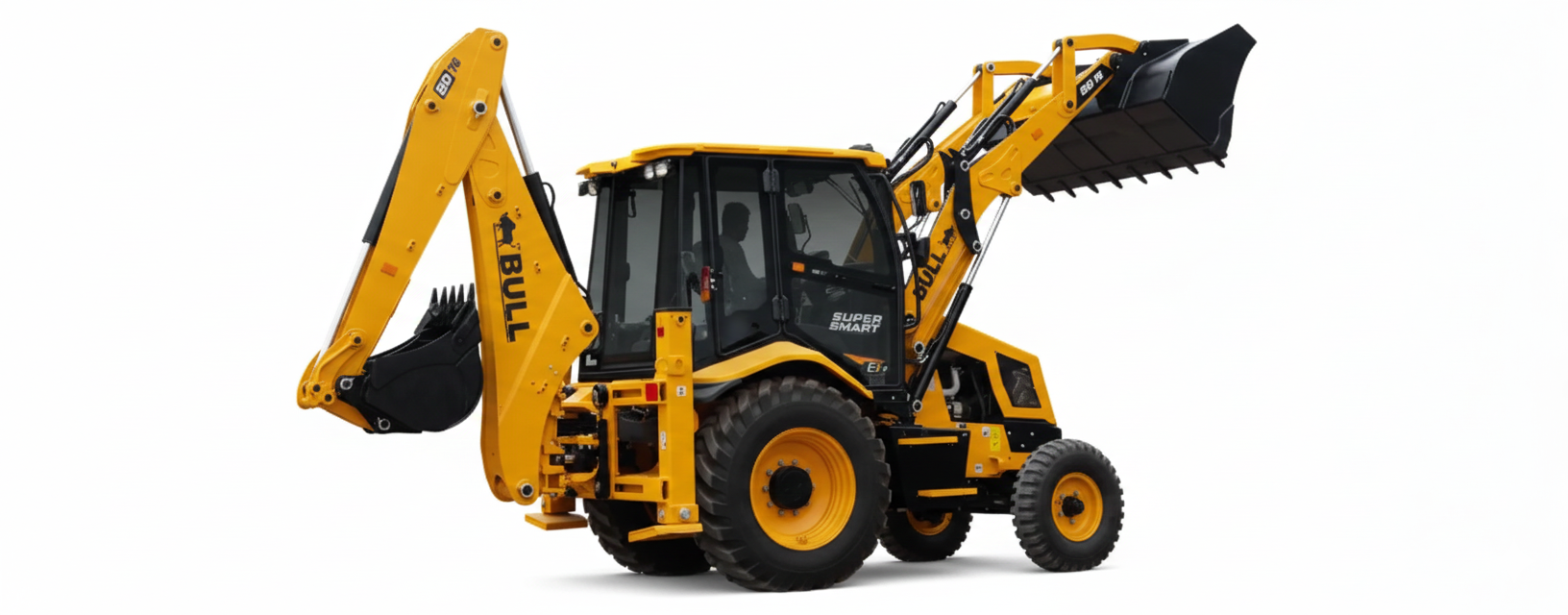

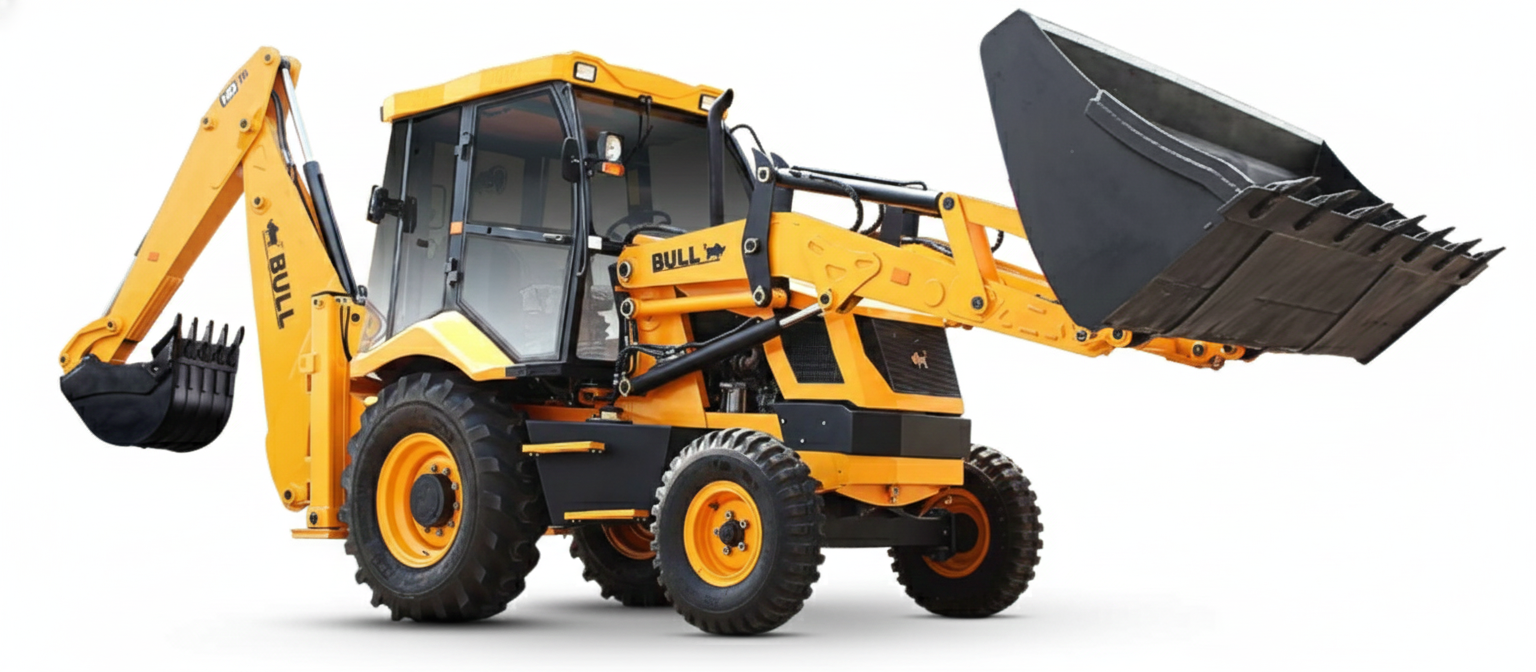

Bull HD 76 2WD

Bull HD 76 2WD Backhoe Loader excels in construction, handling tasks like site preparation, earthmoving, and material transport. In agriculture, it’s ideal for trenching, digging irrigation systems, and moving farm materials. Its compact, powerful design makes HD 76 2WD Backhoe Loader highly efficient for landscaping tasks, including grading and transporting materials. Additionally, Bull HD 76 2WD is proves versatile in utility work, from trench digging to laying foundations, offering a reliable solution for a variety of utility projects. Bull HD 76 2WD is equipped with a 76 HP engine, providing ample power for demanding tasks. Its loader bucket capacity of 0.27 m³ allows efficient material handling, while the arm loader breakout force of 3,150 kgf ensures strong digging and lifting performance. With a dump height of 2.96 meters, HD 76 2WD Backhoe Loader is delivers reliable and versatile operation across various tasks. Bull HD 76 2WD Backhoe Loader offers several unique selling points that make it a top choice for various applications. Powered by a Kirloskar 4R 1040, TC BS-BS-III Diesel Engine, it ensures fuel efficiency and high performance with reduced emissions. The Carraro Synchro Shuttle Transmission with an integral torque converter enables smooth gear shifting and optimal traction on difficult terrains. A multipurpose 6-in-1 bucket adds versatility, allowing the machine to perform multiple tasks such as digging, loading, and leveling. Additionally, the power steering enhances operator control and comfort, making long working hours more manageable.

Bull HD 76 2WD Features

Engine
Make	Kirloskar	Model	4R 1040
Engine Gross Power	76 HP(56.7 KW) @ 2200 rpm	Max. Torque	300 Nm @ 1500 rpm

Electrical System
Battery	12 V Battery System (130 Ah)

Transmission
Max. Forward Speed	40 km/h	Max. Reverse Speed	9.3 km/h
Transmission Type	Carraro synchro-shuttle transmission with integral torque converter

Steering System
Steering Type	Power steering

Tyres
Front Tyre Size	9.00x16-16 PR(2WD), 12.5/80x18-12 PR (4WD)	Rear Tyre Size	16.9x28-12 PR, 14x25-20 PR

Hydraulic System
Main Pump Flow	113 lpm @ 2200 rpm	Hydraulic System Relief Pressure	None

Dimensions
Dump Height	2.93-2.96 m	Load over Height	3.39 m
Reach at Ground	1.47 m	Max. Reach at Full Height	1.28-1.42 m
Arm Loader Break-out Force	5251 kgf	Loader Bucket Capacity	1.1 m³
Bucket Pin Height	3.61 m	Reach at Full Height (Bucket Dumped)	0.89-1.1 m
Below Ground Level Dig Depth	0.08-0.1 m	Rollback at Ground	49°-50°
Bucket Loader Break-out Force	8183 kgf	Max. Working Height	5.92-6.77 m
Max. Load-over Height	4.14-5.02 m	Bucket Rotation Power	188°
Side Reach to Center Line of Machine	6.81-7.91 m	Dipper Tearout Force (Arm Crowding Force)	3150 kgf

Engine
Make	Kirloskar
Model	4R 1040
Engine Gross Power	76 HP(56.7 KW) @ 2200 rpm
Max. Torque	300 Nm @ 1500 rpm

Electrical System
Battery	12 V Battery System (130 Ah)

Transmission
Max. Forward Speed	40 km/h
Max. Reverse Speed	9.3 km/h
Transmission Type	Carraro synchro-shuttle transmission with integral torque converter

Steering System
Steering Type	Power steering

Tyres
Front Tyre Size	9.00x16-16 PR(2WD), 12.5/80x18-12 PR (4WD)
Rear Tyre Size	16.9x28-12 PR, 14x25-20 PR

Hydraulic System
Main Pump Flow	113 lpm @ 2200 rpm
Hydraulic System Relief Pressure	None

Dimensions
Dump Height	2.93-2.96 m
Load over Height	3.39 m
Reach at Ground	1.47 m
Max. Reach at Full Height	1.28-1.42 m
Arm Loader Break-out Force	5251 kgf
Loader Bucket Capacity	1.1 m³
Bucket Pin Height	3.61 m
Reach at Full Height (Bucket Dumped)	0.89-1.1 m
Below Ground Level Dig Depth	0.08-0.1 m
Rollback at Ground	49°-50°
Bucket Loader Break-out Force	8183 kgf
Max. Working Height	5.92-6.77 m
Max. Load-over Height	4.14-5.02 m
Bucket Rotation Power	188°
Side Reach to Center Line of Machine	6.81-7.91 m
Dipper Tearout Force (Arm Crowding Force)	3150 kgf
