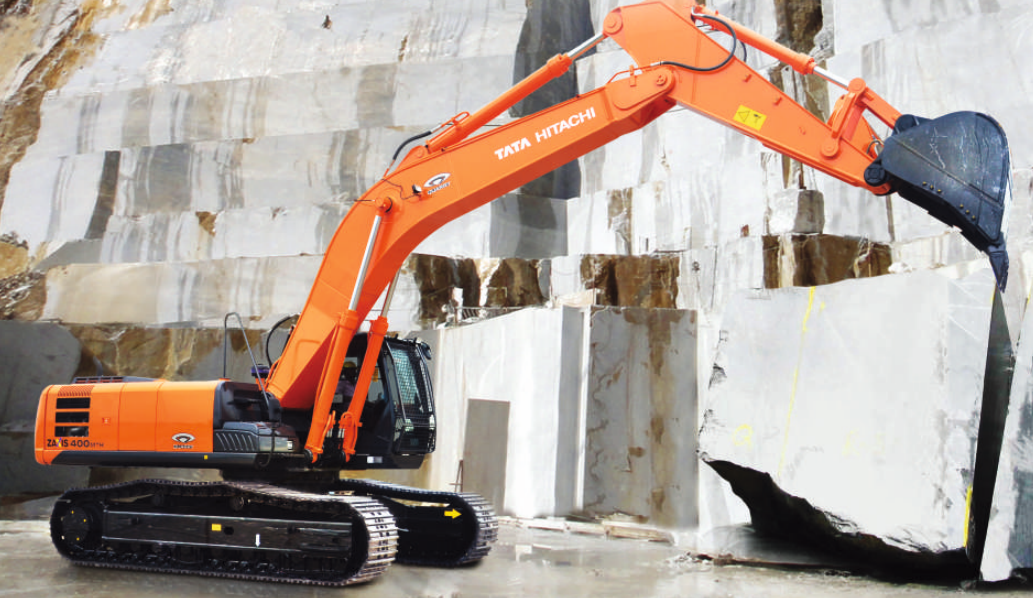

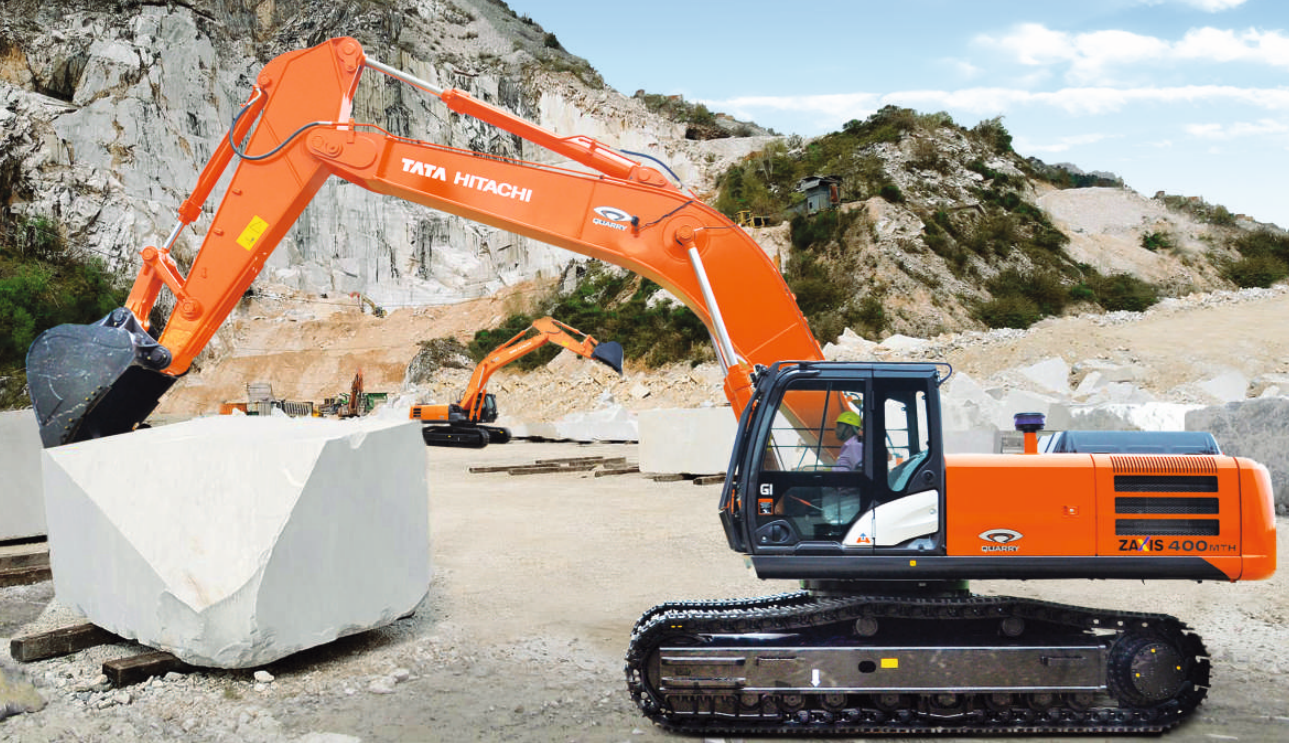

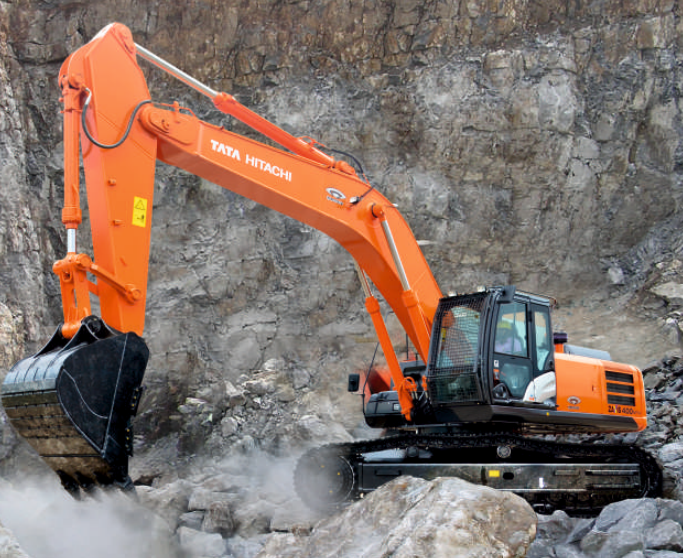

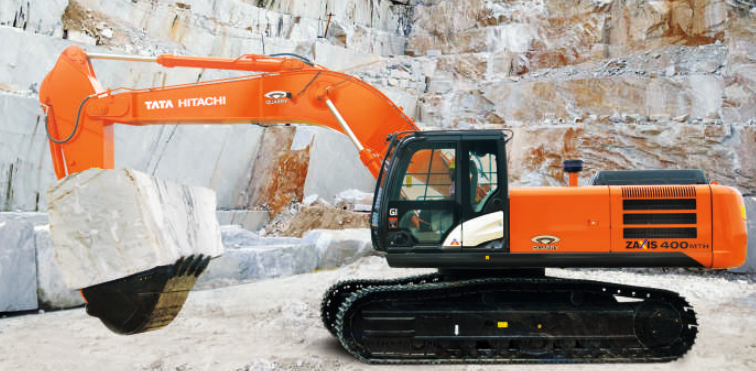

Tata Hitachi ZAXIS 400 MTH

Tata Hitachi ZAXIS 400 MTH Hydraulic Excavator is a robust and powerful machine, meticulously engineered to excel in demanding environments and heavy-duty applications. Built to deliver exceptional performance across diverse projects, the ZAXIS 400 MTH Hydraulic Excavator is the ideal choice for professionals seeking a reliable and efficient excavator. Its advanced features ensure optimal operation in challenging conditions, making it a top contender for any heavy-duty task. Whether tackling tough jobs in mining, construction, or waste management, this excavator is designed to meet the rigorous demands of the industry. Tata Hitachi ZAXIS 400 MTH features a powerful engine delivering a gross power of 246 HP, providing the strength and efficiency needed for large-scale projects. With an operating weight ranging from 37,100 to 37,600 KG, ZAXIS 400 MTH Hydraulic Excavator ensures stability and durability while handling significant workloads. The excavator offers a versatile bucket capacity of 1.3 to 2.5 m³, accommodating various tasks, while its impressive bucket digging force of 25,084 kgf ensures effective material handling and efficient excavation. With a maximum digging depth of 6,800 to 9,920 mm, the ZAXIS 400 MTH is designed for deep excavations, making it a reliable choice for demanding heavy-duty operations. Tata Hitachi ZAXIS 400 MTH Hydraulic Excavator features the advanced HIOS 3 hydraulic system, which enhances operational efficiency and responsiveness. ZAXIS 400 MTH Hydraulic Excavator is dust-proof indoor net protects critical components from dust and debris, extending the machine's longevity and reliability, especially in harsh environments like quarries and mining sites. Additionally, the electric fuel refilling pump provides convenience for quick and easy refueling, minimizing downtime and ensuring smooth operations. This robust combination of features makes the Tata Hitachi ZAXIS 400 MTH a top choice for heavy-duty applications, delivering outstanding performance and durability in demanding conditions.

Tata Hitachi ZAXIS 400 MTH Features

Engine
Model	ISUZU AA-6HK1X	Type	4-Cycle water-cooled, direct injection
Engine Gross Power	184 KW @ 2000 rpm	Max. Torque	873 Nm @ 1700 rpm
Displacement	7.790 L

Undercarriage
No. of Shoes	48	No. of Upper Rollers	2
No. of Bottom Rollers	8	Track Shoe Width	600 mm

Swing System
Max. Swing Speed	10.7 rpm	Min. Swing Radius	4440-4610 mm

Drive and Brake
Max. Travel Speed	5.1 km/h	Gradeability	35°(70%)

Hydraulic System
Main Pump Type	2 Variable displacements axial piston pumps	Main Pump max. Oil Flow	2x279 lpm
Swing Circuit	330 kgf/cm²	Travel Circuit	355 kgf/cm²

Refill Capacity
Fuel Tank Capacity	630 L	Engine Oil and Filter	36 L
Hydraulic System	340 L	Hydraulic Tank Capacity	180 L

Weight and Ground Pressure
Operating Weight	37100-37600 kg

Dimensions
Overall Length	11350 mm	Overall Height	3190 mm
Bucket Capacity	1.3-2.5 m³	Track Gauge	2740 mm
Ground Clearance	495 mm

Working Ranges
Max. Dumping Height	6980-8020 mm	Max. Digging Depth	6800-9920 mm
Max. Vertical Wall Digging Depth	5500 mm	Max. Digging Reach	10570-13190 mm
Max. Digging Reach at Ground Level	10350-13020 mm	Arm Length	2.66 m
Bucket Digging Force	246 kN	Arm Crowding Force	222 kN

Engine
Model	ISUZU AA-6HK1X
Type	4-Cycle water-cooled, direct injection
Engine Gross Power	184 KW @ 2000 rpm
Max. Torque	873 Nm @ 1700 rpm
Displacement	7.790 L

Undercarriage
No. of Shoes	48
No. of Upper Rollers	2
No. of Bottom Rollers	8
Track Shoe Width	600 mm

Swing System
Max. Swing Speed	10.7 rpm
Min. Swing Radius	4440-4610 mm

Drive and Brake
Max. Travel Speed	5.1 km/h
Gradeability	35°(70%)

Hydraulic System
Main Pump Type	2 Variable displacements axial piston pumps
Main Pump max. Oil Flow	2x279 lpm
Swing Circuit	330 kgf/cm²
Travel Circuit	355 kgf/cm²

Refill Capacity
Fuel Tank Capacity	630 L
Engine Oil and Filter	36 L
Hydraulic System	340 L
Hydraulic Tank Capacity	180 L

Weight and Ground Pressure
Operating Weight	37100-37600 kg

Dimensions
Overall Length	11350 mm
Overall Height	3190 mm
Bucket Capacity	1.3-2.5 m³
Track Gauge	2740 mm
Ground Clearance	495 mm

Working Ranges
Max. Dumping Height	6980-8020 mm
Max. Digging Depth	6800-9920 mm
Max. Vertical Wall Digging Depth	5500 mm
Max. Digging Reach	10570-13190 mm
Max. Digging Reach at Ground Level	10350-13020 mm
Arm Length	2.66 m
Bucket Digging Force	246 kN
Arm Crowding Force	222 kN
