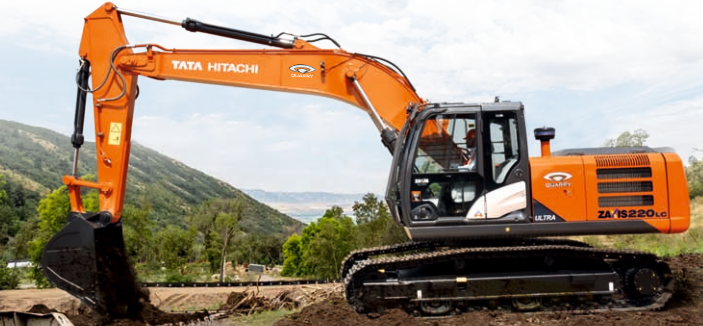

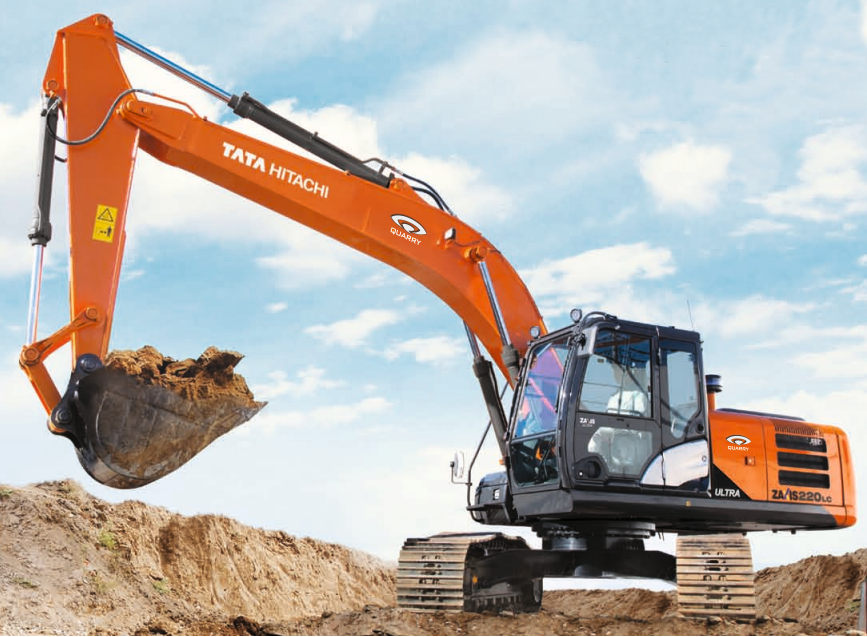

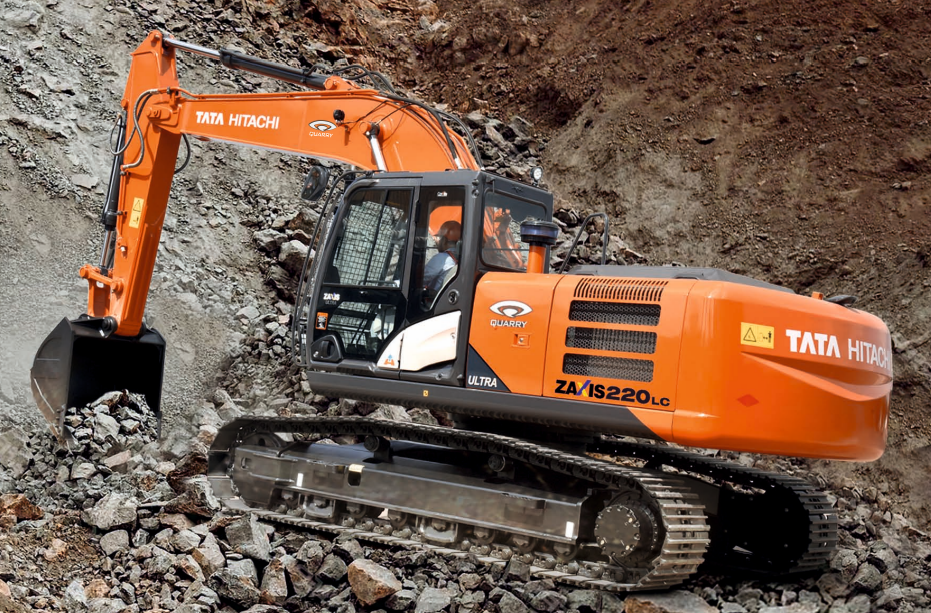

Tata Hitachi ZAXIS 220LC Ultra Hydraulic Excavator is a powerful solution for modern construction and heavy-duty tasks. With its impressive digging capabilities and robust design, this hydraulic excavator is the ideal choice for professionals seeking reliability and efficiency. Engineered for unmatched performance and versatility, the ZAXIS 220LC Ultra Hydraulic Excavator excels in demanding environments, making it a top choice for road construction, irrigation, municipal works, and quarry operations. Designed to handle various heavy-duty projects, it ensures productivity and durability, making it a valuable asset for contractors and operators alike. Tata Hitachi ZAXIS 220LC Ultra features a powerful engine with a gross output of 168 HP, designed for demanding tasks. With an operating weight of 21,700 KG, it offers stability and durability in challenging environments. Tata Hitachi ZAXIS 220LC Ultra has a bucket capacity of 0.9 to 1.7 m³, providing flexibility for various job requirements. Its bucket digging force ranges from 14,200 to 16,100 kgf, ensuring efficient material handling and high productivity. With a maximum digging depth of 6,160 to 6,630 mm, the ZAXIS 220LC Ultra is perfect for construction, quarry operations, and heavy-duty applications, making it a reliable choice for any project. Tata Hitachi ZAXIS 220LC Ultra Hydraulic Excavator features the innovative Auto Power Life Mode, which optimizes fuel consumption and enhances operational efficiency. This mode adjusts power output based on the specific task, ensuring maximum performance while minimizing fuel costs. Designed for heavy-duty applications, ZAXIS 220LC Ultra Hydraulic Excavator offers a faster cycle time for quicker operations, which is essential in time-critical environments. With its advanced hydraulic system and durable construction, the ZAXIS 220LC Ultra is a reliable choice for demanding projects, ensuring superior performance and versatility in every task.

Tata Hitachi ZAXIS 220 LC ULTRA Key Specifications

Tata Hitachi ZAXIS 220 LC ULTRA Features

Engine
Model Isuzu CC-6BG1T
Type 4-Cycle water-cooled, direct injection
Engine Gross Power 168 HP @ 2100 rpm
Max. Torque 637 Nm @ 1800 rpm
Displacement 6.494 L
Undercarriage
No. of Shoes 49
No. of Upper Rollers 2
No. of Bottom Rollers 8
Track Shoe Width 600 mm
Swing System
Max. Swing Speed 12.2 rpm
Min. Swing Radius 3180-3190 mm
Drive and Brake
Max. Travel Speed 5.0 km/h
Gradeability 35°(70%)
Hydraulic System
Main Pump Type 2 Variable displacements axial piston pumps
Main Pump max. Oil Flow 2x212 lpm
Swing Circuit 310 kgf/cm²
Travel Circuit 350 kgf/cm²
Refill Capacity
Fuel Tank Capacity 400 L
Engine Oil and Filter 25 L
Hydraulic System 240 L
Hydraulic Tank Capacity 135 L
Weight and Ground Pressure
Operating Weight 21700 kg
Dimensions
Overall Length 9750 mm
Overall Height 3030-3070 mm
Bucket Capacity 0.9-1.7 m³
Track Gauge 2390 mm
Ground Clearance 450 mm
Working Ranges
Max. Dumping Height 6870-7200 mm
Max. Digging Depth 6160-6630 mm
Max. Vertical Wall Digging Depth 5720-6140 mm
Max. Digging Reach 9435-9930 mm
Max. Digging Reach at ground Level 9260-9760 mm
Boom Length 5.68 m
Arm Length 2.4-2.9 m
