Liugong 915E

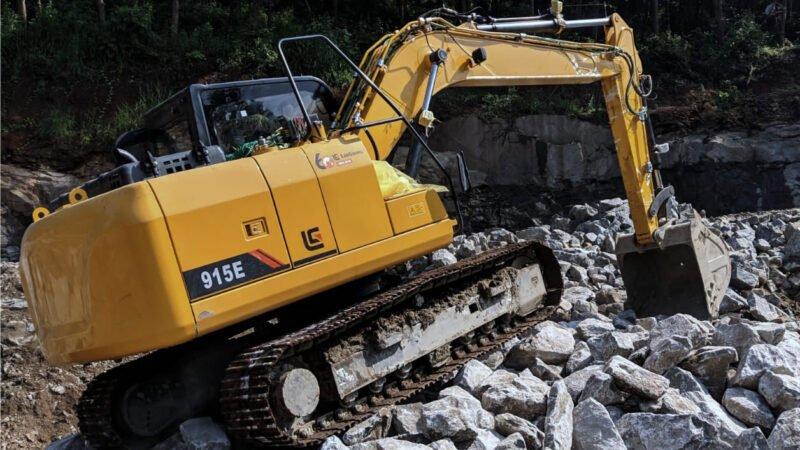

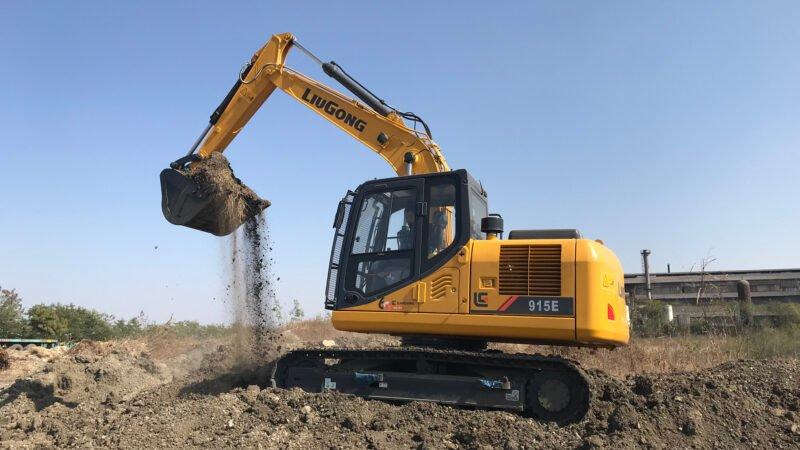

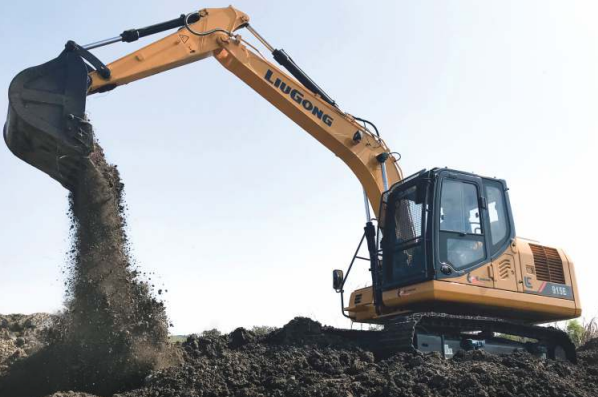

Liugong's Excavator 915E is a powerful and flexible equipment designed to perform a wide range of excavation activities efficiently and precisely. The 915E is powered by a strong 100 HP engine that runs at 2,200 rpm, delivering efficient and powerful performance for hard excavation activities. With an operational weight of 13,800 kg, the 915E offers exceptional stability and durability. The 915E can dig a maximum depth of 5,068 mm. The 915E has a typical bucket capacity of 0.73 m³ for effective material handling. The 915E produces a considerable torque of 385 Nm at 1,300 rpm. Liugong's xcavator 915E is intended to deliver outstanding performance, efficiency, and durability in a variety of excavation applications. 915E is a dependable collaborator for generating outstanding outcomes with accuracy and power.

Liugong 915E Features

Engine
Make	CUMMINS	Model	4BT3.9
Gross Power	100 hp @ 2000 rpm	Peak Torque	385 N-m @ 1300 rpm
Number of Cylinders	4	Displacement	3.9 L
Aspiration	Turbocharged

Hydraulic System
Main Pump Type	Two Variable Displacement Piston Pumps	Main Pump Flow	2 x 120 LPM
Pilot Pump Flow	19 LPM	Implementation System Pressure	34.3 MPa
Travel System Pressure	34.3 MPa	Swing System Pressure	25 MPa
Pilot System Pressure	3.9 MPa

Swing System
Swing Speed	12.9 rpm	Swing Motor	Axial Piston Motor
Swing Reduction	Planetary Gear	Swing Bearing	Lubrication Grease Bathed

Drive System
Drive Type	Hydrostatic	Drive Motor	Axial Piston Motor
Drive Reduction	Planetary Gear	Max. Drawbar Pull	122 KN
Travel Speed (High/Low)	(5.1/3.3) Km/h	Gradeability	70% (35°)

Undercarriage
Track Shoe Width (Triple Grouser)	500 mm	No. of Track Shoes	45 Each Side
No. of Track Guard	2 Each Side	No. of Upper Rollers	1 Each Side
No. of Bottom Rollers	7 Each Side

Operating Weight
Operating Weight	13800 kg	Shoe Ground Pressure	42.5 kPa

Service Capacities
Fuel Tank	245 L	Engine Oil	14 L
Cooling System	21 L	Hydraulic Oil Tank	160 L
Hydraulic System Total	240 L	Swing Device	3 L
Travel Device	5.5 x 2 L

Buckets
XD Bucket	0.65 m³	GP Bucket	0.73 m³

Electrical System
Voltage	24 V	Battery	12 V, 100Ahx2
Working Lights	3

Dimensions
Boom Length	4600 mm	Arm Length	2100 mm
Dig Height	8480 mm	Dump Height	6024 mm
Dig Depth	5068 mm	Dig Depth of Vertical	4428 mm
Depth of 8 Bottom	4828 mm	Max Reach	7924 mm
Reach at Ground Level	7784 mm	Min Swing Radius	2400 mm
ISO Bucket Breakout Force (Boost)	89.8 (96.9) kN	ISO Arm Breakout Force (Boost)	73.5 (79.4) KN

Engine
Make	CUMMINS
Model	4BT3.9
Gross Power	100 hp @ 2000 rpm
Peak Torque	385 N-m @ 1300 rpm
Number of Cylinders	4
Displacement	3.9 L
Aspiration	Turbocharged

Hydraulic System
Main Pump Type	Two Variable Displacement Piston Pumps
Main Pump Flow	2 x 120 LPM
Pilot Pump Flow	19 LPM
Implementation System Pressure	34.3 MPa
Travel System Pressure	34.3 MPa
Swing System Pressure	25 MPa
Pilot System Pressure	3.9 MPa

Swing System
Swing Speed	12.9 rpm
Swing Motor	Axial Piston Motor
Swing Reduction	Planetary Gear
Swing Bearing	Lubrication Grease Bathed

Drive System
Drive Type	Hydrostatic
Drive Motor	Axial Piston Motor
Drive Reduction	Planetary Gear
Max. Drawbar Pull	122 KN
Travel Speed (High/Low)	(5.1/3.3) Km/h
Gradeability	70% (35°)

Undercarriage
Track Shoe Width (Triple Grouser)	500 mm
No. of Track Shoes	45 Each Side
No. of Track Guard	2 Each Side
No. of Upper Rollers	1 Each Side
No. of Bottom Rollers	7 Each Side

Operating Weight
Operating Weight	13800 kg
Shoe Ground Pressure	42.5 kPa

Service Capacities
Fuel Tank	245 L
Engine Oil	14 L
Cooling System	21 L
Hydraulic Oil Tank	160 L
Hydraulic System Total	240 L
Swing Device	3 L
Travel Device	5.5 x 2 L

Buckets
XD Bucket	0.65 m³
GP Bucket	0.73 m³

Electrical System
Voltage	24 V
Battery	12 V, 100Ahx2
Working Lights	3

Dimensions
Boom Length	4600 mm
Arm Length	2100 mm
Dig Height	8480 mm
Dump Height	6024 mm
Dig Depth	5068 mm
Dig Depth of Vertical	4428 mm
Depth of 8 Bottom	4828 mm
Max Reach	7924 mm
Reach at Ground Level	7784 mm
Min Swing Radius	2400 mm
ISO Bucket Breakout Force (Boost)	89.8 (96.9) kN
ISO Arm Breakout Force (Boost)	73.5 (79.4) KN
