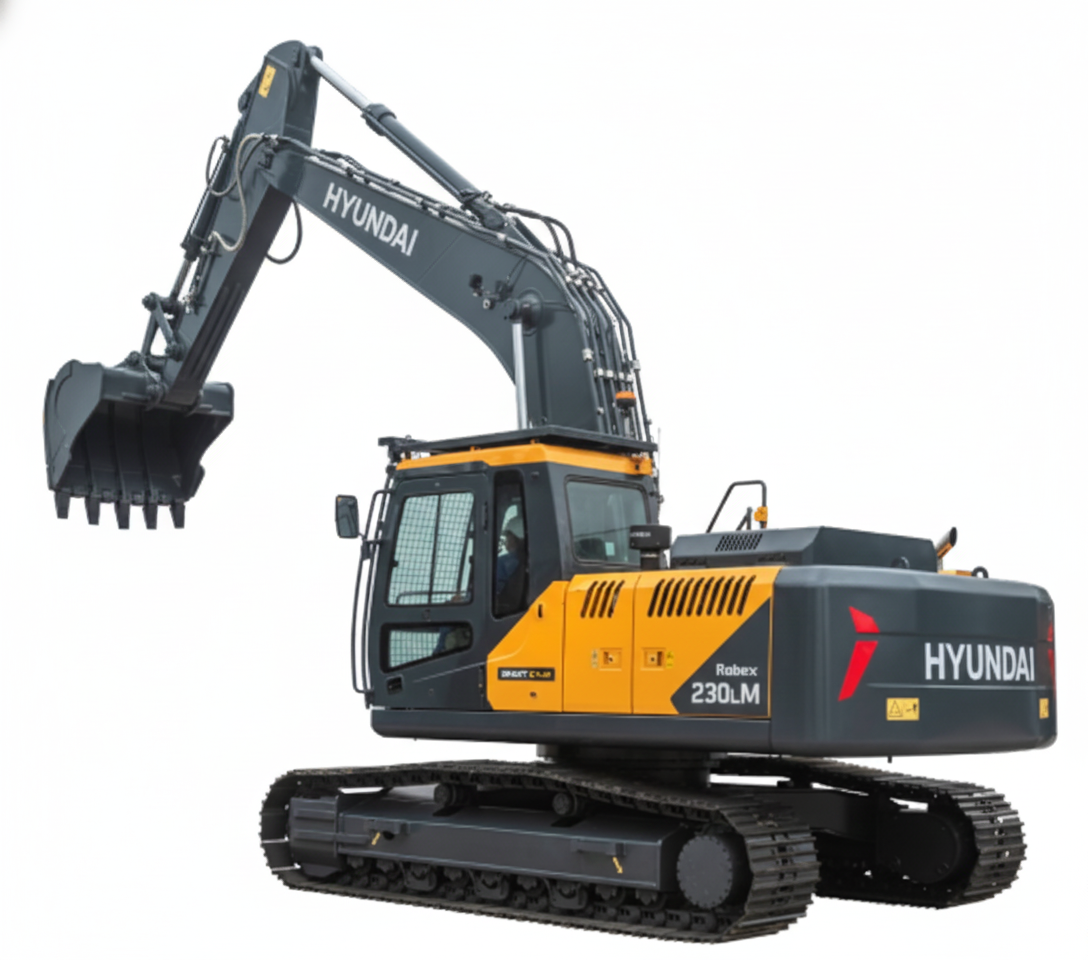

Hyundai R230LM SMART X PLUS Excavator

The Hyundai R230LM SMART X PLUS excavator is designed for a wide range of applications such as utility installation, quarrying, mining, road construction, and forestry. Additionally, it handles various tasks like material handling, lifting heavy loads, snow removal, building foundations, and dumping materials.

The Hyundai R230LM SMART X PLUS, combined with a Cummins 6BTAA-5.9C diesel engine, provides high performance and fuel efficiency. Its two-variable displacement piston pumps hydraulic system offers smooth operations without sacrificing performance.

Its powerful engine generates 148 HP at 2000 rpm and 624 Nm of high torque, delivering lower fuel consumption and enhanced productivity.

*Ex-Showroom Price

₹ 70 - 72 Lakhs

Hyundai R230LM SMART X PLUS Key Specifications

Hyundai R230LM SMART X PLUS Features

Engine

Model Cummins 6BTAA-5.9C

Engine Gross Power 148 HP(110 KW) @ 2000 rpm

Max. Torque 624 Nm @ 1300 rpm

Undercarriage

No. of Shoes 49

No. of Upper Rollers 2

No. of Bottom Rollers 9

Track Shoe Width 600 mm

Swing System

Max. Swing Speed 11 rpm

Min. Swing Radius 3658 mm

Drive and Brake

Max. Travel Speed 5.3 km/h

Gradeability 70%(35°)

Hydraulic System

Main Pump Type Two variable displacement piston pumps

Main Pump max. Oil Flow 2x220 Ipm

Swing Circuit 240 kgf/cm²

Travel Circuit 330 kgf/cm²

Refill Capacity

Fuel Tank Capacity 340 L

Engine Oil and Filter 21 L

Hydraulic System 280 L

Hydraulic Tank Capacity 150 L

Weight and Ground Pressure

Operating Weight 23300 kg

Ground Pressure 0.50 kgf/cm²

Dimensions

Overall Length 9620 mm

Overall Height 2920 mm

Overall Width 2900 mm

Bucket Capacity 0.87-1.7 m³

Track Gauge 2390 mm

Ground Clearance 480 mm

Working Ranges

Max. Dumping Height 6487-6727 mm

Max. Digging Depth 6222-6742 mm

Max. Vertical Wall Digging Depth 5190-5828 mm

Max. Digging Reach 9476-9952 mm

Max. Digging Reach at Ground Level 9311-9795 mm

Boom Length 5680 mm

Arm Length 2400-2920 mm

Bucket Digging Force 16000 kgf

Arm Crowding Force 12600 kgf

Top Applications of Hyundai R230LM SMART X PLUS

1. Utility Installations

The Hyundai R230LM SMART X PLUS excavator's diesel engine drives smooth operations and provides higher performance during the utility operations.

2. Quarrying Operations

The Hyundai R230LM SMART X PLUS excavator's swing speed enhanced operator control by providing higher speed and rotation during the quarry operations.

3. Mining Sites

The Hyundai R230LM SMART X PLUS excavator minimises downtime on-site and provides consistent productivity due to its large fuel tank capacity.

4. Forest Work

Its 23300 kg operating weight capacity handles heavy loads and objects efficiently and provides superior stability and balance during forest activities.

5. Demolition

The Hyundai R230LM SMART X PLUS excavator's long arm and boom handle complex operations and deep excavation projects efficiently.
