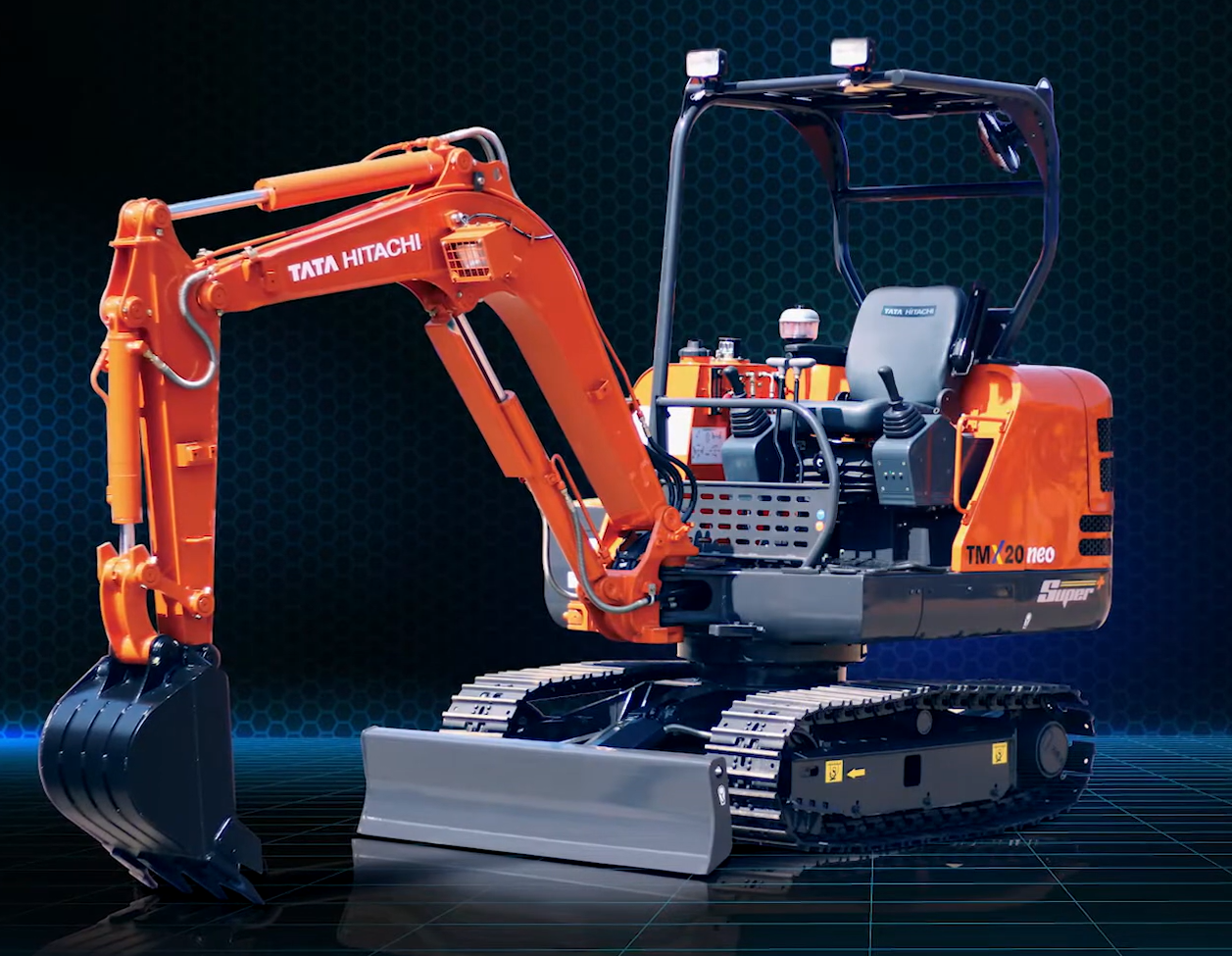

Tata Hitachi TMX 20 Neo

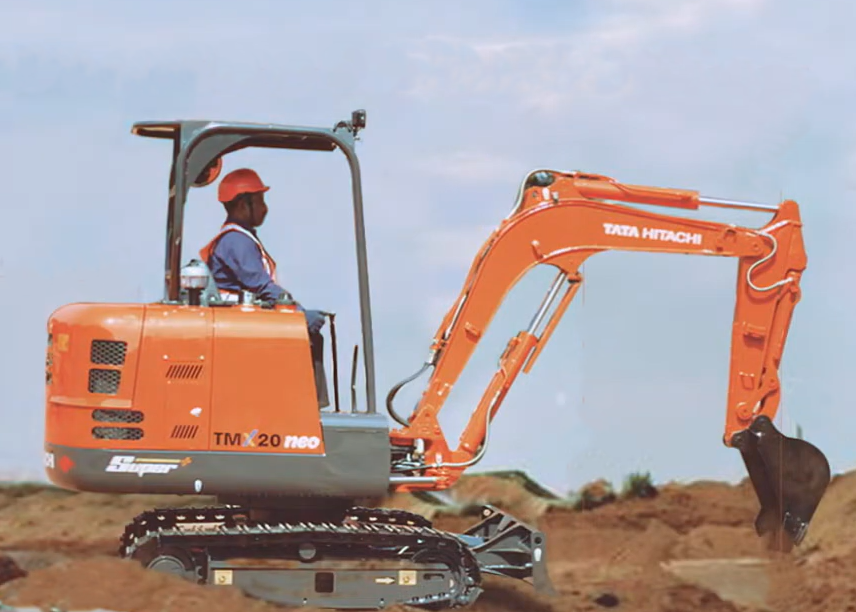

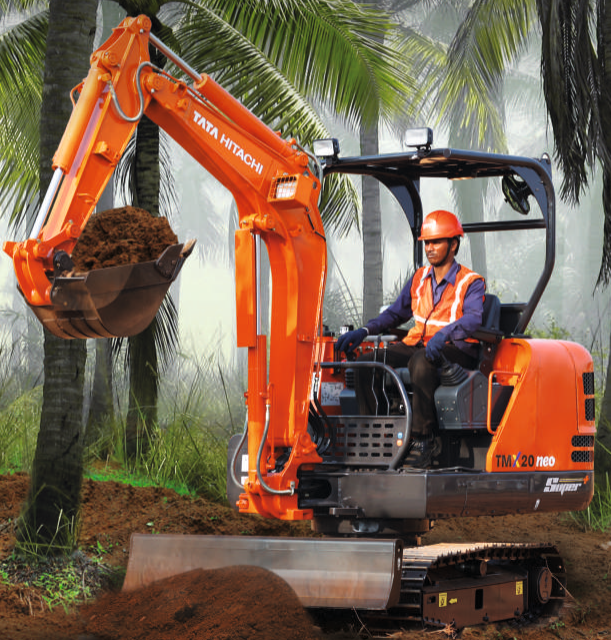

Tata Hitachi TMX 20 Neo mini excavator is a reliable and efficient, It's designed for high performance in various industries. Tata Hitachi TMX 20 Neo excels in construction, agriculture & plantation, drainage cleaning, as well as pipe laying & foundation work, offering efficient solutions for digging, trenching, and water flow management in small to medium-scale projects. Tata Hitachi TMX 20 Neo is engineered for outstanding performance with a robust 27.4 HP engine that delivers exceptional power. With an operating weight of 2300 kg, this mini excavator ensures stability and durability across various terrains. The bucket capacity ranges from 0.04 to 0.07 m³, offering versatility for different types of digging and trenching tasks. Additionally, the bucket digging force of 1890 kgf allows the TMX 20 Neo Mini Excavator to handle tough materials with ease. Its maximum digging depth of 2233 mm ensures efficient excavation even in deeper applications Tata Hitachi TMX 20 Neo Mini Excavator is designed for easy transport thanks to its compact structure, making it ideal for jobs requiring mobility. It offers low maintenance costs, ensuring affordability and long-term savings for users. Additionally, the machine holds a high resale value, providing excellent returns on investment when resold. Known for its best-in-class fuel efficiency, the TMX 20 Neo minimizes operational costs

Tata Hitachi TMX 20 Neo Features

Engine
Model	3TNV88-BSTAH	Type	3 Cycle, water cooled, diesel engine
Engine Gross Power	27.4 HP @ 2200 rpm	Max. Torque	107 Nm @ 1320 rpm

Undercarriage
No. of Shoes	36x2	No. of Upper Rollers	2x1
No. of Bottom Rollers	3x2	Track Shoe Width	280 mm

Swing System
Max. Swing Speed	11 rpm

Drive and Brake
Max. Travel Speed	3.27 km/h	Gradeability	30°(58%)

Hydraulic System
Main Pump Type	One gear pump

Refill Capacity
Fuel Tank Capacity	37 L	Engine Oil and Filter	6.7 L
Hydraulic System	70 L	Hydraulic Tank	45 L

Weight and Ground Pressure
Operating Weight	2300 kg	Ground Pressure	0.30 kg/cm²

Dimensions
Overall Length	4041 mm	Overall Height	2368 mm
Bucket Capacity	0.04 to 0.07 m³	Track Gauge	1120 mm
Ground Clearance	291 mm

Working Ranges
Max. Dumping Height	2677 mm	Max. Digging Depth	2323 mm
Max. Digging Reach	4188 mm	Max. Digging Reach at Ground Level	4040 mm
Boom Length	1900 mm	Arm Length	1000 mm
Bucket Digging Force	1890 kgf	Arm Crowding Force	1300 kgf

Engine
Model	3TNV88-BSTAH
Type	3 Cycle, water cooled, diesel engine
Engine Gross Power	27.4 HP @ 2200 rpm
Max. Torque	107 Nm @ 1320 rpm

Undercarriage
No. of Shoes	36x2
No. of Upper Rollers	2x1
No. of Bottom Rollers	3x2
Track Shoe Width	280 mm

Swing System
Max. Swing Speed	11 rpm

Drive and Brake
Max. Travel Speed	3.27 km/h
Gradeability	30°(58%)

Hydraulic System
Main Pump Type	One gear pump

Refill Capacity
Fuel Tank Capacity	37 L
Engine Oil and Filter	6.7 L
Hydraulic System	70 L
Hydraulic Tank	45 L

Weight and Ground Pressure
Operating Weight	2300 kg
Ground Pressure	0.30 kg/cm²

Dimensions
Overall Length	4041 mm
Overall Height	2368 mm
Bucket Capacity	0.04 to 0.07 m³
Track Gauge	1120 mm
Ground Clearance	291 mm

Working Ranges
Max. Dumping Height	2677 mm
Max. Digging Depth	2323 mm
Max. Digging Reach	4188 mm
Max. Digging Reach at Ground Level	4040 mm
Boom Length	1900 mm
Arm Length	1000 mm
Bucket Digging Force	1890 kgf
Arm Crowding Force	1300 kgf
