Liugong 930E XLR
Liugong 930E XLR

Liugong 930E XLR

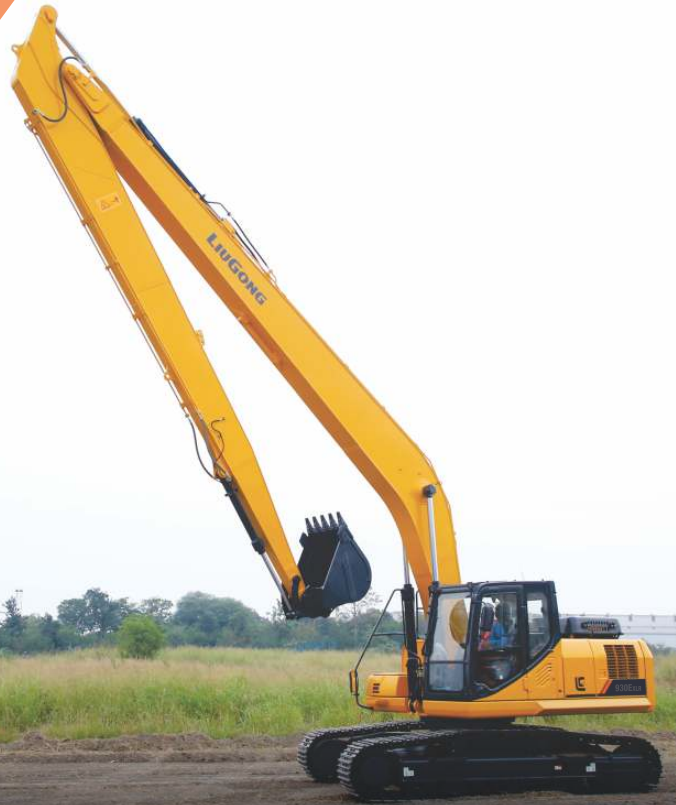

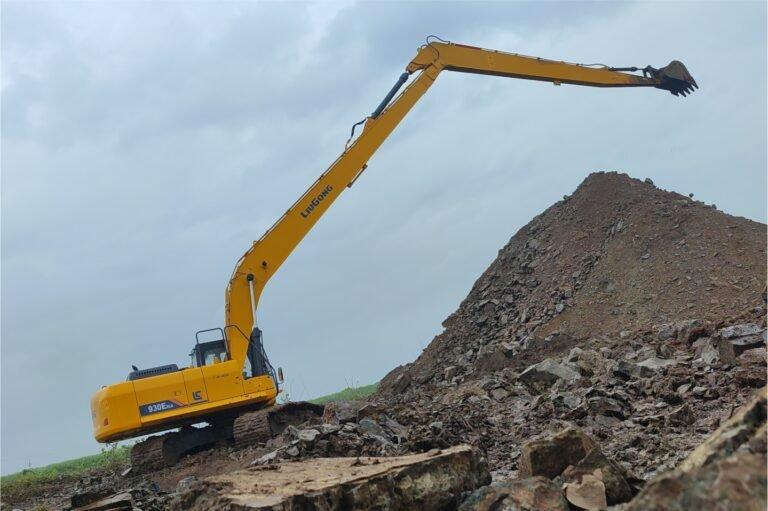

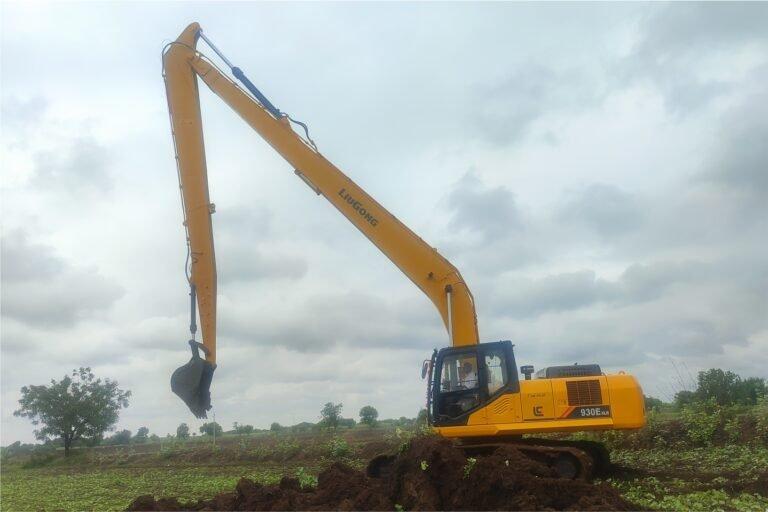

Liugong 930E XLR Hydraulic Excavator is a versatile machine suitable for a wide range of applications. In agriculture, it excels in land clearing, soil preparation, and irrigation system installation, enhancing farm productivity. For waste management, it is ideal for handling material and debris removal at landfills or waste processing sites. In forestry, the 930E XLR Hydraulic Excavator is engineered for tree clearing, trenching, and other logging tasks. Additionally, its capabilities extend to marine construction, where it supports pier construction, dredging, and riverbank stabilization, making Liugong 930E XLR an invaluable tool for both land and water-based projects.


Liugong 930E XLR features a robust engine with a gross power of 188 hp, enabling powerful performance across various applications. It has an operating weight of 30,200 kg, ensuring stability and durability during heavy-duty tasks. 930E XLR Hydraulic Excavator is equipped with a bucket capacity of 0.5 m³, ideal for handling a variety of materials. Additionally, its impressive maximum digging depth of 17,209 mm allows for deep excavation, making Liugong 930E XLR Hydraulic Excavator effective for a range of challenging projects.


Liugong 930E XLR Hydraulic Excavator stands out with several unique selling points. Its Intelligent Power Control (IPC) System optimizes fuel efficiency and power output, ensuring maximum operational efficiency with reduced environmental impact. Powered by a 188 hp engine, 930E XLR Hydraulic Excavator delivers the strength needed for demanding tasks like land clearing, dredging, waste handling, and forestry operations. Liugong 930E XLR is built to be extra strong and reliable, capable of withstanding the most challenging environments, ensuring long-term performance. Additionally, the maximum operator comfort is a priority, with a spacious, ergonomic cabin, intuitive controls, and low noise levels, promoting a productive and comfortable working experience.

Liugong 930E XLR Key Specifications

Liugong 930E XLR Features

Engine

Model QSB7
Engine Gross Power 188 hp @ 2050 rpm
Max. Torque 800 Nm @ 1200 rpm
Displacement 6.7 L

Undercarriage

No. of Shoes 51
No. of Upper Rollers 2
No. of Bottom Rollers 9
Track Shoe Width 800 mm

Swing System

Max. Swing Speed 12 rpm
Min. Swing Radius 6522 mm

Drive and Brake

Max. Travel Speed 5.1 km/h
Gradeability 70%(35°)

Hydraulic System

Main Pump Type Two variable displacement piston pumps
Main Pump max. Oil Flow 2 x 240 lpm
Swing Circuit 28.5 MPa
Travel Crcuit 34.3 MPa

Refill Capacity

Fuel Tank Capacity 540 L
Engine Oil and Filter 25 L
Hydraulic Tank Capacity 210 L

Weight and Ground Pressure

Operating Weight 30200 kg

Dimensions

Overall Length 15625 mm
Overall Height 3050 mm
Bucket Capacity 0.5 m³
Track Gauge 1710 mm
Ground Clearance 440 mm

Working Ranges

Max. Dumping Height 14305 mm
Max. Digging Depth 17209 mm
Max. Digging Reach 20882 mm
Max. Digging Reach at Ground Level 20803 mm
Boom Length 11350 mm
Arm Length 9550 mm
