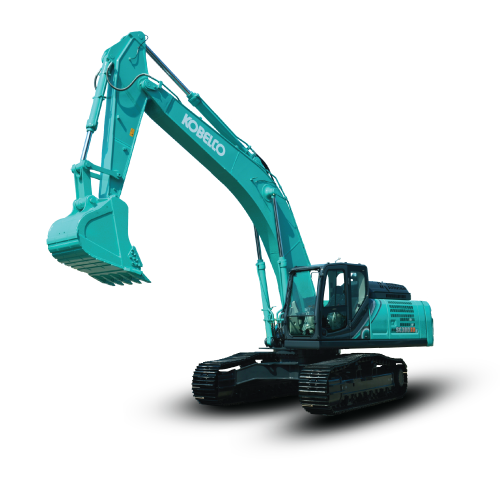

Kobelco SK380XDLC Excavator

The Kobelco SK380XDLC excavator is ideal for construction, infrastructure development, and waste management. This machine is built to tackle various tasks such as digging, trenching, excavating, loading, and unloading materials.

Powered by a ntercooler turbo-charger diesel engine, this machine offers maximum output and minimal maintenance. Its unique variable displacement pump hydraulic system delivers quick work and smooth operation.

The Kobelco SK380XDLC excavator has a 2.3 m³ large backhoe bucket, and its maximum forward speed is up to 5.6 km/h. These features deliver strength, speed, and stability in any terrain.

*Ex-Showroom Price

₹ 1.19 - 1.22 Crore

Kobelco SK380XDLC Key Specifications

Kobelco SK380XDLC Features

Engine

Model HINO J08E

Type Direct injection, water-cooled, 4-cycle, 6-cylinder diesel engine with intercooler turbo-charger

Engine Gross Power 197 kw @ 2100 rpm

Max. Torque 969 Nm @ 1600 rpm

Displacement 7.6 L

Swing System

Max. Swing Speed 10 rpm

Min. Swing Radius 4.31-4.49 m

Drive and Brake

Max. Travel Speed 5.6 km/h

Gradeability 70%(35°)

Hydraulic System

Main Pump Type Two Variable displacement piston pumps + one gear pump

Main Pump max. Oil Flow 2 x 294 lpm, 1 x 21 lpm

Swing Circuit 29 MPa

Travel Circuit 34.3 MPa

Refill Capacity

Fuel Tank Capacity 503 L

Engine Oil and Filter 28.5 L

Hydraulic System 410 L

Hydraulic Tank Capacity 245 L

Weight and Ground pressure

Operating Weight 37400-37800 kg

Ground pressure 70 kPa

Dimensions

Overall Length 11300-11510 mm

Overall Height 3430-3770 mm

Bucket Capacity 1.6-2.3 m³

Track Gauge 2590 mm

Ground Clearance 500 mm

Working Ranges

Max. Dumping Height 7.06-7.37 m

Max. Digging Depth 6.51-7.56 m

Max. Vertical Wall Digging Depth 4.33-6.48 mm

Max. Digging Reach 10.36-11.26 m

Max. Digging Reach at Ground 10.15-11.06 m

Boom Length 6.50 m

Arm Length 2.25-3.3 m

Bucket Digging Force 220 kN

Arm Crowding Force 232 kN

Top Applications of Kobelco SK380XDLC

1. Demolition

The Kobelco SK380XDLC excavator is built to perform well in tough construction conditions and provide higher productivity and stability.

2. Mining Sites

The Kobelco SK380XDLC excavator's swing system helps load and unload materials faster in the mining operations.

3. Utility Installations

The Kobelco SK380XDLC excavator comes with a large fuel storage capacity, which can reduce frequent refuelling and complete work after long working hours.

4. Road Construction

The Kobelco SK380XDLC excavator comes with a huge backhoe bucket capacity, which can increase work productivity on road construction operations.

5. Infrastructure Development

Its digging depth capacity improves work efficiency and provides higher performance on complex infrastructure operations.
