Liugong 924E XD

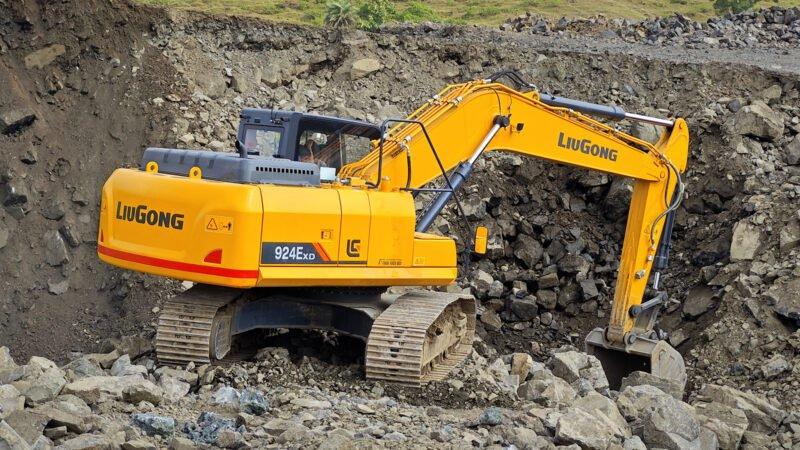

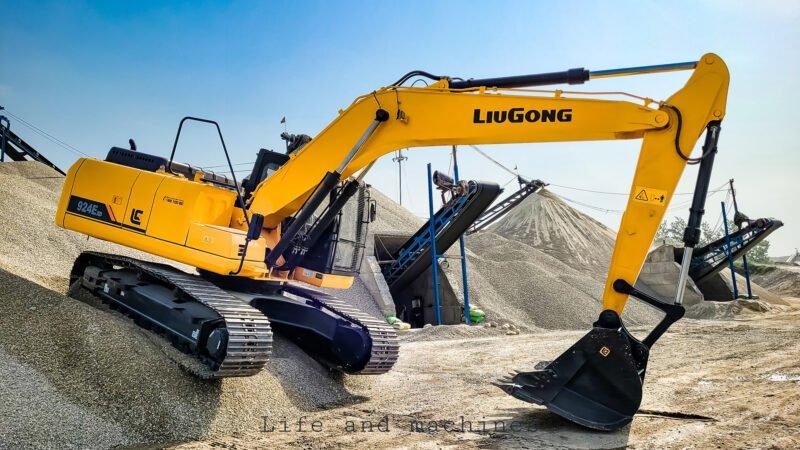

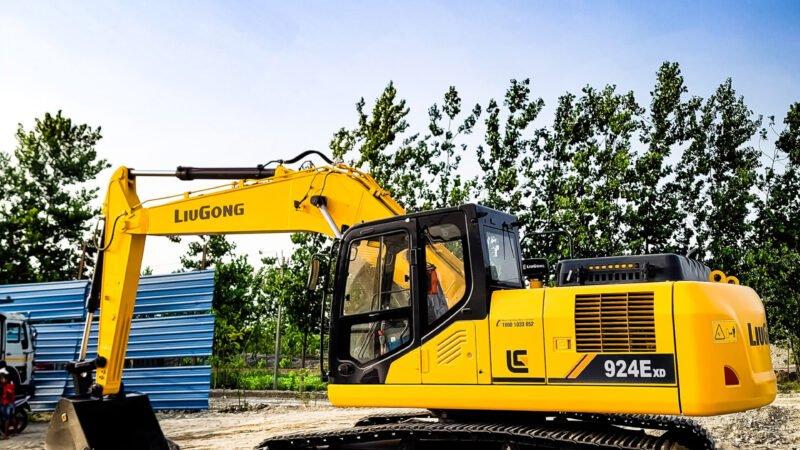

Excavator 924E XD by Liugong is a strong and flexible equipment designed to perform a variety of excavation operations with ease and efficiency. The 924E XD features a powerful 166 HP engine that runs at 2,050 rpm. With an operational weight of 23,600 kg, the 924E XD offers exceptional stability and longevity. The 924E XD, with a maximum digging depth of 6,100 mm, is versatile enough to handle a variety of excavation operations. The 24E XD has a basic bucket capacity of 1.25 m³. The 924E XD has a considerable torque of 158 Nm at 1,300 rpm, assuring robust digging performance and increased capabilities for difficult excavation work. Liugong's Excavator 924E XD is intended to provide outstanding performance, efficiency, and durability in a variety of excavation applications.

Liugong 924E XD Features

Engine
Make	CUMMINS	Engine Model	QSB7
Gross Power	166 hp @ 2050 rpm	Peak Torque	158 N-m @ 1300 rpm
Number of Cylinders	6	Displacement	6.7 L
Aspiration	Turbocharged CAC

Hydraulic System
Type	Two Variable Displacement Piston Pumps	Maximum Flow	2 x 224 LPM

Pilot Pump
Type	Gear Pump	Maximum Flow	19 LPM

Relief Valve Setting
Implement	34.3/37.3 MPa	Travel Circuit	34.3 MPa
Swing Circuit	28.5 MPa	Pilot Circuit	3.9 MPa

Swing System
Swing Speed	12 rpm	Swing Torque	68591 N-m
Swing Motor	Axial Piston Motor	Swing Reduction	Planetary Gear
Swing Bearing	Lubrication Grease Bathed

Drive System
Drive Motor	Axial Piston Motor	Drive Reduction	Planetary Gear
Max. Drawbar Pull	245 kN	Travel Speed (High/Low)	(5.1/3.0) km/h
Gradeability	70%) (35°)

Buckets
HD Bucket	1.15 m³	GP Bucket	1.25 m³
Light Duty Bucket	1.35 m³

Undercarriage
Center Frame	X-Plate	Track Frame	Box Type
Track Shoe Each Side	49	Track Guard	600 mm
Shoe Width, Triple Grouser	3	Bottom Rollers Each Side	9
Top Rollers Each Side	2	Track Shoe Thickness	12.5 mm

Service Capacities
Fuel Tank	420 L	Engine Oil	25 L
Final Drive	3.4 x 2 L	Cooling System	30 L
Hydraulic System Total	330 L	Swing Device	4.6 L
Hydraulic Tank	180 L

Electrical System
Voltage	24 V	Battery	12 V, 100Ah x2
Working Lights	5

Operating Weight
Operating Weight	23600 kg	Shoe Ground Pressure	45.2 kPa

Working Range
Boom Leangth	5710 mm	Arm Leangth	2400 mm
Max. Digging Reach	9328 mm	Max. Digging Reach on Ground	9136 mm
Max. Digging Depth	6100 mm	Max. Digging Depth 2.44m (8')	5820 mm
Max. Vertical Wall Digging Depth	4408 mm	Max. Cutting Height	9464 mm
Max. Dumping Height	6832 mm	Min. Front Swing Radius	3064 mm
Bucket Digging Force (ISO)	159 kN	Arm Digging Force (ISO)	125 kN
Bucket Tip Radius	1480 mm

Engine
Make	CUMMINS
Engine Model	QSB7
Gross Power	166 hp @ 2050 rpm
Peak Torque	158 N-m @ 1300 rpm
Number of Cylinders	6
Displacement	6.7 L
Aspiration	Turbocharged CAC

Hydraulic System
Type	Two Variable Displacement Piston Pumps
Maximum Flow	2 x 224 LPM

Pilot Pump
Type	Gear Pump
Maximum Flow	19 LPM

Relief Valve Setting
Implement	34.3/37.3 MPa
Travel Circuit	34.3 MPa
Swing Circuit	28.5 MPa
Pilot Circuit	3.9 MPa

Swing System
Swing Speed	12 rpm
Swing Torque	68591 N-m
Swing Motor	Axial Piston Motor
Swing Reduction	Planetary Gear
Swing Bearing	Lubrication Grease Bathed

Drive System
Drive Motor	Axial Piston Motor
Drive Reduction	Planetary Gear
Max. Drawbar Pull	245 kN
Travel Speed (High/Low)	(5.1/3.0) km/h
Gradeability	70%) (35°)

Buckets
HD Bucket	1.15 m³
GP Bucket	1.25 m³
Light Duty Bucket	1.35 m³

Undercarriage
Center Frame	X-Plate
Track Frame	Box Type
Track Shoe Each Side	49
Track Guard	600 mm
Shoe Width, Triple Grouser	3
Bottom Rollers Each Side	9
Top Rollers Each Side	2
Track Shoe Thickness	12.5 mm

Service Capacities
Fuel Tank	420 L
Engine Oil	25 L
Final Drive	3.4 x 2 L
Cooling System	30 L
Hydraulic System Total	330 L
Swing Device	4.6 L
Hydraulic Tank	180 L

Electrical System
Voltage	24 V
Battery	12 V, 100Ah x2
Working Lights	5

Operating Weight
Operating Weight	23600 kg
Shoe Ground Pressure	45.2 kPa

Working Range
Boom Leangth	5710 mm
Arm Leangth	2400 mm
Max. Digging Reach	9328 mm
Max. Digging Reach on Ground	9136 mm
Max. Digging Depth	6100 mm
Max. Digging Depth 2.44m (8')	5820 mm
Max. Vertical Wall Digging Depth	4408 mm
Max. Cutting Height	9464 mm
Max. Dumping Height	6832 mm
Min. Front Swing Radius	3064 mm
Bucket Digging Force (ISO)	159 kN
Arm Digging Force (ISO)	125 kN
Bucket Tip Radius	1480 mm
