Liugong 4180D
Liugong 4180D

Liugong 4180D

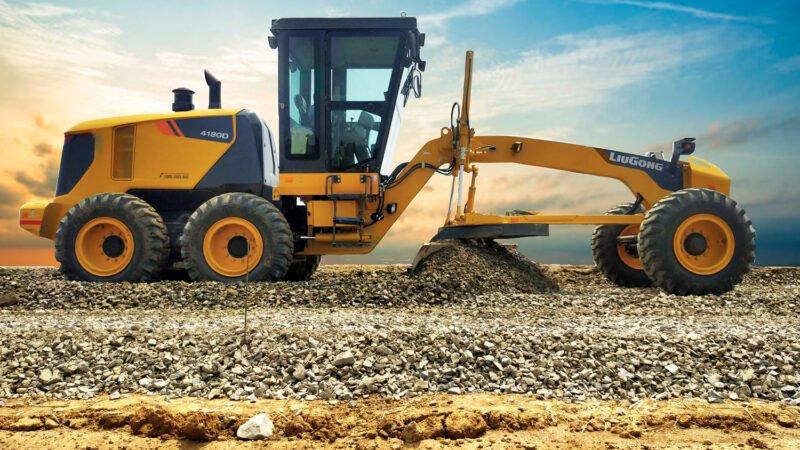

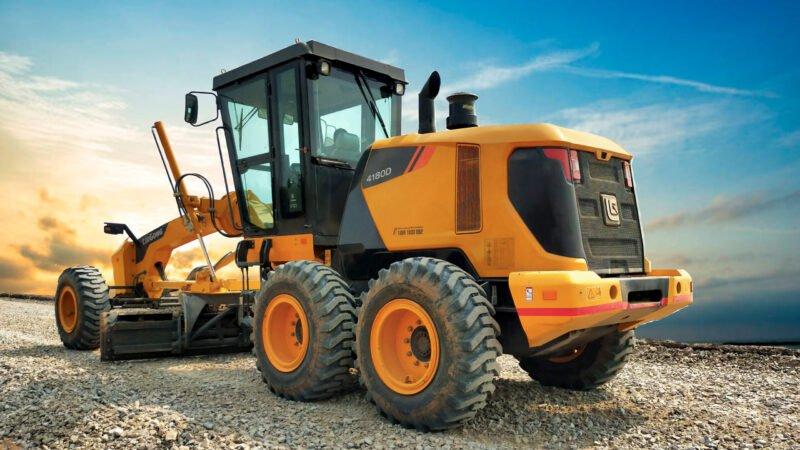

Liugong 4180D Motor Grader is a versatile machine designed for a range of applications. In road construction and maintenance, it offers precise control for grading, shaping, and smoothing surfaces, ensuring roads are constructed and maintained to the highest standards. Its powerful engine and heavy-duty construction make this heavy duty motor grader ideal for earthmoving, including clearing, leveling, and transporting soil and materials. The 4180D Motor Grader excels in grading and resurfacing, providing exceptional precision and efficiency for leveling ground and preparing surfaces for new construction or roadwork. Additionally, in landscaping, Liugong 4180D is perfect for leveling terrain for parks, gardens, and other projects, ensuring smooth, even surfaces.


Liugong 4180D is equipped with a 180 hp engine, delivering solid power for a wide range of grading and earthmoving tasks. It has an operating weight of 15,000 kg, ensuring stability and strength for demanding applications. 4180D Motor Grader features a maximum blade lift above ground of 600 mm, allowing for versatile blade positioning and precise grading. With a wheelbase of 6,230 mm, it provides excellent maneuverability and stability, making Liugong 4180D Motor Grader ideal for efficient grading and roadwork tasks in various environments.


Liugong 4180D Motor Grader offers several unique selling points that enhance its performance and value. It is powered by a CEV Stage IV compliant engine, ensuring that it meets the latest environmental standards while delivering optimal performance. Designed for maximum efficiency, 4180D Motor Grader features an optimized powertrain and implementation units, providing smooth operation and low fuel consumption. The well-designed AC cab offers a spacious and comfortable working environment, equipped with features that enhance operator comfort during long shifts. Additionally, Liugong 4180D is built with ground-level serviceability, allowing easy access to service points for quick maintenance, reducing downtime and ensuring continuous operation.

Liugong 4180D Key Specifications

Liugong 4180D Features

Engine

Model H6 Engine
No. of Cylinders 6
Engine Gross Power 180 hp @ 2200 RPM
Max. Torque 700 Nm @ 1600 RPM
Displacement 6.7 L
Bore 107 mm
Stroke 124 mm

Transmission

Max. Forward Speed 43 km/h
Max. Reverse Speed 32 km/h

Axles

Front Axle Type All Welded Steel Frame
Rear Axle Type Four Wheel Drive
Oscillation Angle 15°

Drive and Brake

Service Brake Fully Hydraulic, Shoe
Parking Brake Manual, Mechanical Shoe Brake

Steering System

Steering Type Front Wheel Steering
Steering Angle 50°
Articulation Angle 27°
Min. Turning Radius 7.8 m

Tyres

Tyre Size 17.5-25 PR16

Hydraulic System

Main Pump Gear Pump

Refill Capacity

Fuel Tank Capacity 275 L
Transmission Oil Capacity 33 L

Blade Range

Max. Lift above Ground 600 mm

Operating Specifications

Operating Weight 15000 kg

Dimensions

Overall Length 9090 mm
Overall Height 3670 mm
Wheelbase 6230 mm
