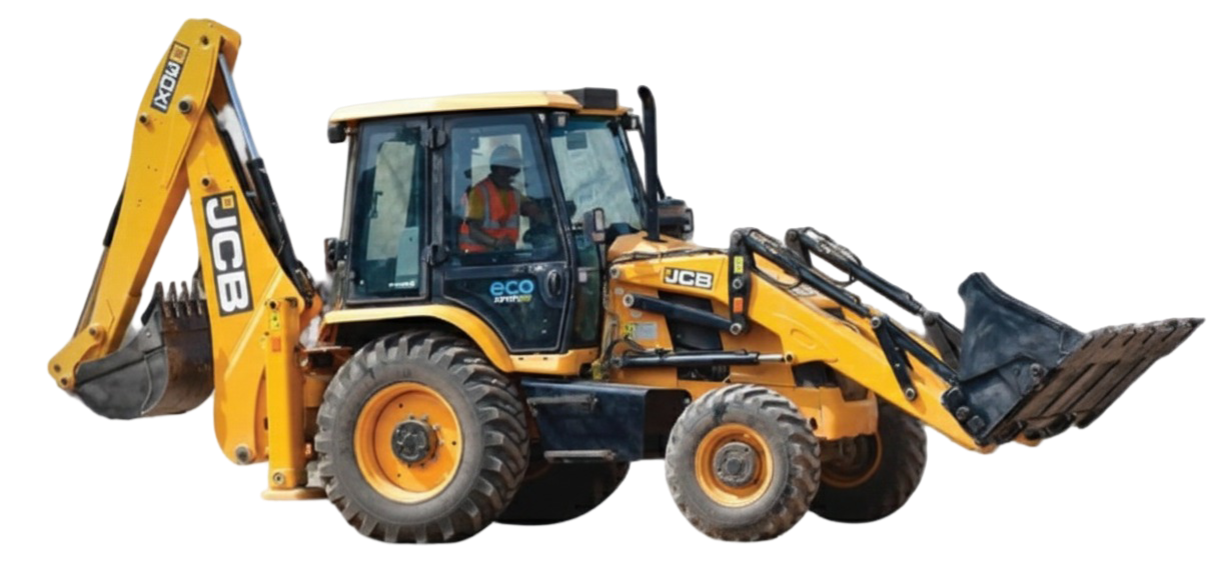

JCB 3DX Plus Backhoe Loader

The JCB 3DX Plus backhoe loader is commonly used in applications such as construction, agriculture, infrastructure development, and waste management. It also performs various tasks like digging, trenching, small excavation, loading, and unloading materials.

The JCB 3DX Plus backhoe loader comes with a JCB 430 engine, and its fuel-efficient BS-5 (CEV) technologies provide higher performance.

The JCB 3DX Plus backhoe loader's 7510 kg operating weight and 4.77 m maximum digging depth capacity offer higher productivity with lower operational costs.

*Ex-Showroom Price

₹ 30 - 32 Lakhs

JCB 3DX Plus Key Specifications

JCB 3DX Plus Features

Dump Height 2.74 m

Load over Height 3.32 m

Reach at Ground 1.52 m

Max. Reach at Full Height 1.15 m

Arm Loader Break-out Force 5635 kgf

Loader Bucket Capacity 1.1 m³

Max. Digging Depth 4.77 m

Bucket Pin Height 3.54 m

Reach at Full Height (Bucket Dumped) 0.88 m

Below Ground level Dig Depth 0.07 m

Rollback at Ground 45°

Bucket Loader Break-out Force 5272 kgf

Max. Working Height 5.97 m

Max. Load over Height 4.18 m

Bucket Rotation Power 185°

Side reach to Center Line of Machine 6.02 m

Dipper Tearout Force (Arm Crowding Force) 3257 kgf

Engine

Make JCB

Model 430

Engine Gross Power 74 HP (55 KW) @ 2200 rpm

Max. Torque 440 Nm @ 1150 rpm

Electrical System

Battery 12 V, 130 Ah

Transmission

Max. Forward Speed 36 km/h

Max. Reverse Speed 10.5 km/h

Transmission Type Synchro shuttle transmission

Steering System

Steering Type Power steering

Drive and Brake

Service Brake JCB ‘Q’ brakes, hydraulically actuated, dual line, self adjusting (compensated), oil immersed, multi-disc

Parking Brake Hand operated, disc brakes

Tyres

Front Tyre Size 9x16-16 PR

Rear Tyre Size 16.9x28-12 PR

Hydraulic System

Main Pump Flow 114 lpm @ 2000 rpm

Hydraulic System Relief Pressure 270 bar

Refill Capacity

Fuel Tank Capacity 128 L

Engine Oil Capacity 15 L

Transmission Oil Capacity 17.5 L

Rear Axle Oil Capacity 20 L

Dimensions

Dump Height 2.74 m

Load over Height 3.32 m

Reach at Ground 1.52 m

Max. Reach at Full Height 1.15 m

Arm Loader Break-out Force 5635 kgf

Loader Bucket Capacity 1.1 m³

Max. Digging Depth 4.77 m

Bucket Pin Height 3.54 m

Reach at Full Height (Bucket Dumped) 0.88 m

Below Ground level Dig Depth 0.07 m

Rollback at Ground 45°

Bucket Loader Break-out Force 5272 kgf

Max. Working Height 5.97 m

Max. Load over Height 4.18 m

Bucket Rotation Power 185°

Side reach to Center Line of Machine 6.02 m

Dipper Tearout Force (Arm Crowding Force) 3257 kgf

Top Applications of JCB 3DX Plus

1. Forest Work

The JCB 3DX Plus is a suitable choice for forest activities. Its multi-bucket attachment options handle many tasks and provide maximum productivity with minimal environmental impact.

2. Mining Operations

The JCB 3DX Plus is built to handle various mining operations such as hauling and moving materials on the worksite. Its fuel-efficient engine delivers higher productivity without sacrificing power.

3. Construction

Built from high-strength steel and robust components, the JCB 3DX Plus provides maximum productivity and reduced downtime on construction sites. Its strong structure offers long-lasting performance with lower operational costs.

4. Road Construction

Designed for road construction, its dual functionality tackles various tasks on the work site. The JCB 3DX Plus efficiently transports materials without compromising on power.

5. Agriculture

The JCB 3DX Plus enhances agriculture productivity with its features like an advanced hydraulic system and power steering. It improved operational efficiency and reduced fuel consumption.
