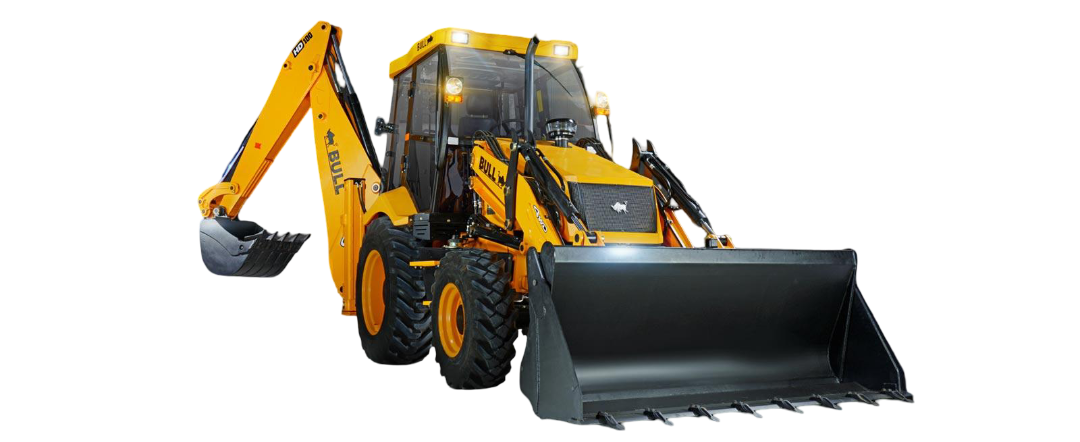

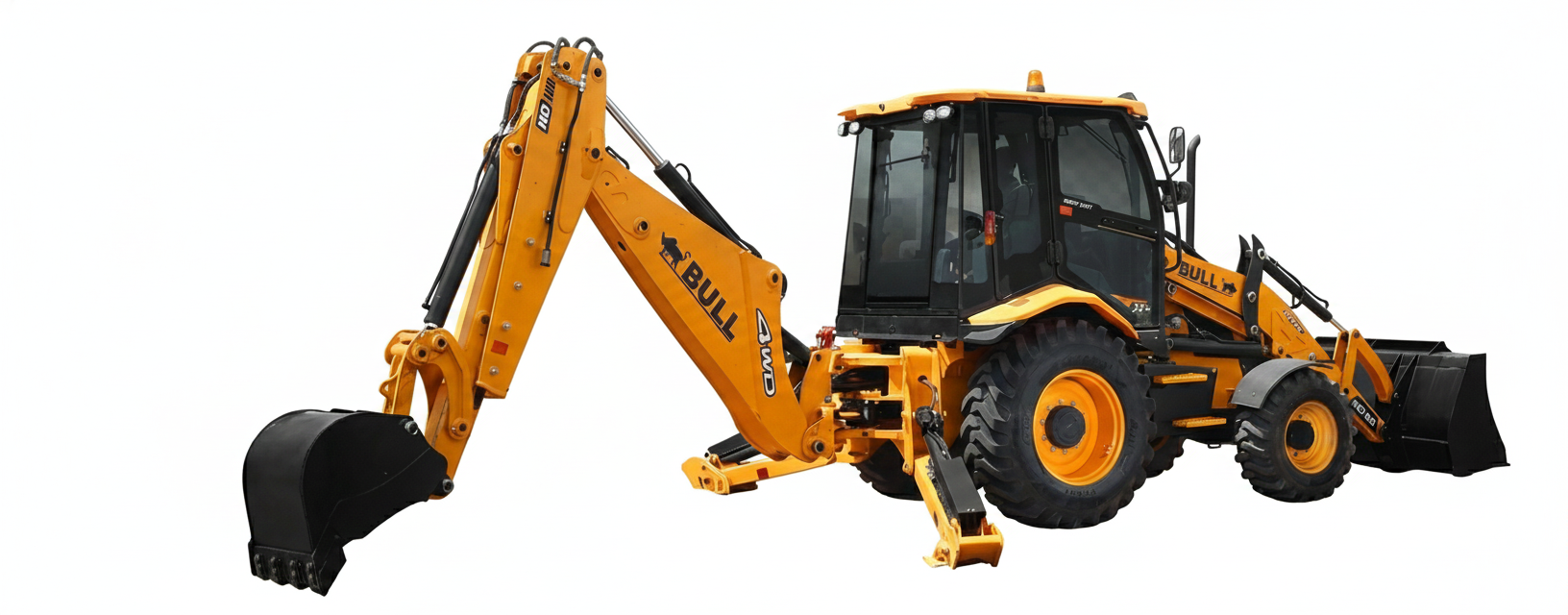

Bull HD 100

The Bull HD 100 backhoe loader serves in many industries, like construction, utility works, and road maintenance, and can perform multiple tasks, such as digging, material handling, trenching, and more, without additional equipment.

Bull HD 100 delivers features including better traction with a heavy-duty axle, a unique booster bucket option with the tallest dumping, multi-attachment options, and much more. Bull HD 100 is built to handle difficult tasks.

The Bull HD 100 is powered by a 410 Nm high-torque engine with a ZF power shift transmission. It reaches a maximum speed of 40 km/h for faster work efficiency and supports material handling with its 8200 kg operating weight capacity.

Bull HD 100 Features

Dump Height 2.96 m

Load over Height 3.39 m

Reach at Ground 1.47-1.60 m

Max. Reach at Full Height 1.28-1.42 m

Arm Loader Break-out Force 5642 kgf

Loader Bucket Capacity 1.1 m³

Bucket Pin Height 3.61 m

Reach at Full Height (Bucket Dumped) 0.89-1.1 m

Below Ground Level Dig Depth 0.08-0.1 m

Rollback at Ground 49°-50°

Bucket Loader Break-out Force 8793 kgf

Max. Working Height 5.92-6.77 m

Max. Load over Height 4.14-5.02 m

Bucket Rotation Power 188°

Side Reach to Center Line of Machine 6.80-7.91 m

Dipper Tearout Force (Arm Crowding Force) 3316 kgf

Engine

Make Perkins

Model 1104D-44TA

Engine Gross Power 100 HP(74.5 KW) @ 2200 rpm

Max. Torque 410 Nm @ 1400 rpm

Electrical System

Battery 12 V Battery system (180 Ah)

Transmission

Max. Forward Speed 37 km/h

Max. Reverse Speed 22 km/h

Transmission Type ZF power shift transmission with integral torque converter

Steering System

Steering Type Power steering

Tyres

Front Tyre Size 9x16-16 PR (2WD), 12.5/80x18-12 PR (4WD)

Rear Tyre Size 16.9x28-12 PR, 14x25-20 PR

Hydraulic System

Main Pump Flow 145 lpm @ 2200 rpm

Dimensions

Dump Height 2.96 m

Load over Height 3.39 m

Reach at Ground 1.47-1.60 m

Max. Reach at Full Height 1.28-1.42 m

Arm Loader Break-out Force 5642 kgf

Loader Bucket Capacity 1.1 m³

Bucket Pin Height 3.61 m

Reach at Full Height (Bucket Dumped) 0.89-1.1 m

Below Ground Level Dig Depth 0.08-0.1 m

Rollback at Ground 49°-50°

Bucket Loader Break-out Force 8793 kgf

Max. Working Height 5.92-6.77 m

Max. Load over Height 4.14-5.02 m

Bucket Rotation Power 188°

Side Reach to Center Line of Machine 6.80-7.91 m

Dipper Tearout Force (Arm Crowding Force) 3316 kgf
