Hyundai HX35AZ
Hyundai HX35AZ

Hyundai HX35AZ

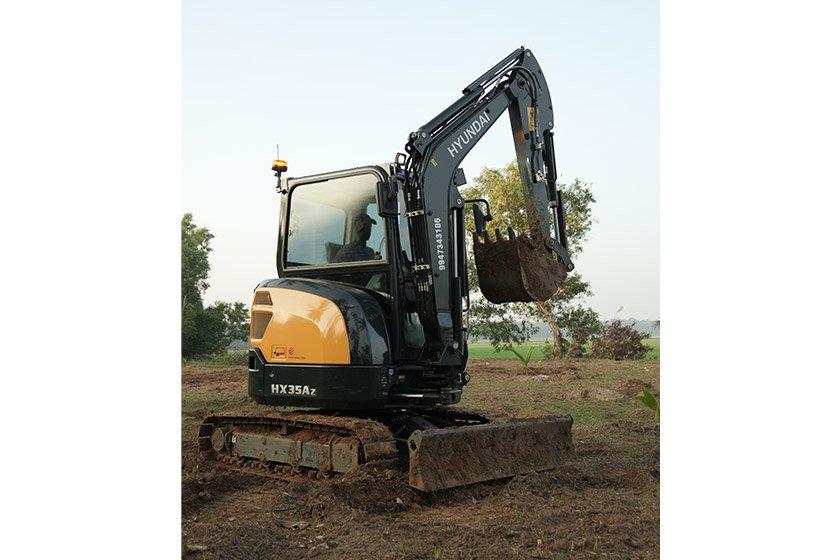

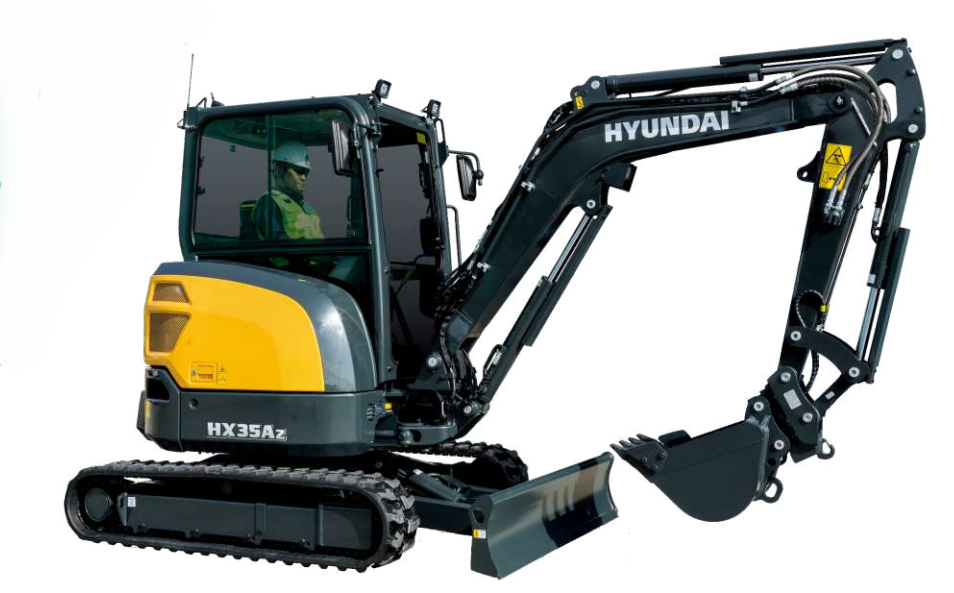

Hyundai HX35AZ Mini Excavator is designed to excel across various industries and applications, making it a versatile choice for numerous tasks. In waste management, its compact design allows for maneuverability in confined spaces, facilitating efficient material sorting and transfer. For forestry applications, the HX35AZ Mini Excavator offers precision and control, making it ideal for land clearing, small-scale digging, and tree planting. In marine construction, this mini excavator is equipped to handle excavating tasks near water, supporting essential activities like dredging, pier work, and dock construction. Additionally, its compact and powerful build is well-suited for snow removal, enabling Hyundai HX35AZ to effectively clear snow in narrow areas, sidewalks, and smaller roadways.


Hyundai HX35AZ is powered by an 18.5 kW engine, offering a fuel tank capacity of 46.8 liters for extended operation. HX35AZ Mini Excavator features a maximum digging depth of 2980 mm, making it versatile for various applications, while its operating weight of 3880 kg ensures stability and performance in a compact design. This combination of specifications enables the Hyundai HX35AZ Mini Excavator to excel in tasks such as waste management, forestry, marine construction, and snow removal, particularly in confined spaces.


Hyundai HX35AZ Mini Excavator boasts several unique selling points that enhance its performance and reliability in various applications. Powered by the robust Kubota D1703 Diesel Engine, it is designed for durability and optimized for fuel efficiency, ensuring reliable operation in demanding environments. HX35AZ Mini Excavator features a variable displacement tandem axis piston hydraulic pump that provides operators with enhanced hydraulic power and control, facilitating smooth operation across varied tasks. Its open center hydraulic system delivers responsive hydraulic power, allowing for delicate operations with ease. Additionally, the integrated anti-theft system adds a layer of security, preventing unauthorized access and ensuring safe storage on-site, making Hyundai HX35AZ a dependable choice for any job.

Hyundai HX35AZ Key Specifications

Hyundai HX35AZ Features

Engine

Model Kubota D1703
Type Vertical, Water Cooled, 4 Cycle, Diesel Engine
Engine Gross Power 25.2 HP(18.5 KW)
Max. Torque 97.4 Nm
Displacement 1.64 L

Undercarriage

Track Shoe Width 300 mm

Swing System

Max. Swing Speed 9.4 rpm
Min. Swing Radius 2350 mm

Drive and Brake

Max. Travel Speed 4.4 km/h

Hydraulic System

Main Pump Type Variable Displacement Tandem Axial Piston Pumps
Main Pump max. Oil Flow 2 x 37.4 LPM + 23.1 LPM

Refill Capacity

Fuel Tank Capacity 46.8 L
Hydraulic System 63 L
Hydraulic Tank Capacity 36 L

Weight and Ground Pressure

Operating Weight 3880 kg
Ground Pressure 0.36 kg/cm²

Dimensions

Overall Length 4783 mm
Overall Height 2505 mm
Bucket Capacity 0.11 m³
Track Gauge 1440 mm
Ground Clearance 167 mm

Working Ranges

Max. Dumping Height 3415 mm
Max. Digging Depth 2980 mm
Max. Vertical Wall Digging Depth 2250 mm
Max. Digging Reach 5290 mm
Max. Digging Reach at Ground Level 5170 mm
