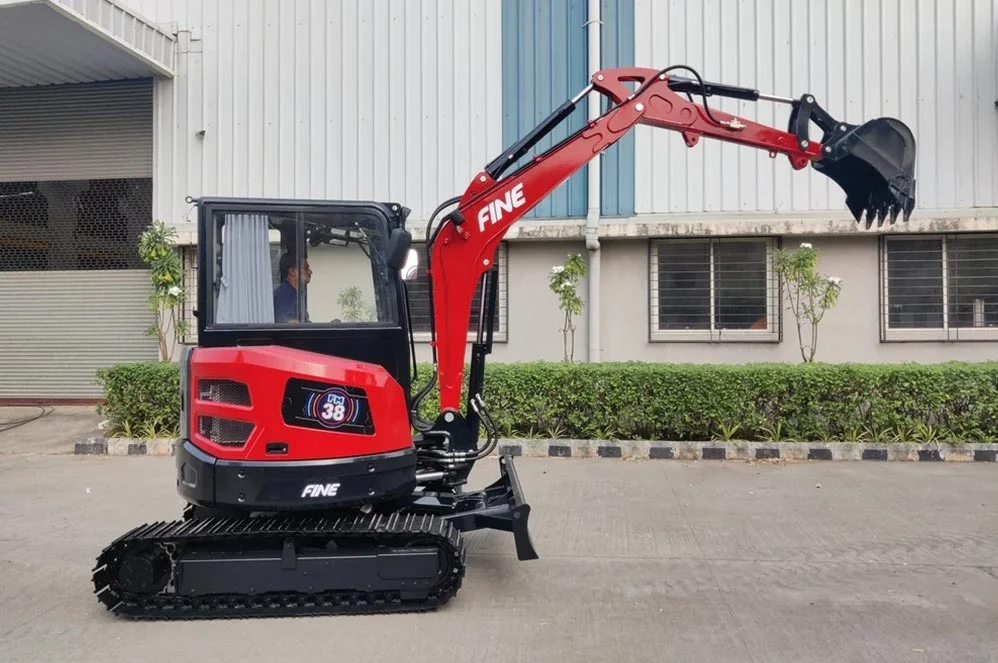

Fine FM38 Excavator

The Fine FM38 mini excavator is designed for a wide range of applications such as utility installation, quarrying, mining, road construction, and forestry. Additionally, it handles various tasks like material handling, lifting heavy loads, snow removal, building foundations, and dumping materials.

The Fine FM38, combined with a Kubota D1703 diesel engine, provides high performance and fuel efficiency. Its advanced hydraulic system offers smooth operations without sacrificing performance.

Its powerful engine generates 24.40 HP at 2200 rpm and 0.12 m³ bucket capacity, delivering lower fuel consumption and enhanced productivity.

*Ex-Showroom Price

₹ 27 - 29 Lakhs

Fine FM38 Key Specifications

Fine FM38 Features

Engine

Engine Gross Power 24.40 hp(18.2 kw) @ 2200 rpm

Undercarriage

Track Shoe Width 350 mm

Swing System

Min. Swing Radius 860 mm

Drive and Brake

Max. Travel Speed 4.4 km/h

Hydraulic System

Main Pump Type Piston pump

Main Pump max. Oil Flow 88 lpm

Refill Capacity

Fuel Tank Capacity 42 L

Hydraulic System 20.5 L

Hydraulic Tank Capacity 40 L

Weight and Ground Pressure

Operating Weight 3810 kg

Dimensions

Overall Length 4915 mm

Overall Height 2525 mm

Bucket Capacity 0.12 m³

Ground Clearance 305 mm

Working Ranges

Max. Dumping Height 3280 mm

Max. Digging Depth 3208 mm

Max. Vertical Wall Digging Depth 2957 mm

Boom Length 2535 mm

Arm Length 1400 mm

Bucket Digging Force 30 kN

Arm Crowding Force 18 kN

Top Applications of Fine FM38

1. Forest Work

The Fine FM38 mini excavator's powerful engine efficiently handles heavy-duty operations and increased productivity in forest activities.

2. Infrastructure Development

The Fine FM38's swing speed helps in enhancing productivity and reducing breakdowns in infrastructure development.

3. Quarrying Operations

Its fuel tank capacity saves time and provides faster work by reducing fuel management effort during the operations.

4. Agriculture

The Fine FM38 mini excavator has a 0.12 m³ bucket capacity that can save time and quickly load materials like sand and agricultural feed into trucks.

5. Utility Installations

Its long arm and digging depth capabilities are ideal for foundation digging. Smoothly installs pipelines and cables in utilities and provides higher productivity.
