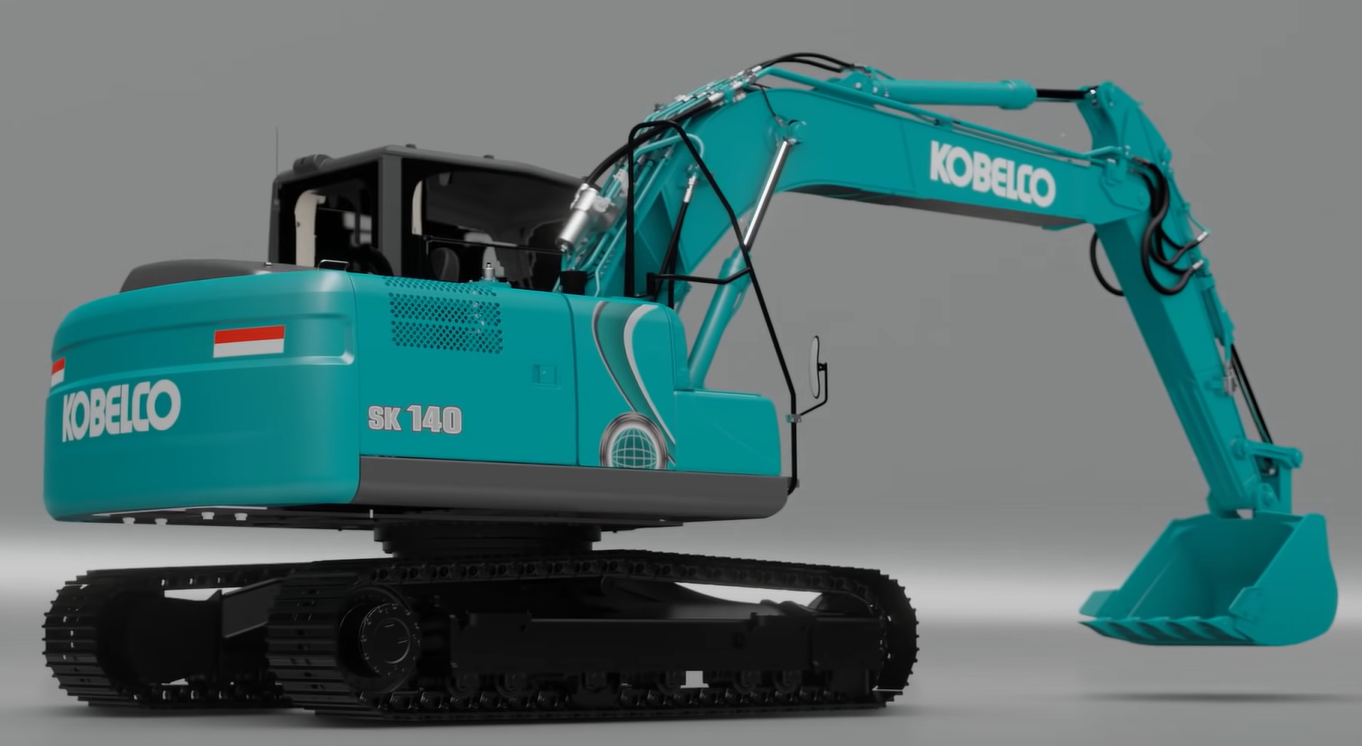

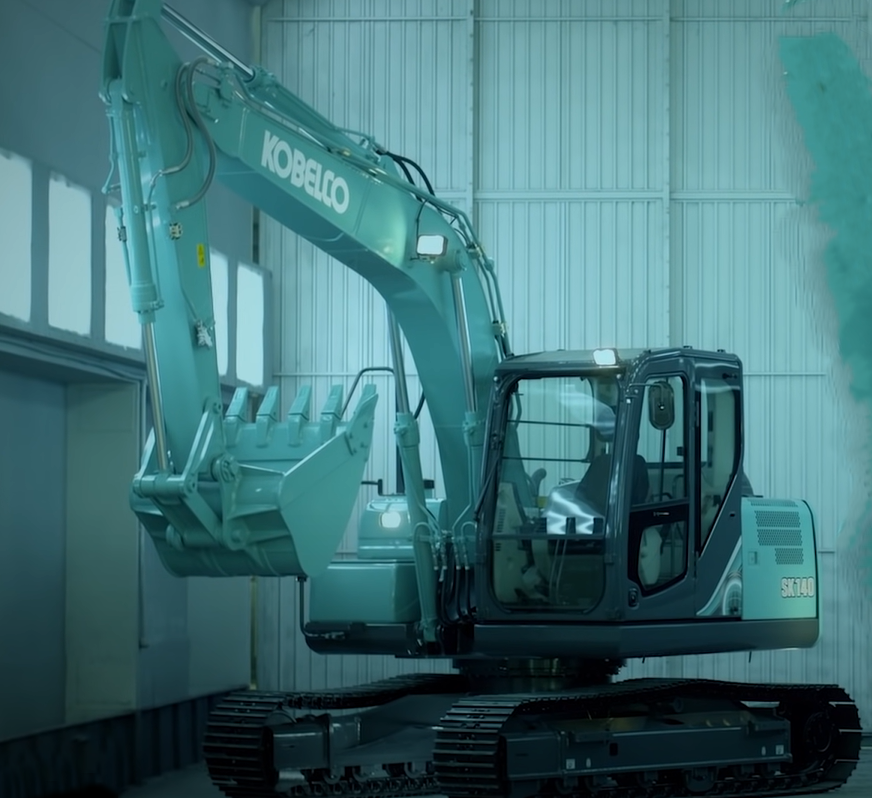

Kobelco SK140 Excavator

The Kobelco SK140 excavator is ideal for construction, infrastructure development, and waste management. This machine is built to tackle various tasks such as digging, trenching, excavating, loading, and unloading materials.

Powered by a four cycle, water cooled diesel engine, this machine offers maximum output and minimal maintenance. Its advanced hydraulic system delivers quick work and smooth operation.

The Kobelco SK140 excavator has a 0.7 m³ large backhoe bucket, and its maximum forward speed is up to 5.7 km/h. These features deliver strength, speed, and stability in any terrain.

*Ex-Showroom Price

₹ 47 - 49 Lakhs

Kobelco SK140 Key Specifications

Kobelco SK140 Features

Engine

Model ISUZU 4JJ1

Type Four cycle, water cooled, overhead camshaft, vertical in-line, direct injection type, with turbocharger

Engine Gross Power 97.9 HP (73 kw) @ 2000 rpm

Max. Torque 365 Nm @ 1600 rpm

Displacement 2.9 L

Swing System

Max. Swing Speed 10.9 rpm

Min. Swing Radius 2.62-2.8 m

Drive and Brake

Max. Travel Speed 5.7 km/h

Gradeability 70%(35°)

Hydraulic System

Main Pump Type 2 Variable displacement pumps + 1 gear pump

Main Pump max. Oil Flow 2 x 130 lpm, 1 x 20 lpm

Swing Circuit 28 MPa

Travel Circuit 34.3 MPa

Refill Capacity

Fuel Tank Capacity 271 L

Engine Oil and Filter 17 L

Hydraulic System 197 L

Hydraulic Tank Capacity 94.5 L

Weight and Ground Pressure

Operating Weight 13000-13300 kg

Ground Pressure 30-41 kPa

Dimensions

Overall Length 7940-7970 mm

Overall Height 2740-3130 mm

Bucket Capacity 0.6-0.7 m³

Track Gauge 1990 mm

Ground Clearance 435 mm

Working Ranges

Max. Dumping Height 5810-6350 mm

Max. Digging Depth 5280-6030 mm

Max. Vertical Wall Digging Depth 4880-5620 mm

Max. Digging Reach 8090-8830 mm

Max. Digging Reach at Ground 7930-8690 mm

Boom Length 4680 mm

Arm Length 2090-2840 mm

Bucket Digging Force 89.2-89.3 kN

Arm Crowding Force 57.9-71.5 kN

Top Applications of Kobelco SK140

1. Mining Sites

The Kobelco SK140 excavator's high-performance Cummins engine helps you achieve higher fuel efficiency during the mining operations.

2. Quarrying Operations

Its huge bucket capacity provides easy material handling and quick loading & unloading of materials. The Kobelco SK140 is ideal for large-scale quarry projects.

3. Waste Management

The Kobelco SK140 hydraulic excavator has a large fuel tank capacity that allows longer working hours and reduced downtime on the dump yards.

4. Road Construction

Its operating capacity improved, digging force and performance on the road construction sites.

5. Construction

Its long arm and digging depth allow you to dig deeper trenches and foundations on the construction sites.
