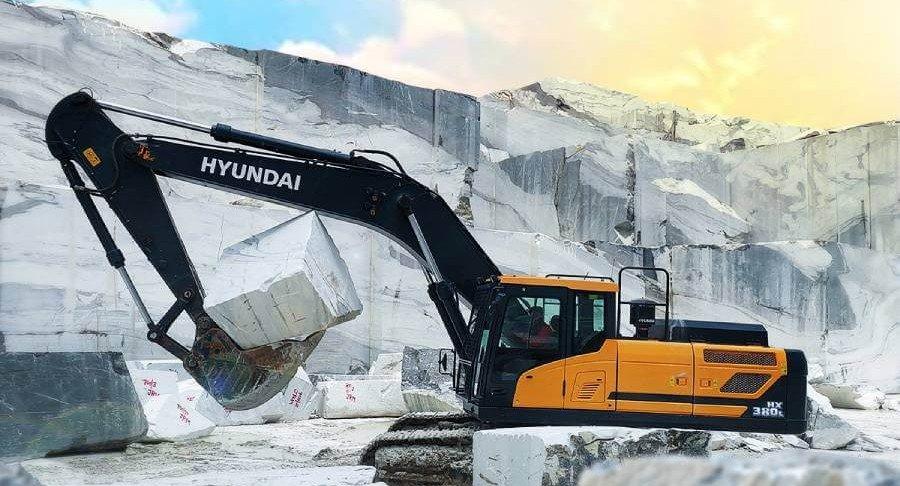

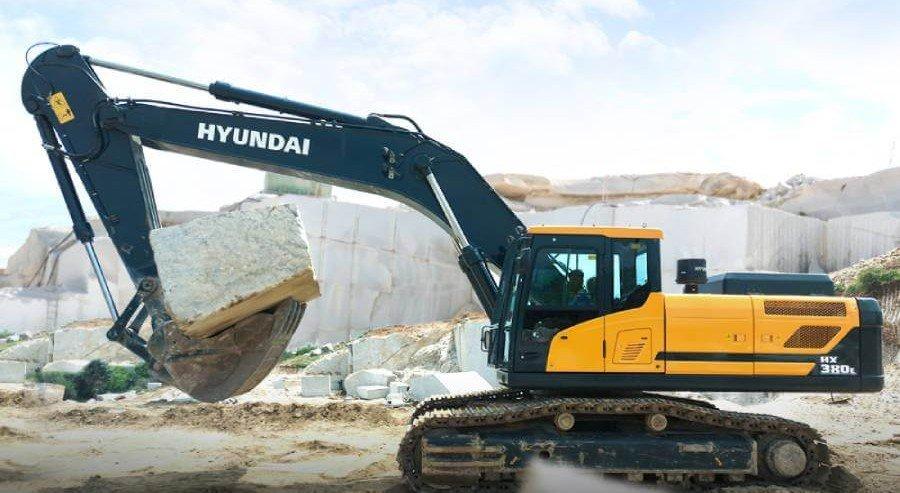

Hyundai HX 380L

Hyundai HX 380L Hydraulic Excavator is purpose-built to optimize productivity and performance across multiple demanding applications. In construction, it efficiently manages site excavation, foundation work, and earthmoving, serving as an essential tool on any job site. For mining operations, its robust design handles material transport, ore loading, and extensive excavation tasks in challenging conditions. HX 380L Hydraulic Excavator proves highly effective in demolition projects, delivering the power needed for structure breakdown, concrete removal, and debris clearing. Additionally, Hyundai HX 380L is well-suited for landscaping, where its precision enables terrain reshaping, trenching, and material handling, making it ideal for complex landscaping work. Hyundai HX 380L boasts key specifications tailored for heavy-duty performance: powered by a 194 kW engine, it has the strength to tackle the toughest tasks. With a substantial fuel tank capacity of 600 liters, HX 380L Hydraulic Excavator offers extended operational hours, reducing downtime. Its impressive maximum digging depth of 6820 mm enables efficient excavation at significant depths, ideal for construction and mining applications. Weighing in at 37,200 kg, the Hyundai HX 380L Hydraulic Excavator combines stability and power, ensuring reliable performance across demanding job sites. Hyundai HX 380L Hydraulic Excavator stands out with its high-performance Hyundai HM 8.3 Diesel Engine, a robust 6-cylinder, 4-cycle engine that offers both power and fuel efficiency to keep operations smooth and reliable. Its Variable Displacement Tandem Axial Piston Hydraulic Pump enhances precision and control, allowing for seamless, responsive movements suited for complex tasks. Equipped with a Multi Wet Disc Type Parking Brake, the Hyundai HX 380L ensures dependable stopping power, ideal for rugged, demanding terrains. Additionally, the Electric, Dial-Type Engine Throttle provides operators with precise engine output control, improving fuel efficiency and adapting to varying workload demands with ease.

Hyundai HX 380L Features

Engine
Model	Hyundai HM8.3	Type	Water Cooled, 4 Cycle, Turbocharged, Charge Air Cooled, Direct Injection
Engine Gross Power	261 HP(195 KW) @ 2000 rpm	Max. Torque	1150 Nm @ 1300 rpm
Displacement	8.3 L

Undercarriage
No. of Shoes	48	No. of Upper Rollers	2
No. of Bottom Rollers	8	Track Shoe Width	600 mm

Swing System
Max. Swing Speed	11.2 rpm	Min. Swing Radius	4620 mm

Drive and Brake
Max. Travel Speed	5 km/h	Gradeability	70% (35°)

Hydraulic System
Main Pump Type	Variable Displacement Tandem Axial Piston Pump	Main Pump max. Oil Flow	2 x 315 LPM
Swing Circuit	300 kg/cm²	Travel Circuit	350 kg/cm²

Refill Capacity
Fuel Tank Capacity	600 L	Engine Oil and Filter	26.5 L
Hydraulic System	414 L	Hydraulic Tank Capacity	210 L

Weight and Ground Pressure
Operating Weight	37200 kg	Ground Pressure	0.71 kg/cm²

Dimensions
Overall Length	11340 mm	Overall Height	3760 mm
Bucket Capacity	2.10 m³	Track Gauge	2590 mm
Ground Clearance	500 mm

Working Ranges
Max. Dumping Height	7120 mm	Max. Digging Depth	6820 mm
Max. Vertical Wall Digging Depth	6320 mm	Max. Digging Reach	10710 mm
Max. Digging Reach at Ground Level	10580 mm	Boom Length	6450 mm
Arm Length	2650 mm	Bucket Digging Force	19100-21600 kgf
Arm Crowding Force	17900-19400 kgf

Engine
Model	Hyundai HM8.3
Type	Water Cooled, 4 Cycle, Turbocharged, Charge Air Cooled, Direct Injection
Engine Gross Power	261 HP(195 KW) @ 2000 rpm
Max. Torque	1150 Nm @ 1300 rpm
Displacement	8.3 L

Undercarriage
No. of Shoes	48
No. of Upper Rollers	2
No. of Bottom Rollers	8
Track Shoe Width	600 mm

Swing System
Max. Swing Speed	11.2 rpm
Min. Swing Radius	4620 mm

Drive and Brake
Max. Travel Speed	5 km/h
Gradeability	70% (35°)

Hydraulic System
Main Pump Type	Variable Displacement Tandem Axial Piston Pump
Main Pump max. Oil Flow	2 x 315 LPM
Swing Circuit	300 kg/cm²
Travel Circuit	350 kg/cm²

Refill Capacity
Fuel Tank Capacity	600 L
Engine Oil and Filter	26.5 L
Hydraulic System	414 L
Hydraulic Tank Capacity	210 L

Weight and Ground Pressure
Operating Weight	37200 kg
Ground Pressure	0.71 kg/cm²

Dimensions
Overall Length	11340 mm
Overall Height	3760 mm
Bucket Capacity	2.10 m³
Track Gauge	2590 mm
Ground Clearance	500 mm

Working Ranges
Max. Dumping Height	7120 mm
Max. Digging Depth	6820 mm
Max. Vertical Wall Digging Depth	6320 mm
Max. Digging Reach	10710 mm
Max. Digging Reach at Ground Level	10580 mm
Boom Length	6450 mm
Arm Length	2650 mm
Bucket Digging Force	19100-21600 kgf
Arm Crowding Force	17900-19400 kgf
