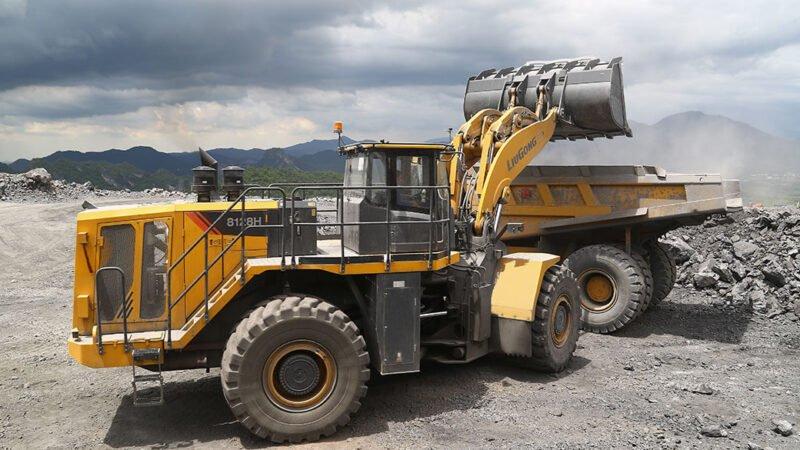

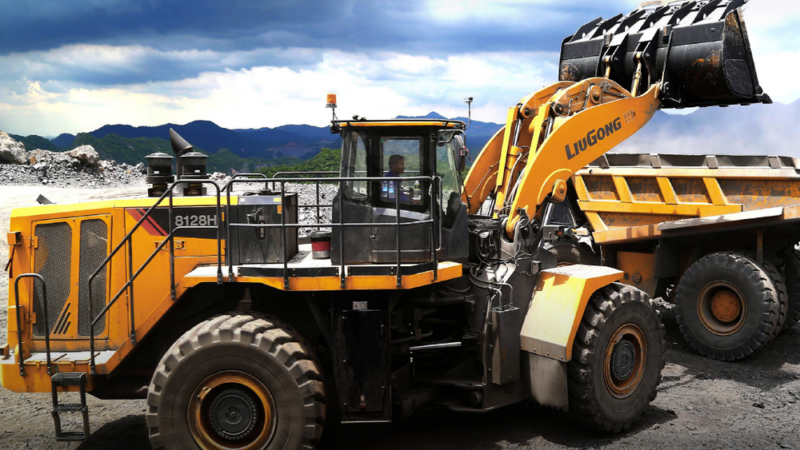

Liugong 8128H

Liugong's Wheel Loader 8128H is a powerful and adaptable equipment that can easily handle the most demanding material handling jobs. The 8128H features a strong 419 kW (569 HP) engine that operates at 1,600 rpm. With an operational weight of 52,000 kg, the 8128H offers exceptional stability and endurance. With a 667 L fuel tank, the 8128H enables for longer operation times, minimizing the need for regular recharging and increasing productivity on the jobsite. The 8128H has a huge bucket capacity of 6.5-12 m³. The 8128H produces a large torque of 2,644 Nm at 1,500 rpm. Liugong's Wheel Loader 8128H is engineered to deliver better performance, efficiency, and durability in a variety of material handling applications.

Liugong 8128H Features

Engine
Model	Cummins QSK19	Engine Gross Power	541-569 hp(398-419 kW) @ 1600 RPM
Max. Torque	2644 Nm @ 1500 RPM	Displacement	19 L

Electrical System
Battery	2 Batteries, 12 V(120 Ah)

Transmission
Transmission Type	Countershaft, Powershift	Max. Forward Speed	36 km/h
Max. Reverse Speed	36 km/h	Torque Converter	Single stage, Three elements

Axles
Front Axle Type	Differential, Limited Slip	Rear Axle Type	Open
Oscillation Angle	12°

Drive and Brake
Service Brake	Wet Multi Disc Brake Type	Parking Brake	External Caliper Disc Brake Type

Steering System
Steering Type	Articulated	Articulation Angle	43°
Turning Radius	8620 mm

Tyres
Tyre Size	35/65 R33

Hydraulic System
Main Pump	Piston Pump

Hydraulic Cycle times
Raise Time	8.5 Sec.	Dump Time	2.1 Sec.
Lower Time	4.0 Sec.	Total Hydraulic Cycle Time	14.6 Sec.

Operating Specifications
Operating Weight	52000 kg

Dimensions
Overall Length	11847 mm	Max. Digging Depth	137 mm
Loader Bucket Breakout Force	40278 kgf	Bucket Capacity	6.5-12 m³
Static Tipping Load	38900 kg	Wheelbase	4550 mm
Ground Clearance	480 mm

Engine
Model	Cummins QSK19
Engine Gross Power	541-569 hp(398-419 kW) @ 1600 RPM
Max. Torque	2644 Nm @ 1500 RPM
Displacement	19 L

Electrical System
Battery	2 Batteries, 12 V(120 Ah)

Transmission
Transmission Type	Countershaft, Powershift
Max. Forward Speed	36 km/h
Max. Reverse Speed	36 km/h
Torque Converter	Single stage, Three elements

Axles
Front Axle Type	Differential, Limited Slip
Rear Axle Type	Open
Oscillation Angle	12°

Drive and Brake
Service Brake	Wet Multi Disc Brake Type
Parking Brake	External Caliper Disc Brake Type

Steering System
Steering Type	Articulated
Articulation Angle	43°
Turning Radius	8620 mm

Tyres
Tyre Size	35/65 R33

Hydraulic System
Main Pump	Piston Pump

Hydraulic Cycle times
Raise Time	8.5 Sec.
Dump Time	2.1 Sec.
Lower Time	4.0 Sec.
Total Hydraulic Cycle Time	14.6 Sec.

Operating Specifications
Operating Weight	52000 kg

Dimensions
Overall Length	11847 mm
Max. Digging Depth	137 mm
Loader Bucket Breakout Force	40278 kgf
Bucket Capacity	6.5-12 m³
Static Tipping Load	38900 kg
Wheelbase	4550 mm
Ground Clearance	480 mm
