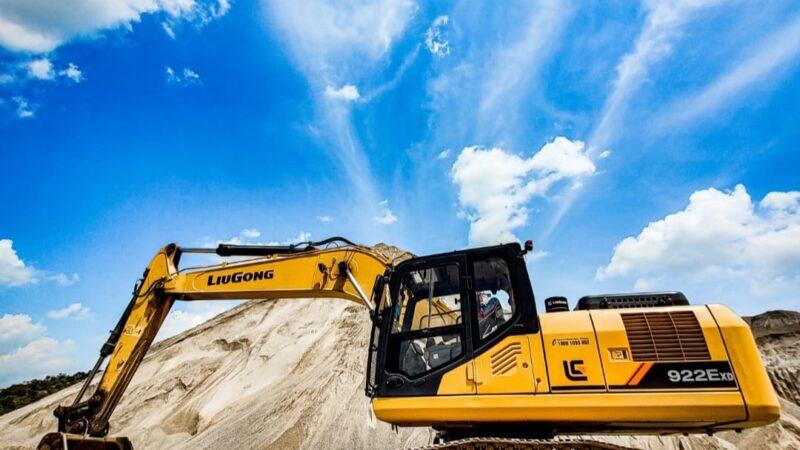

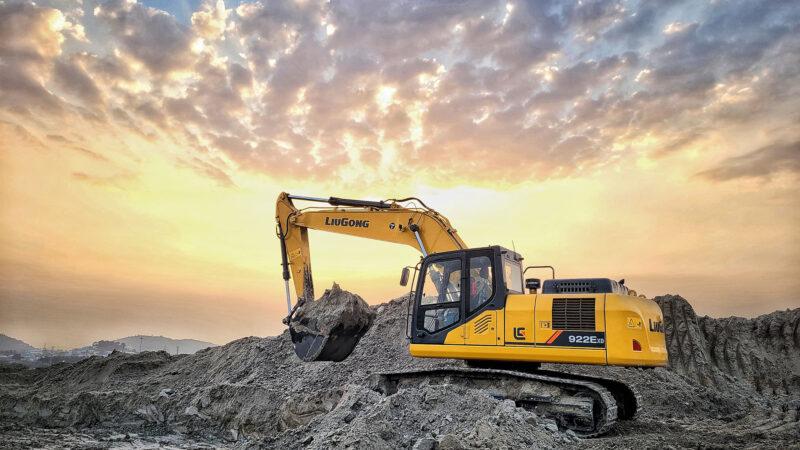

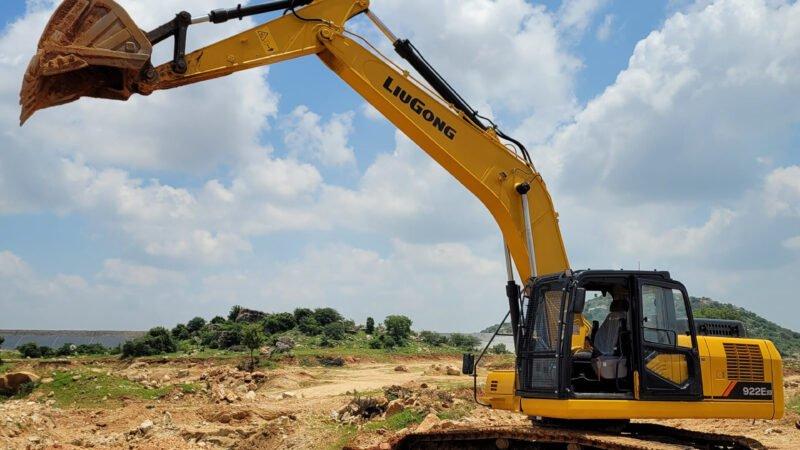

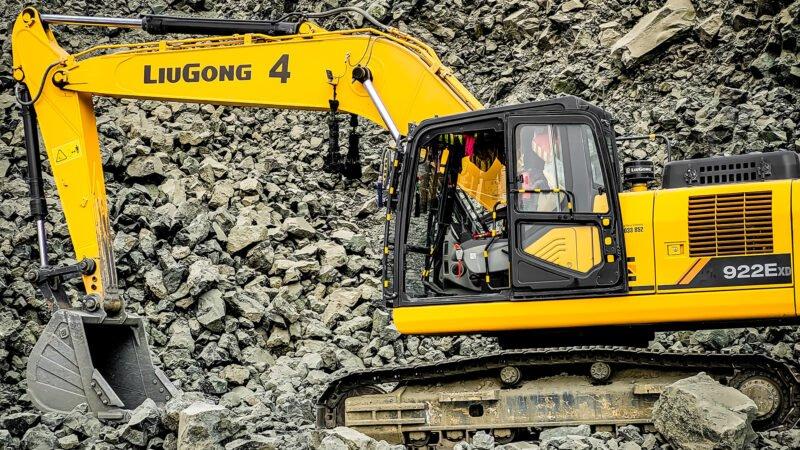

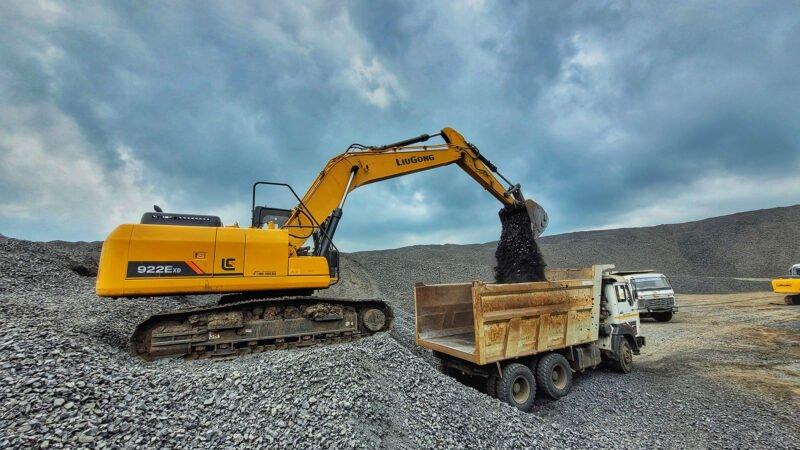

Liugong 922E XD

Liugong's Medium Excavator 922E XD is a durable and adaptable equipment designed for a wide range of excavation activities. The 922E XD is powered by a powerful 148 HP engine that runs at 2,000 rpm. With a substantial working weight of 22,000 kg, the 922E XD provides stability and longevity. The 922E XD can dig to a maximum depth of 6,100 mm, making it suitable for a variety of excavation applications. The 922E XD's basic bucket capacity of 1.0 m³ allows for efficient material handling. The 922E XD produces a significant torque of 626 Nm at 1,300 rpm, assuring strong performance and improved digging capabilities. Whether you're working on construction projects, landscaping, or site development, the 922E XD is your trustworthy companion to achieve best outcomes.

Liugong 922E XD Features

Engine
Make	CUMMINS	Engine Model	6BTAA5.9
Engine Gross Power	148 hp @ 2000 rpm	Max. Engine Torque	626 Nm @ 1300 rpm
Displacement	5.9 L	Aspiration	Turbocharged, CAC
Gradeability	(35°) 70%

Hydraulic System
Main Pump max. Oil Flow	2 x 224 LPM	Pilot Pump max. Oil Flow	19 LPM

Relief Valve Setting
Implement Circuit	34.3/37.3 MPa	Pilot Circuit	3.9 MPa

Travel System
Travel Circuit	34.3 MPa	Travel Speed	(5.1/3.0) Km/h

Swing System
Swing Circuit	28.5 MPa	Swing Speed	12 rpm
Swing Torque	68591 N.m	Swing Motor	Axial Piston Motor
Swing Reduction	Planetary Gear	Swing Bearing	Lubrication Grease Bathed
Swing Drive	4,6 L	Min. Swing Radius	3064 mm

Dimensions
HD Bucket Capacity	1.0 m³	GP Bucket Capacity	1.15 m³
Light Duty Bucket Capacity	1,25 m³	Boom Length	5710 mm
Arm Length	2400 mm	Bucket Digging Force	158 kN
Arm Digging Force	125 kN

Service Refill Capacity
Fuel Tank	420 L	Engine Oil	20 L
Hydraulic Tank	180 L

Drive
Final Drive	3.4 x 2 L	Max. Drawbar Pull	212 KN
Drive Motor	Axial Piston Motor	Drive Reduction	Planetary Gear

Undercarriage
Track Shoe Each Side	46	Track Guard	2
Shoe Width	600 mm	Bottom Rollers Each Side	7
Top Rollers Each Side	2	Undercarriage Length	4460 mm

Electrical System
Voltage	24 V	Battery	12 V, 100Ahx2
Working Lights	5

Weight and Ground Pressure
Operating Weight	22600 kg

Weight and Ground Pressure
Shoe Ground Pressure	48.2 kPa

Working Range
Max. Digging Reach	9328 mm	Max. Digging Reach on Ground	9136 mm
Max. Digging Depth	6100 mm	Max. Digging Depth 2.44m (8')	5820 mm
Max. Vertical Wall Depth	4408 mm	Max. Cutting Height	9464 mm
Max. Dumping Height	6832 mm

Engine
Make	CUMMINS
Engine Model	6BTAA5.9
Engine Gross Power	148 hp @ 2000 rpm
Max. Engine Torque	626 Nm @ 1300 rpm
Displacement	5.9 L
Aspiration	Turbocharged, CAC
Gradeability	(35°) 70%

Hydraulic System
Main Pump max. Oil Flow	2 x 224 LPM
Pilot Pump max. Oil Flow	19 LPM

Relief Valve Setting
Implement Circuit	34.3/37.3 MPa
Pilot Circuit	3.9 MPa

Travel System
Travel Circuit	34.3 MPa
Travel Speed	(5.1/3.0) Km/h

Swing System
Swing Circuit	28.5 MPa
Swing Speed	12 rpm
Swing Torque	68591 N.m
Swing Motor	Axial Piston Motor
Swing Reduction	Planetary Gear
Swing Bearing	Lubrication Grease Bathed
Swing Drive	4,6 L
Min. Swing Radius	3064 mm

Dimensions
HD Bucket Capacity	1.0 m³
GP Bucket Capacity	1.15 m³
Light Duty Bucket Capacity	1,25 m³
Boom Length	5710 mm
Arm Length	2400 mm
Bucket Digging Force	158 kN
Arm Digging Force	125 kN

Service Refill Capacity
Fuel Tank	420 L
Engine Oil	20 L
Hydraulic Tank	180 L

Drive
Final Drive	3.4 x 2 L
Max. Drawbar Pull	212 KN
Drive Motor	Axial Piston Motor
Drive Reduction	Planetary Gear

Undercarriage
Track Shoe Each Side	46
Track Guard	2
Shoe Width	600 mm
Bottom Rollers Each Side	7
Top Rollers Each Side	2
Undercarriage Length	4460 mm

Electrical System
Voltage	24 V
Battery	12 V, 100Ahx2
Working Lights	5

Weight and Ground Pressure
Operating Weight	22600 kg

Weight and Ground Pressure
Shoe Ground Pressure	48.2 kPa

Working Range
Max. Digging Reach	9328 mm
Max. Digging Reach on Ground	9136 mm
Max. Digging Depth	6100 mm
Max. Digging Depth 2.44m (8')	5820 mm
Max. Vertical Wall Depth	4408 mm
Max. Cutting Height	9464 mm
Max. Dumping Height	6832 mm
