Komatsu WA470-6A
Komatsu WA470-6A

Komatsu WA470-6A

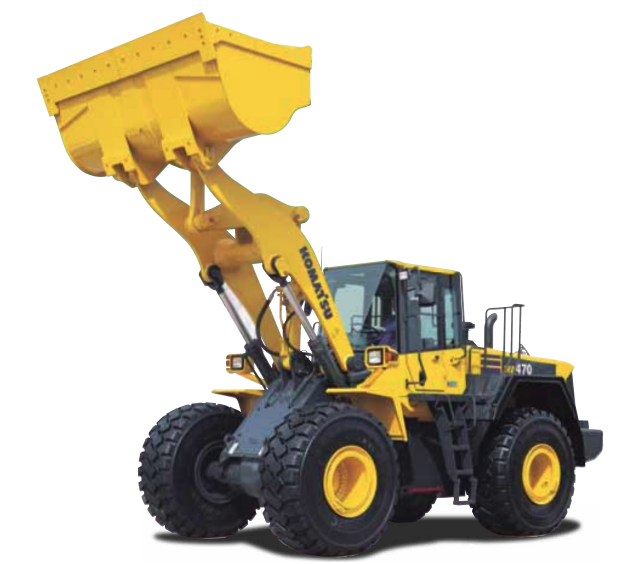

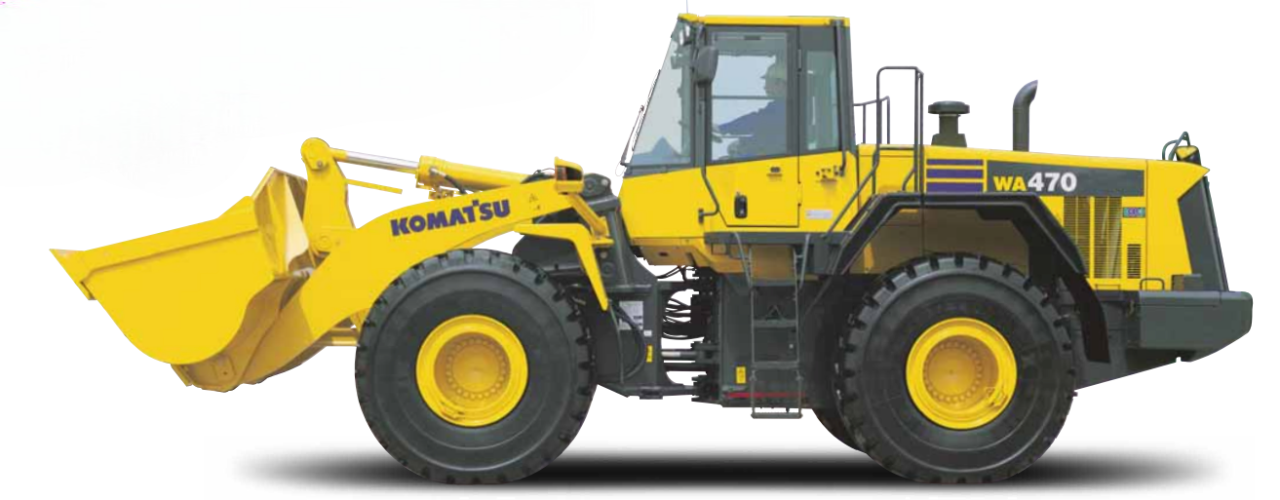

Komatsu WA470-6A Wheel Loader is engineered to excel in various environments, making WA470-6A Wheel Loader the preferred choice for heavy-duty equipment needs in construction and mining operations. Its robust design, combined with advanced features, ensures efficient material handling and enhanced productivity, whether loading, hauling, or performing other critical tasks. For those seeking a reliable and powerful wheel loader to tackle tough jobs in heavy-duty equipment, construction vehicles, or specialized industries like quarrying and agriculture, the Komatsu WA470-6A stands out as an exceptional choice, offering enhanced efficiency and performance for even the most demanding applications.


Komatsu WA470-6A features impressive specifications that enhance its capability in heavy-duty applications. WA470-6A Wheel Loader has an Engine Gross Power of 273 hp, providing ample power for efficient operation. The Bucket Capacity ranges from 3.6 to 5.2 m³, allowing for versatile material handling depending on the task at hand. With an Operating Weight of 22,880 to 23,110 kg, Komatsu WA470-6A Wheel Loader offers stability and durability in rugged environments. Additionally, the Wheelbase measures 3,450 mm, contributing to its excellent maneuverability and overall performance in construction and mining operations.


Komatsu WA470-6A Wheel Loader is distinguished by several unique selling points that enhance its performance and usability. The Dual-Mode Engine Power Select System offers flexibility by allowing operators to choose between maximum power and fuel efficiency based on specific job requirements, optimizing performance for various tasks. Its Automatic Transmission with Mode Select System enhances operator comfort and productivity by automatically adjusting to changing load conditions, ensuring smooth and efficient operation. The Wet Multi-Disc Brakes provide superior stopping power and reliability under heavy loads, utilizing a fully hydraulic braking system that enhances safety and control. Additionally, the Equipment Management Monitoring System delivers real-time data on machine performance, enabling proactive maintenance and reducing downtime, ultimately increasing productivity.

Komatsu WA470-6A Key Specifications

Komatsu WA470-6A Features

Engine

Model Komatsu SAA6D125E-5
Engine Gross Power 273 hp(204 kW) @ 2000 RPM
Displacement 11.04 L

Transmission

Transmission Type Full-Powershift, Contershaft Type
Max. Forward Speed 33.4 km/h
Max. Reverse Speed 34.7 km/h
Torque Converter 3-element, Single-Stage, Single-Phase

Axles

Front Axle Type Fixed, Semi-Floating
Rear Axle Type Center-Pin Support, Semi-Floating
Oscillation Angle 26°

Drive and Brake

Service Brake Hydraulically actuated, Wet Disc Brakes
Parking Brake Wet Disc Brake

Steering System

Steering Type Articulated Type, Full-Hydraulic Power Steering
Turning Radius 6630 mm

Hydraulic Cycle Times

Raise Time 5.4 Sec.
Dump Time 1.6 Sec.
Lower Time 3.7 Sec.

Refill Capacity

Fuel Tank Capacity 413 L
Transmission Oil Capacity 65 L
Axle Oil Capacity 116 L
Engine Oil Capacity 38 L

Operating Specifications

Operating Weight 22880-23110 kg

Dimensions

Overall Length 8755-9210 mm
Max. Digging Depth 80-100 mm
Loader Bucket Breakout Force 16825-22433 kgf
Bucket Capacity 3.6-5.2 m³
Static Tipping Load 18160-18370 mm
Wheelbase 3450 mm
Ground Clearance 525 mm
