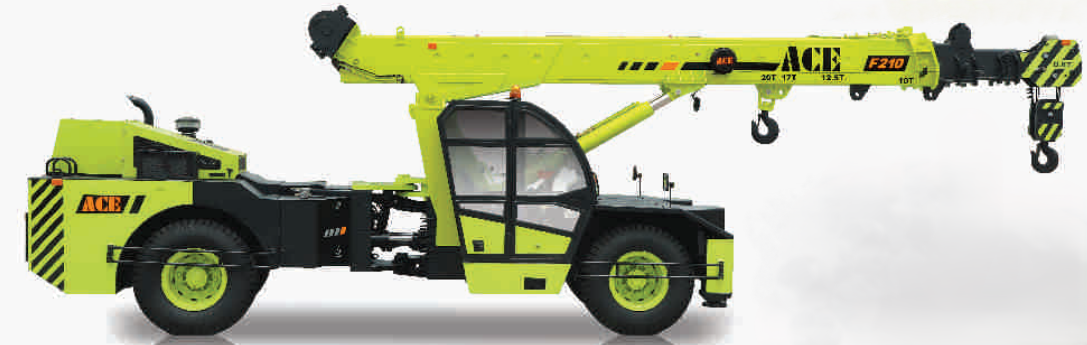

ACE F 210

ACE F 210 Nextgen Hydraulic Crane offers remarkable versatility, making it ideal for a variety of applications. In the power and utilities sector, F 210 Nextgen Hydraulic Crane plays a crucial role in infrastructure development and maintenance. For mining operations, the crane’s powerful lifting capabilities enable efficient handling of heavy materials. In ports and shipping, it enhances loading and unloading processes, ensuring timely operations. Additionally, its strong performance makes ACE F 210 a valuable asset for demolition tasks, where precision and reliability are paramount. ACE F 210 boasts an impressive lifting capacity of 20 tons and is equipped with a high-performance engine that delivers 101 HP of gross power. With a maximum height of 20.1 meters and an effective operating height of 19,855 kg, F 210 Nextgen Hydraulic Crane provides the strength and versatility required for complex lifting tasks. Its robust design ensures consistent performance, making ACE F 210 suitable for challenging environments and large-scale operations. ACE F 210 Nextgen Hydraulic Crane stands out with its innovative features focused on safety and efficiency. ACE F 210 includes hose failure protection to ensure operational integrity during lifting tasks. F 210 Nextgen Hydraulic Crane is equipped with a heavy-duty synchromesh transmission featuring an auxiliary gearbox with hi/low options, allowing for precise control during operations. Safety brakes on the hoist enhance lifting security, while dual circuit brakes provide additional reliability, ensuring safe operation even in the most demanding conditions.

ACE F 210 Features

Engine
Model	E483 CRDi	Type	4 Cylinder, water cooled, Turbo charged engine with electronic control unit
Engine Gross Power	101 Hp @ 2200 rpm	No. of Cylinders	4

Electrical System
Battery	12 V, 100 Ah Negative earth	Voltage	12 V

Transmission
Transmission Type	Heavy duty Synchromesh	Clutch Type	Heavy duty, single, dry friction type hydraulic clutch
Max. Travel Speed	38 km/h

Steering System
Steering Type	Full power orbitrol steering	Articulation Angle	40°
Turning Radius	7.6 m

Drive and Brake
Drive Type	4 Wheel Drive	Service Brake	Fully pneumatically brakes on front and rear wheels
Parking Brake	Pneumatically operated, fail safe type	Gradeability	40%

Tyres
Front Tyre Size	12.00x20-18 PR (4 Nos.)	Rear Tyre Size	12.00x20-18 PR (4 Nos.)

Axles
Front Axle Type	Rigidly mounted on the chassis	Rear Axle Type	Mounted with 2 nos. Leaf springs

Hoist and Winch system
Hoist Rope Diameter	13 mm	Hoist Single Line Speed	35 m/min.

Dimensions
Max. Lifting Capacity	20 T

Engine
Model	E483 CRDi
Type	4 Cylinder, water cooled, Turbo charged engine with electronic control unit
Engine Gross Power	101 Hp @ 2200 rpm
No. of Cylinders	4

Electrical System
Battery	12 V, 100 Ah Negative earth
Voltage	12 V

Transmission
Transmission Type	Heavy duty Synchromesh
Clutch Type	Heavy duty, single, dry friction type hydraulic clutch
Max. Travel Speed	38 km/h

Steering System
Steering Type	Full power orbitrol steering
Articulation Angle	40°
Turning Radius	7.6 m

Drive and Brake
Drive Type	4 Wheel Drive
Service Brake	Fully pneumatically brakes on front and rear wheels
Parking Brake	Pneumatically operated, fail safe type
Gradeability	40%

Tyres
Front Tyre Size	12.00x20-18 PR (4 Nos.)
Rear Tyre Size	12.00x20-18 PR (4 Nos.)

Axles
Front Axle Type	Rigidly mounted on the chassis
Rear Axle Type	Mounted with 2 nos. Leaf springs

Hoist and Winch system
Hoist Rope Diameter	13 mm
Hoist Single Line Speed	35 m/min.

Dimensions
Max. Lifting Capacity	20 T
