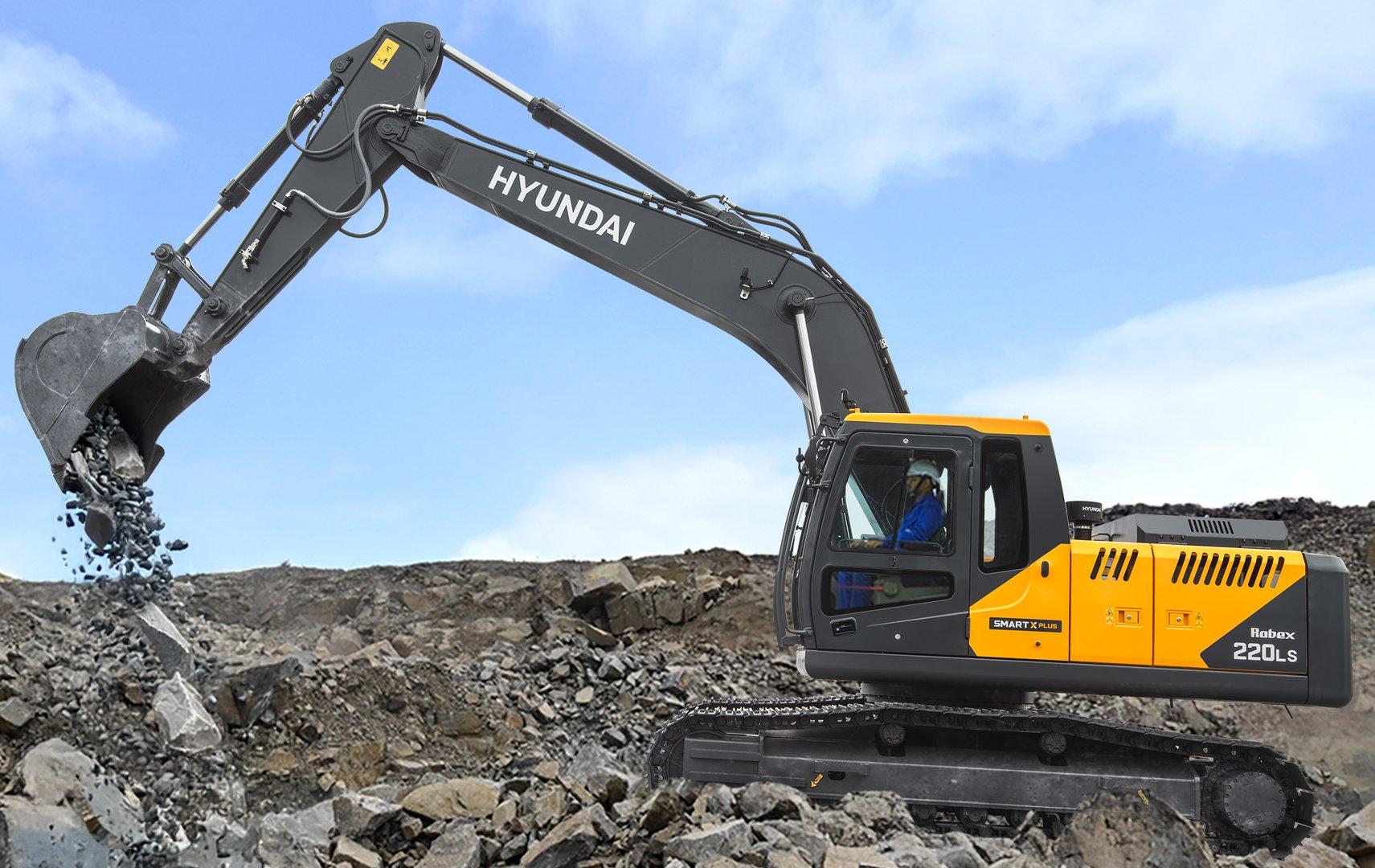

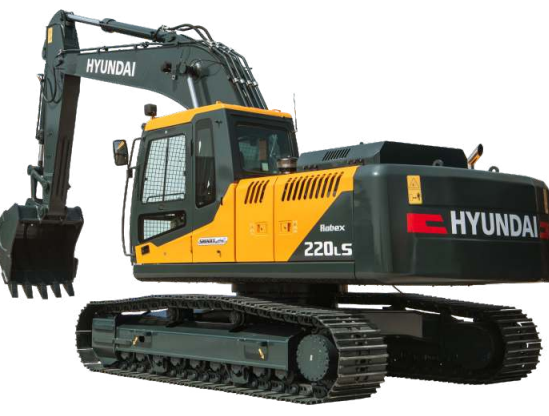

Hyundai R220LS SMART PLUS

Hyundai R220LS Smart Plus Hydraulic Excavator is engineered for versatility, making it a vital asset across various industries. It excels in landscaping, efficiently managing site preparation, grading, and material transport to deliver professional results in landscape projects. In road construction, it effectively tackles excavation and earthmoving tasks, ensuring timely project completion. For utilities and pipeline installation, this R220LS Smart Plus Hydraulic Excavator provides reliable trenching and pipeline laying capabilities, enhancing infrastructure development with precision. Additionally, its strong digging and scooping capabilities make Hyundai R220LS Smart Plus well-suited for dredging tasks in environmental and water management projects. Hyundai R220LS Smart Plus boasts impressive specifications, including an engine gross power of 148 hp, providing robust performance for demanding tasks. With an arm length ranging from 2400 to 2920 mm, it offers enhanced reach and versatility for various applications. The R220LS Smart Plus Hydraulic Excavator delivers a bucket digging force of 15,500 kgf, ensuring efficient material handling and earthmoving capabilities. Additionally, it features a bucket capacity of 1.05 m³, allowing for substantial load management in a single operation, making Hyundai R220LS Smart Plus Hydraulic Excavator an essential tool for construction, landscaping, and infrastructure projects. Hyundai R220LS Smart Plus Hydraulic Excavator is designed for versatility and efficiency in various applications, powered by an efficient engine that ensures consistent performance for quick and effective task completion. With a notable bucket digging force and a bucket capacity of 1.05 m³, R220LS Smart Plus Hydraulic Excavator excels in material handling and earthmoving operations. Unique features include a 2 Variable Displacement Piston Type Hydraulic Main Pump for optimized flow and pressure control, a Multi Wet Disc Swing Brake for reliable operation and enhanced safety, and an Axial Piston Motor with Automatic Brake Type Swing Motor for superior performance and stability. Additionally, the Planetary Reduction Gear Type Reduction System improves torque and efficiency, providing the necessary power for demanding tasks.

Hyundai R220LS SMART PLUS Features

Engine
Model	Cummins 6BTAA-5.9C	Engine Gross Power	148 HP(110 KW) @ 2000 rpm
Max. Torque	624 Nm @ 1300 rpm	Displacement	5.8 L

Undercarriage
No. of Shoes	49	No. of Upper Rollers	2
No. of Bottom Rollers	9	Track Shoe Width	600 mm

Swing System
Max. Swing Speed	11 rpm	Min. Swing Radius	3740 mm

Drive and Brake
Max. Travel Speed	5.3 km/h	Gradeability	70% (35°)

Hydraulic System
Main Pump Type	2 Variable Displacement Piston Pumps	Main Pump max. Oil Flow	2 x 220 LPM
Swing Circuit	240 kg/cm²	Travel Circuit	330 kg/cm²

Refill Capacity
Fuel Tank Capacity	340 L	Engine Oil and Filter	21 L
Hydraulic System	290 L	Hydraulic Tank Capacity	180 L

Weight and Ground Pressure
Operating Weight	22000 kg	Ground Pressure	0.47 kg/cm²

Dimensions
Overall Length	9570 mm	Overall Height	3110 mm
Bucket Capacity	1.05 m³	Track Gauge	2390 mm
Ground Clearance	480 mm

Working Ranges
Max. Dumping Height	6520 mm	Max. Digging Depth	6220 mm
Max. Vertical Wall Digging Depth	5720 mm	Max. Digging Reach	9500 mm
Max. Digging Reach at Ground Level	9330 mm	Boom Length	5680 mm
Arm Length	2400mm	Bucket Digging Force	15500 kgf
Arm Crowding Force	12000 kgf

Engine
Model	Cummins 6BTAA-5.9C
Engine Gross Power	148 HP(110 KW) @ 2000 rpm
Max. Torque	624 Nm @ 1300 rpm
Displacement	5.8 L

Undercarriage
No. of Shoes	49
No. of Upper Rollers	2
No. of Bottom Rollers	9
Track Shoe Width	600 mm

Swing System
Max. Swing Speed	11 rpm
Min. Swing Radius	3740 mm

Drive and Brake
Max. Travel Speed	5.3 km/h
Gradeability	70% (35°)

Hydraulic System
Main Pump Type	2 Variable Displacement Piston Pumps
Main Pump max. Oil Flow	2 x 220 LPM
Swing Circuit	240 kg/cm²
Travel Circuit	330 kg/cm²

Refill Capacity
Fuel Tank Capacity	340 L
Engine Oil and Filter	21 L
Hydraulic System	290 L
Hydraulic Tank Capacity	180 L

Weight and Ground Pressure
Operating Weight	22000 kg
Ground Pressure	0.47 kg/cm²

Dimensions
Overall Length	9570 mm
Overall Height	3110 mm
Bucket Capacity	1.05 m³
Track Gauge	2390 mm
Ground Clearance	480 mm

Working Ranges
Max. Dumping Height	6520 mm
Max. Digging Depth	6220 mm
Max. Vertical Wall Digging Depth	5720 mm
Max. Digging Reach	9500 mm
Max. Digging Reach at Ground Level	9330 mm
Boom Length	5680 mm
Arm Length	2400mm
Bucket Digging Force	15500 kgf
Arm Crowding Force	12000 kgf
