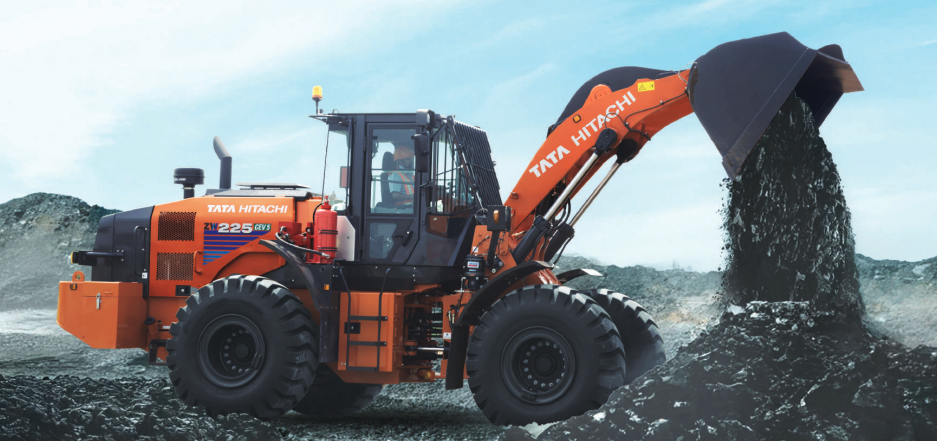

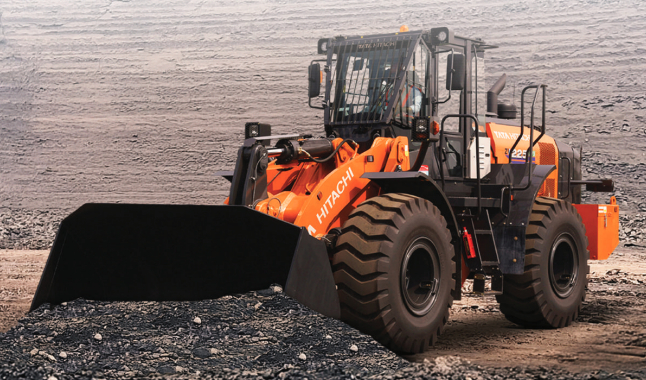

Tata Hitachi ZW 225 Wheel Loader is designed for high performance in various applications like construction, mining, waste management, landscaping, and agriculture. If you're seeking a powerful and fuel-efficient wheel loader, the Tata Hitachi ZW 225 is the suitable option for your needs and requirements. This wheel loader's powerful engine and simple controls make your work easier while ensuring fuel efficiency. Its features are helpful in all types of tasks, including rough terrain work, material transportation, agricultural work, and more. Tata Hitachi ZW 225 is equipped with a powerful 225 HP engine and an operating weight range of 17,650 to 18,180 KG. This wheel loader offers a versatile bucket capacity range of 2.5 m³ to 5.0 m³, ensuring high performance and fuel efficiency. With a maximum operating height range of 5,390 mm to 5,885 mm, it provides unmatched reliability and performance for long-term use in tough conditions. Tata Hitachi ZW 225 Wheel Loader is equipped with advanced features like the HPCR Fuel System, ECM (Engine Mount Electronic Control Module), and DOC + SCR + DPF emission control technology. These innovations ensure optimal fuel efficiency, significantly reduce emissions, and meet the latest environmental standards, making the ZW 225 Wheel Loader a top choice for environmentally conscious operations.
Engine | |||
---|---|---|---|
Model | Cummins QSB6.7 | Engine Gross Power | 225 Hp(168 KW) @ 2200 rpm |
Max. Torque | 1000 Nm @ 1300 rpm | Displacement | 6.702 L |
Electrical System | |||
---|---|---|---|
Battery | 2x12 V |
Transmission | |||
---|---|---|---|
Max. Forward Speed | 36.9 km/h | Max. Reverse Speed | 27.4 km/h |
Transmission Type | Torque converter, counter shaft type power shift with computer-controlled automatic shift | Torque Converter | Three element, single stage, single phase |
Steering System | |||
---|---|---|---|
Steering Type | Articulated frame steering | Turning radius outside of wheels | 5770 mm |
Drive and Brake | |||
---|---|---|---|
Service Brake | Inboard mounted fully hydraulic 4 wheel wet disc brake | Parking Brake | Switch operated spring applied, hydraulically released, dry disc type with external output shaft |
Tyres | |||
---|---|---|---|
Tyre Size | 23.5-25-20PR |
Hydraulic System | |||
---|---|---|---|
Main Pump | Variable displacement axial plunger pump | Main Pump Flow Rate | 271 lpm @ 2170 rpm |
Raise Time | 5.2 Sec. | Dump Time | 1.3 Sec. |
|
Axles | |||
---|---|---|---|
Front Axle Type | Fixed to the front frame | Rear Axle Type | Trunnion support |
Refill Capacity | |||
---|---|---|---|
Fuel Tank Capacity | 255 L | Engine Oil Capacity | 25 L |
Transmission Oil Capacity | 27 L | Hydraulic Oil Capacity | 171 L |
Operating Weight | |||
---|---|---|---|
Operating Weight | 17650 - 18180 kg |
Dimensions | |||
---|---|---|---|
Static Tipping Load | 14360 - 14960 kg | Overall Length | 8345 - 8640 mm |
Bucket Capacity | 2.5 - 5.0 m³ | Loader Bucket Break-out Force | 12307 - 18581 kgf |
|
Engine | |
---|---|
Model | Cummins QSB6.7 |
Engine Gross Power | 225 Hp(168 KW) @ 2200 rpm |
Max. Torque | 1000 Nm @ 1300 rpm |
Displacement | 6.702 L |
Electrical System | |
---|---|
Battery | 2x12 V |
Transmission | |
---|---|
Max. Forward Speed | 36.9 km/h |
Max. Reverse Speed | 27.4 km/h |
Transmission Type | Torque converter, counter shaft type power shift with computer-controlled automatic shift |
Torque Converter | Three element, single stage, single phase |
Steering System | |
---|---|
Steering Type | Articulated frame steering |
Turning radius outside of wheels | 5770 mm |
Drive and Brake | |
---|---|
Service Brake | Inboard mounted fully hydraulic 4 wheel wet disc brake |
Parking Brake | Switch operated spring applied, hydraulically released, dry disc type with external output shaft |
Tyres | |
---|---|
Tyre Size | 23.5-25-20PR |
Hydraulic System | |
---|---|
Main Pump | Variable displacement axial plunger pump |
Main Pump Flow Rate | 271 lpm @ 2170 rpm |
Raise Time | 5.2 Sec. |
Dump Time | 1.3 Sec. |
Lower Time | 2.9 Sec. |
Total Hydraulic Cycle time | 9.8 Sec. |
|
Axles | |
---|---|
Front Axle Type | Fixed to the front frame |
Rear Axle Type | Trunnion support |
Refill Capacity | |
---|---|
Fuel Tank Capacity | 255 L |
Engine Oil Capacity | 25 L |
Transmission Oil Capacity | 27 L |
Hydraulic Oil Capacity | 171 L |
Operating Weight | |
---|---|
Operating Weight | 17650 - 18180 kg |
Dimensions | |
---|---|
Static Tipping Load | 14360 - 14960 kg |
Overall Length | 8345 - 8640 mm |
Bucket Capacity | 2.5 - 5.0 m³ |
Loader Bucket Break-out Force | 12307 - 18581 kgf |
Max. Digging Depth | 120 mm |
Wheelbase | 3290 mm |
Ground Clearance | 450 mm |
|
