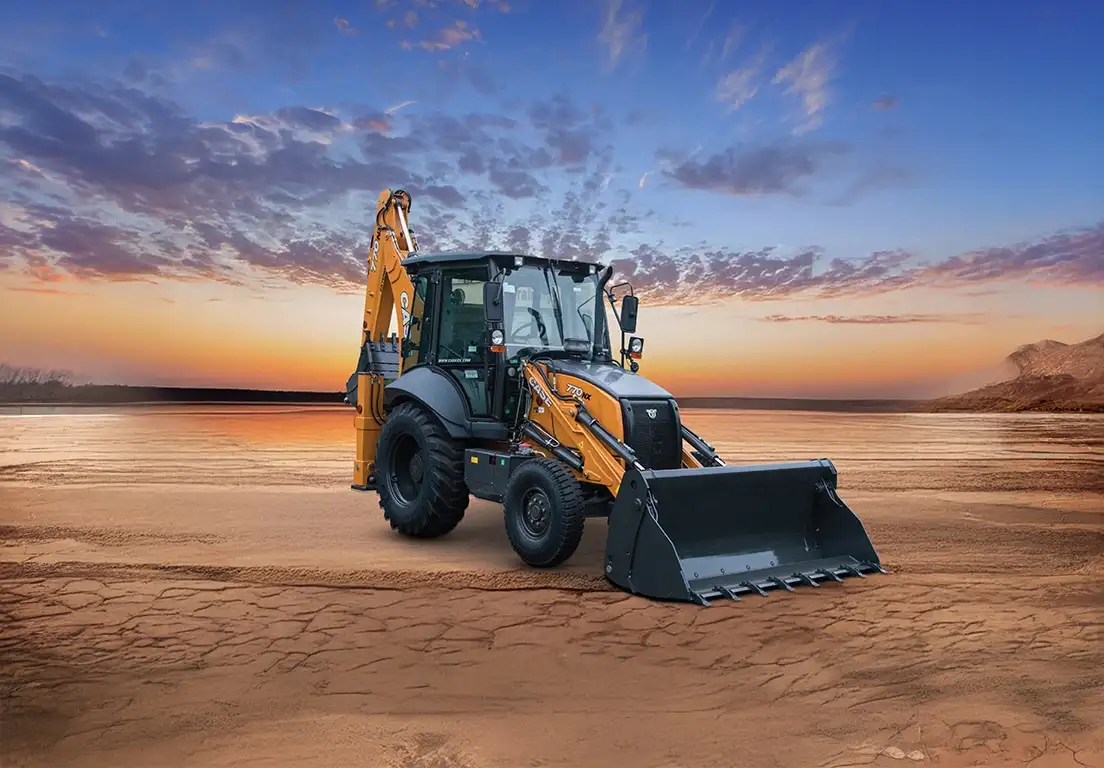

Case 770 NX Backhoe Loader

The Case 770 NX backhoe loader is designed for a wide range of applications such as utility installation, quarrying, mining, landscaping, and road construction. Additionally, it handles various tasks like transporting materials, moving agricultural feed, small-scale demolition, and many more.

The Case 770 NX, combined with a CNH (India) BS5 diesel engine, provides high performance and fuel efficiency. Its advanced gear pump-type hydraulic system offers smooth operations without sacrificing performance.

Its powerful engine generates 74 HP at 2200 rpm and 375 Nm at 1400 rpm of high torque, delivers lower fuel consumption, and enhancing productivity.

*Ex-Showroom Price

Coming Soon

Case 770 NX Key Specifications

Case 770 NX Features

Dump Height 2.73 m

Loadover Height 3.3 m

Reach at Ground 1.98 m

Max. Reach at Full Height 1.19 m

Arm Loader Breakout Force 5450 kgf

Loader Bucket Capacity 1.1 m³

Max. Digging Depth 4.70 m

Bucket Pin Height 3.6 m

Reach at Full Height (Bucket Dumped) 0.76 m

Below Ground Level Dig Depth 0.11 m

Rollback at Ground 33°

Bucket Loader Breakout Force 5650 kgf

Max. Working Height 5.7 m

Max. Loadover Height 3.8 m

Bucket Rotation Power 204° & 160°

Side Reach to Center Line of Machine 5.90 m

Dipper tearout Force (Arm Crowding Force) 3900 kgf

Engine

Make CNH (India)

Model F28-CF28A001AU

Max. Torque 375 Nm @ 1400 rpm

Engine

Engine Gross Power 54.6 KW(74 HP) @ 2200 rpm

Electrical System

Battery 12 V (110 Ah)

Transmission

Max. Forward Speed 34 km/l

Max. Reverse Speed 11.5 km/l

Transmission Type Power shuttle synchromesh transmission

Steering System

Steering Type Power steering

Drive and Brake

Service Brake Hydraulic foot operated, 2 disc per side

Parking Brake Mechanically actuated caliper type brake pack on rear axle input shaft

Tyres

Front Tyre Size 9*16 - 16 PR (2WD), 12.5*18 - 12 PR (4WD)

Rear Tyre Size 16.9*28 - 12 PR (Std), 14*25 - 20PR/12PR (HD)

Hydraulic System

Main Pump Flow 143 lpm

Hydraulic System Relief Pressure 250 bar

Axles

Front Axle Type CNH PS1300 (2WD), Carraro NH 26.17M (4WD)

Rear Axle Type Carraro 28.32M

Refill Capacity

Fuel Tank Capacity 129 L

Engine Oil Capacity 8.5 L

Transmission Oil Capacity 18 L(2WD), 20 L(4WD)

Rear Axle Oil Capacity 17.1 L

Dimensions

Dump Height 2.73 m

Loadover Height 3.3 m

Reach at Ground 1.98 m

Max. Reach at Full Height 1.19 m

Arm Loader Breakout Force 5450 kgf

Loader Bucket Capacity 1.1 m³

Max. Digging Depth 4.70 m

Bucket Pin Height 3.6 m

Reach at Full Height (Bucket Dumped) 0.76 m

Below Ground Level Dig Depth 0.11 m

Rollback at Ground 33°

Bucket Loader Breakout Force 5650 kgf

Max. Working Height 5.7 m

Max. Loadover Height 3.8 m

Bucket Rotation Power 204° & 160°

Side Reach to Center Line of Machine 5.90 m

Dipper tearout Force (Arm Crowding Force) 3900 kgf

Top Applications of Case 770 NX

1. Utility Installation

The Case 770 NX is the ideal solution for various utility installations. It can effectively install underground cables, pipelines, and other utility infrastructure.

2. Quarrying Operations

Built from high-strength steel and a robust design, the Case 770 NX backhoe loader handles heavy loads and tough quarry environments, providing easy material transport in any terrain.

3. Demolition

The Case 770 NX offers maximised productivity and fuel efficiency while reducing environmental impact. Its multi-bucket options make it the perfect partner for demolition tasks.

4. Landscaping

The Case 770 NX offers efficient earthmoving and levelling operations. Its robust structure is a suitable option for landscaping tasks by providing accurate ground operations.

5. Forest Work

The Case 770 NX backhoe loader's strong structure handles various forest tasks, including logging and clearing. It delivers optimal power and precision in forest activities.

Why Choose MachineWale for Case 770 NX in India?

MachineWale offers a one-stop solution for buying the Case 770 NX backhoe loader in India. You can get the full specifications and compare tools for comparing the 770 NX with different backhoe loader models. Also, you get verified dealer listings by region and city. The platform is designed to save time and get comprehensive information on any construction equipment.
