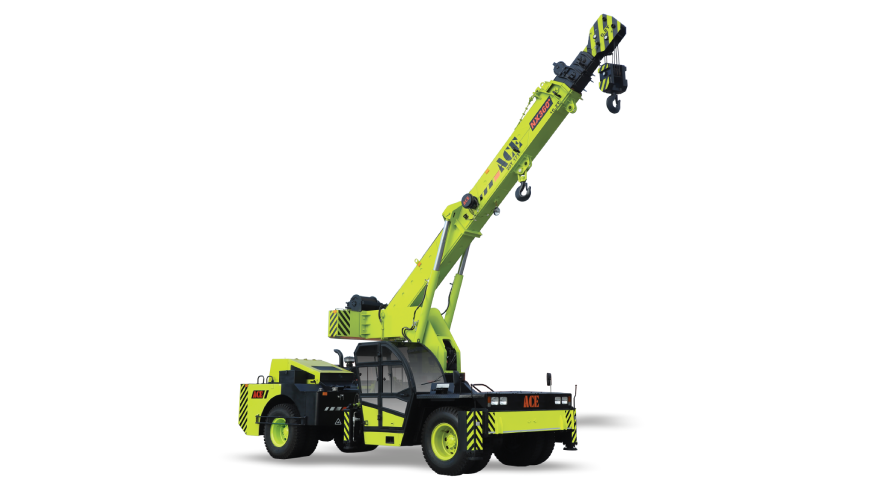

ACE NX 360° 20T

ACE NX 360° 20T Nextgen Hydraulic Crane is exceptionally versatile, making it suitable for a wide array of applications. In construction sites, NX 360° 20T Nextgen Hydraulic Crane excels at lifting and moving heavy materials, contributing to efficient project timelines. For infrastructure projects, the crane supports the assembly and maintenance of vital structures. In the realm of industrial maintenance, ACE NX 360° 20T proves invaluable for lifting machinery and components, facilitating repairs and upgrades. In the oil and gas industry, the crane’s robust lifting capabilities make it essential for handling heavy equipment and materials in challenging environments. ACE NX 360° 20T boasts an impressive lifting capacity of 20 tons and is powered by a reliable Volvo Eicher CEV Stage IV Diesel Engine, delivering 101 HP of gross power. NX 360° 20T Nextgen Hydraulic Crane achieves a maximum height of 19.2 meters and operates effectively at an operating height of 20,400 kg, ensuring exceptional lifting performance for various tasks. Designed with safety and efficiency in mind, ACE NX 360° 20T provides the necessary power and stability for even the heaviest loads. ACE NX 360° 20T Nextgen Hydraulic Crane is equipped with several innovative features that enhance its functionality and safety. NX 360° 20T Nextgen Hydraulic Crane includes front and side proximity sensors for improved situational awareness, allowing operators to navigate tight spaces with confidence. ACE NX 360° 20T also incorporates dual circuit brakes, providing enhanced stopping power and reliability during operation. Additionally, the hose failure protection system ensures that hydraulic lines remain intact, reducing the risk of accidents and increasing safety on the job site.

ACE NX 360° 20T Features

Engine
Model	E483 CRDi	Type	4 Cylinder, water cooled, turbo charged engine with electronic control unit
Engine Gross Power	101 HP @ 2200 rpm	No. of Cylinders	4

Electrical System
Battery	12 V, Negative earth	Voltage	12 V

Transmission
Transmission Type	Heavy duty, synchromesh	Clutch Type	Heavy duty, single, dry friction type hydraulic clutch
Max. Travel Speed	38 km/h

Steering System
Steering Type	Full power orbitrol steering	Articulation Angle	40°
Turning Radius	7.6 m

Drive and Brake
Drive Type	4 Wheel drive	Service Brake	Fully pneumatic brakes on front and rear wheels
Parking Brake	Pneumatically operated, fail safe type	Gradeability	40%

Tyres
Front Tyre Size	12.00x20-18 PR (4 Nos.)	Rear Tyre Size	12.00x20-18 PR (4 Nos.)

Axles
Front Axle Type	Rigidly mounted on the chassis	Rear Axle Type	Mounted with 2 Nos. leaf springs

Hoist and Winch System
Hoist Rope Diameter	13 mm	Hoist Single Line Speed	40 m/min.

Dimensions
Max. Lifting Capacity	20 T

Engine
Model	E483 CRDi
Type	4 Cylinder, water cooled, turbo charged engine with electronic control unit
Engine Gross Power	101 HP @ 2200 rpm
No. of Cylinders	4

Electrical System
Battery	12 V, Negative earth
Voltage	12 V

Transmission
Transmission Type	Heavy duty, synchromesh
Clutch Type	Heavy duty, single, dry friction type hydraulic clutch
Max. Travel Speed	38 km/h

Steering System
Steering Type	Full power orbitrol steering
Articulation Angle	40°
Turning Radius	7.6 m

Drive and Brake
Drive Type	4 Wheel drive
Service Brake	Fully pneumatic brakes on front and rear wheels
Parking Brake	Pneumatically operated, fail safe type
Gradeability	40%

Tyres
Front Tyre Size	12.00x20-18 PR (4 Nos.)
Rear Tyre Size	12.00x20-18 PR (4 Nos.)

Axles
Front Axle Type	Rigidly mounted on the chassis
Rear Axle Type	Mounted with 2 Nos. leaf springs

Hoist and Winch System
Hoist Rope Diameter	13 mm
Hoist Single Line Speed	40 m/min.

Dimensions
Max. Lifting Capacity	20 T
