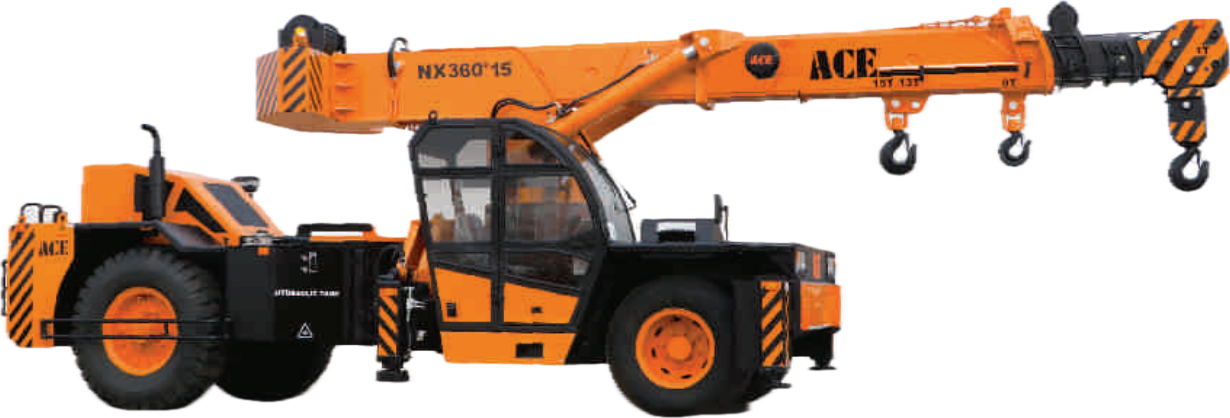

ACE NX 360° 15T

ACE NX 360° 15T Nextgen Hydraulic Crane is versatile and suitable for a wide range of applications. In dismantling, NX 360° 15T Nextgen Hydraulic Crane provides the necessary lifting power for safely removing structures and equipment. For wind turbine installation, this crane is essential for handling heavy components, ensuring efficient and safe assembly. In railway maintenance, ACE NX 360° 15T effectively supports the lifting of tracks and other heavy elements, contributing to timely repairs and upgrades. Additionally, in the power and utilities sector, the crane aids in the installation and maintenance of large equipment, ensuring smooth operations. ACE NX 360° 15T boasts a lifting capacity of 15 tons and is powered by a durable TATA 4 Cylinder Diesel Engine, delivering an impressive 76 HP of gross power. NX 360° 15T Nextgen Hydraulic Crane achieves a maximum height of 18.2 meters and operates efficiently at an operating height of 18,300 kg, providing the strength and versatility needed for various lifting operations. ACE NX 360° 15T's design ensures stability and reliability, making it ideal for handling substantial loads in diverse environments. ACE NX 360° 15T Nextgen Hydraulic Crane stands out with its advanced features tailored for optimal performance and safety. NX 360° 15T Nextgen Hydraulic Crane is equipped with full power Orbitrol steering utilizing twin hydraulic double-acting cylinders, offering excellent maneuverability and control. Its hydraulic gear-type tandem pump ensures efficient hydraulic operations, while the spark arrestor enhances safety during use by preventing potential fire hazards. These innovative features not only improve the ACE NX 360° 15T's functionality but also ensure the safety of the operator and the worksite.

ACE NX 360° 15T Features

Engine
Model	None	Type	4 cylinder, water cooled, diesel engine
Engine Gross Power	76 HP(56 KW) @ 2200 rpm	Max. Torque	None
No. of Cylinders	4

Electrical System
Battery	12 V, Negative earth	Voltage	12 V

Transmission
Transmission Type	Heavy duty, synchromesh	Clutch Type	Heavy duty, single, dry friction type hydraulic clutch
Max. Travel Speed	40 km/h

Steering System
Steering Type	Full power orbitrol steering	Articulation Angle	40°
Turning Radius	7.4 m

Drive and Brake
Drive Type	4x2	Service Brake	Fully Pneumatic brakes on front and rear wheels
Parking Brake	Pneumatically operated, fail safe type	Gradeability	40%

Tyres
Front Tyre Size	11.00x20-16 PR (4 Nos.)	Rear Tyre Size	14.00x25-20 PR (2 Nos.)

Axles
Front Axle Type	Rigidly Mounted on the chassis	Rear Axle Type	Mounted with 2 Nos. leaf springs

Hoist and Winch System
Hoist Rope Diameter	13 mm	Hoist Single Line Speed	50 m/min.

Dimensions
Max. Lifting Capacity	15 T

Engine
Model	None
Type	4 cylinder, water cooled, diesel engine
Engine Gross Power	76 HP(56 KW) @ 2200 rpm
Max. Torque	None
No. of Cylinders	4

Electrical System
Battery	12 V, Negative earth
Voltage	12 V

Transmission
Transmission Type	Heavy duty, synchromesh
Clutch Type	Heavy duty, single, dry friction type hydraulic clutch
Max. Travel Speed	40 km/h

Steering System
Steering Type	Full power orbitrol steering
Articulation Angle	40°
Turning Radius	7.4 m

Drive and Brake
Drive Type	4x2
Service Brake	Fully Pneumatic brakes on front and rear wheels
Parking Brake	Pneumatically operated, fail safe type
Gradeability	40%

Tyres
Front Tyre Size	11.00x20-16 PR (4 Nos.)
Rear Tyre Size	14.00x25-20 PR (2 Nos.)

Axles
Front Axle Type	Rigidly Mounted on the chassis
Rear Axle Type	Mounted with 2 Nos. leaf springs

Hoist and Winch System
Hoist Rope Diameter	13 mm
Hoist Single Line Speed	50 m/min.

Dimensions
Max. Lifting Capacity	15 T
